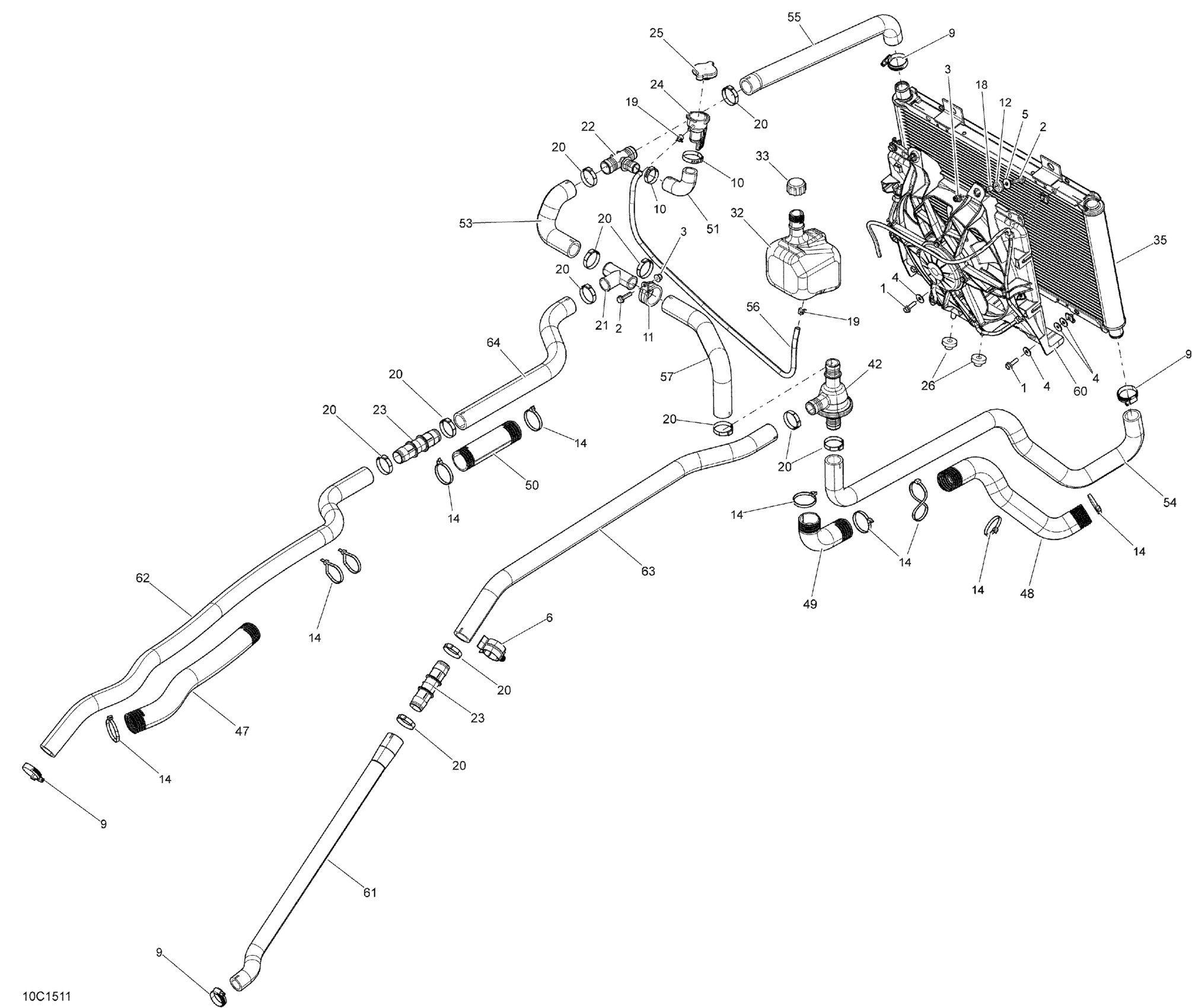

Can-Am Maverick MAX 1000_XDS-DPS, 2015 01- Cooling System _10C1511 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 20

207662044

$2.00

2

Hex. Flange Screw M6 X 25

207662534

$2.11

3

Flange Elastic Nut M6

233261434

$4.44

4

Flat Washer 6 mm

234062410

$0.77

5

Flat Washer

250200082

$0.42

6

Retainer

275500590

$9.69

9

Norma Gear Clamp

293650098

$4.44

10

Crimp Clamp

293650099

$4.29

11

Hose Retainer

293650218

$9.39

12

Grommet

709000582

$4.69

14

Tie Wrap 368 mm

293750008

$1.04

18

Bushing

293900105

$7.65

19

Spring Clamp

414554800

$0.88

20

Gear Clamp

509000162

$7.29

21

T-Fitting

509000219

$15.89

22

T-Fitting

509000372

$10.33

23

Fitting

509000914

$7.59

24

Filler Neck

709200179

$18.49

25

Radiator Pressure Cap

709200207

$25.49

26

Grommet

709200285

$9.69

32

Coolant Tank Ass'y

709200624

$27.99

33

Tank Cap

709200587

$5.40

35

Radiator

709200395

$370.99

42

Thermostat

709200406

$98.99

47

Tubing 35 MM 1000MM Long

219704428

$10.99

48

Tubing 35 MM 1000MM Long

219704428

$10.99

49

Tubing 35 MM 1000MM Long

219704428

$10.99

50

Tubing 35 MM 1000MM Long

219704428

$10.99

51

Filler Neck Hose

709200439

$10.99

53

Hose

709200443

$14.99

54

Radiator Inlet Hose

709200444

$65.49

55

Outlet Hose

709200445

$24.99

56

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

57

Hose

709200447

$22.49

60

Fan Ass'y

709200564

$244.99

61

Pump Hose

709200496

$27.99

62

Hose

709200497

$48.99

63

Pump Hose

709200519

$27.99

64

Intermediate Hose

709200520

$24.99
