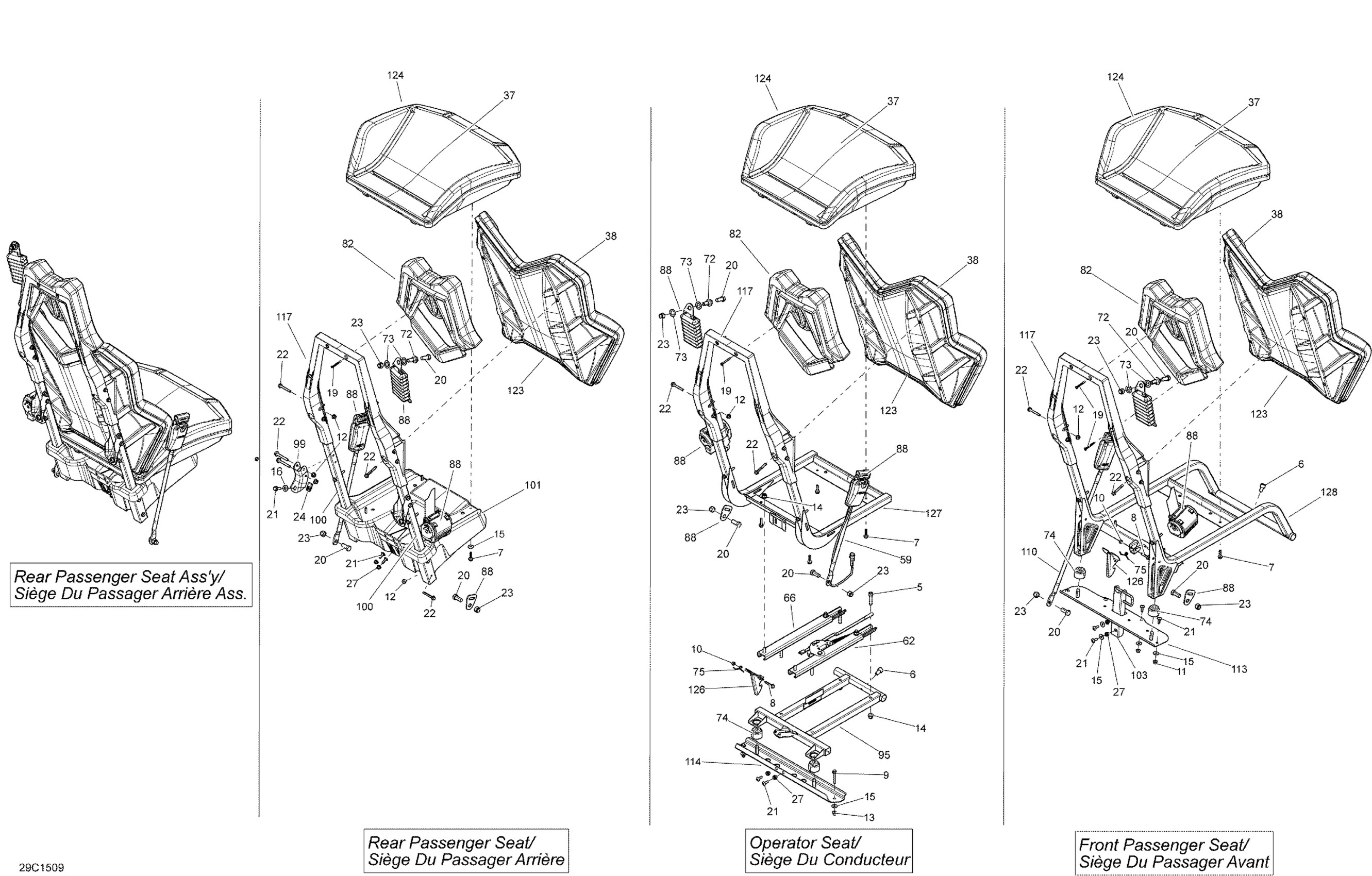

Can-Am Maverick MAX 1000_STD_XRS-DPS, 2015 09- Seat _29C1509 Diagram

#

Description
Price

5

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

6

Socket Screw M10 X 16

205501644

$4.29

7

Hex. Flange Screw M6 X 25

207562544

$1.69

8

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

9

Hex. Flange Screw M6 X 45

207664544

$1.46

10

Hex. Elastic Stop Nut M6

232561600

$1.15

11

Hex. Flange Nut M6

233061414

$1.68

12

Hex. Elastic Flange Nut M6

233161464

$1.01

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

14

Hex. Flange Elastic Nut M8

233281414

$1.47

15

Stainless Steel Flat Washer

234062670

$2.11

16

Conical Spring Washer M8

234281474

$1.48

19

HEX. WASHER HEAD SCREW PT K50 X 40 - Call your local BRP dealership

250000490

Unavailable

20

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

21

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

22

Hex. Flange Screw M6

250000672

$2.11

23

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$7.09

24

Panel Nut M6 X 1.0

250100171

$4.09

27

Threaded Insert M6 X 1.0

250100242

Unavailable

37

Seat Cover

708001333

$73.99

37

SEAT COVER - Call your local BRP dealership | Black/Yellow

708001084

Unavailable

37

Seat Cover

708001103

$117.99

38

BACKREST COVER - Call your local BRP dealership | Model-White XRS, XRS-DPS

708001331

$90.99

38

BACKREST COVER - Call your local BRP dealership | Black/Yellow

708001080

Unavailable

38

Backrest Cover

708000675

$97.99

59

Driver Buckle Side

708002061

$70.99

62

RH Rail

708001739

$35.99

66

LH Rail

708000848

$53.99

72

Safety Belt Screw

708000890

$3.79

73

Position Washer

708000891

$1.29

74

Rubber Bumper

708001671

$2.89

75

Spring

708000921

$1.29

82

Head Rest

708001074

$104.99

88

Safety Belt

708001302

$280.99

95

Seat Member

708001174

$80.99

99

Rear Anchor

708001474

$19.99

100

LATERAL TUBE - Call your local BRP dealership

708001196

Unavailable

101

Seat Support

708001198

$68.99

103

Anchor

708001213

$24.49

110

Passenger Buckle Side

708001206

$67.99

113

Support

708001804

$49.99

114

Seat Support

708001214

$67.99

117

Seat Support

708001245

$28.99

123

Backrest Ass'y | Includes 2 to 3

703500945

$399.99

123

BACKREST ASSEMBLY - Call your local BRP dealership | Model-White XRS, XRS-DPS

708001338

Unavailable

123

KIT BACKREST ASS'Y, X MODEL - Call your local BRP dealership | Black/Yellow

703500946

Unavailable

124

Cushion Ass'y | Includes 4 to 5

703500943

$349.99

124

Cushion Assembly | Model-White XRS, XRS-DPS

708001339

$249.99

124

KIT CUSHION ASS'Y, MODEL X - Call your local BRP dealership | Includes 4 to 5, X model

703500942

Unavailable

126

Seat Latch

708001355

$2.59

127

Operator Seat Frame

708001356

$329.99

128

Passenger Seat Frame

708001357

$319.99
