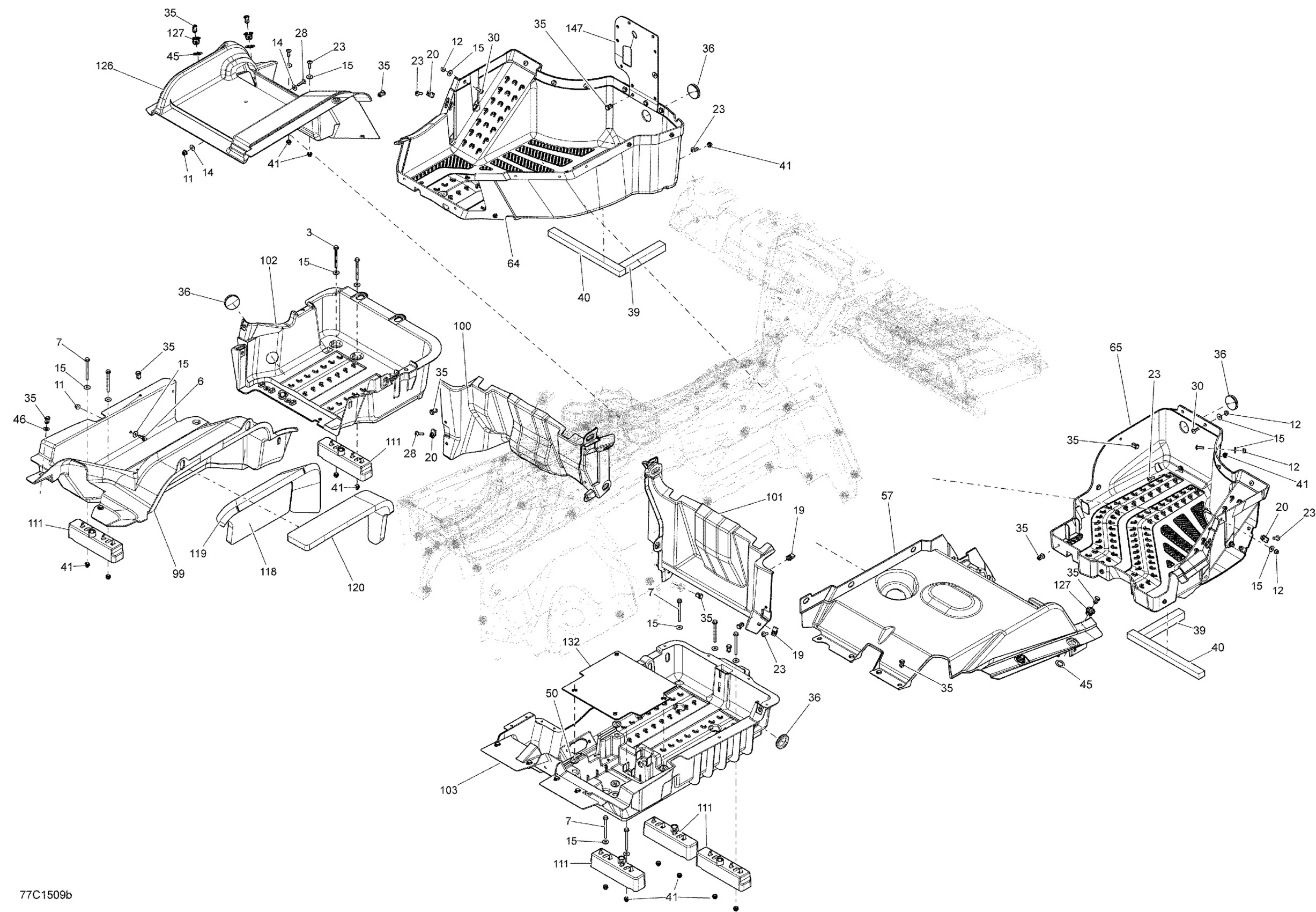

Can-Am Maverick MAX 1000_STD_XRS-DPS, 2015 09- Cab Interior Bottom Pan_77C1509b Diagram

#

Description
Price

3

Hex. Flange Screw M6 X 70

207667056

$4.44

6

Hex. Flange Screw M6 X 20

207662054

$1.01

7

Hex. Flange Screw M6 X 70

207667056

$4.44

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

12

Hex. Flange Elastic Nut M6

233261494

$1.58

14

Flat Washer 6 mm

234062410

$0.77

15

Stainless Steel Flat Washer

234062670

$2.11

19

Panel Nut M6 X 1.0

250100198

$2.11

20

Panel Nut M6 X 1.0

250100198

$2.11

23

Torx Screw M6 X 20

250000722

$1.68

28

Torx Screw M6 x 25

250000284

$2.11

30

Torx Screw M6 X 20

250000712

$2.11

35

Tuflok Plastic Rivet

293150230

$1.47

36

Rubber Cover

293250242

$6.99

39

SEAL TRAY - Call your local BRP dealership

293250319

Unavailable

40

SEAL TRAY - Call your local BRP dealership

293250319

Unavailable

41

Threaded Insert M6 X 1.0

250100242

Unavailable

45

Washer

503189273

$3.28

46

Washer

506151252

$3.17

50

Grommet

705003264

$4.09

57

RH Under Seat Plate

707900006

$114.99

64

LH Lower Floor

707900022

$269.99

65

RH Lower Floor

707900023

$194.99

99

LH REAR BOTTOM PAN - Call your local BRP dealership

707900081

Unavailable

100

LH Rear Upper Floor Cover

707900082

$53.99

101

Seat Cover

707900083

$46.49

102

LH MID FLOOR - Call your local BRP dealership

707900084

Unavailable

103

RH Lower Rear Floor

707900670

$194.99

111

Support Plate

707900099

$16.49

118

INSULATION_ACOUSTIC - Call your local BRP dealership

707900116

Unavailable

119

INSULATION_ACOUSTIC - Call your local BRP dealership

707900117

Unavailable

120

INSULATION_ACOUSTIC - Call your local BRP dealership

707900118

Unavailable

126

Under Seat Cover

707900130

$81.99

127

Insert

707900133

$2.89

132

Battery Cover

707900163

$18.49

147

Deflector | XRS-DPS

707900204

$17.49
