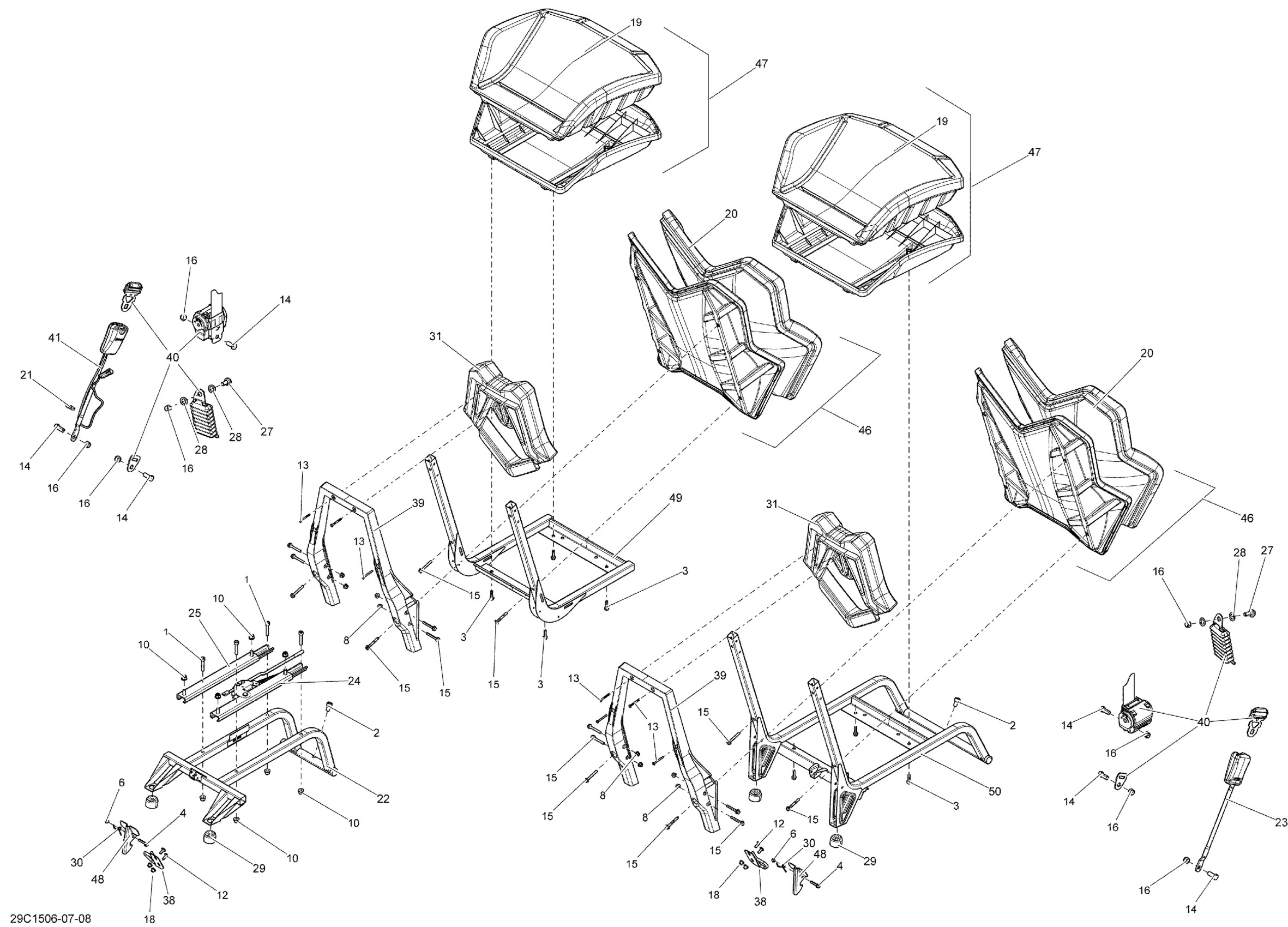

Can-Am Maverick 1000_XXC, 2015 09- Seat _29C1508 Diagram

#

Description
Price

1

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

2

Socket Screw M10 X 16

205501644

$4.29

3

Hex. Flange Screw M6 X 25

207562544

$1.69

4

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

6

Hex. Elastic Stop Nut M6

232561600

$1.15

8

Hex. Elastic Flange Nut M6

233161464

$1.01

10

Hex. Flange Elastic Nut M8

233281414

$1.47

12

Torx Screw M6 X 16

250000223

$2.11

13

HEX. WASHER HEAD SCREW PT K50 X 40 - Call your local BRP dealership

250000490

Unavailable

14

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

15

Hex. Flange Screw M6

250000672

$2.11

16

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$7.09

18

Threaded Insert M6 X 1.0

250100242

Unavailable

19

Seat Cover

708001333

$73.99

19

SEAT COVER - Call your local BRP dealership | Black/Yellow

708001084

Unavailable

20

BACKREST COVER - Call your local BRP dealership | Model-White XRS, XRS-DPS

708001331

$90.99

20

BACKREST COVER - Call your local BRP dealership | Black/Yellow

708001080

Unavailable

21

Tie Wrap 368 mm

293750008

$1.04

22

Seat Member

708000667

$56.99

23

Passenger Buckle Side

708000844

$53.99

23

PASSENGER BUCKLE SIDE - Call your local BRP dealership | Europe

708000857

Unavailable

24

RH Rail

708001739

$35.99

25

LH Rail

708000848

$53.99

27

Safety Belt Screw

708000890

$3.79

28

Position Washer

708000891

$1.29

29

Rubber Bumper

708001671

$2.89

30

Spring

708000921

$1.29

31

Head Rest

708001074

$104.99

38

RETAINING ROD - Call your local BRP dealership

708001238

$11.99

39

Seat Support

708001245

$28.99

40

SAFETY BELT - Call your local BRP dealership | Europe

708001130

Unavailable

40

Safety Belt

708001302

$280.99

41

Driver Buckle Side | Europe

708000856

$123.49

41

Driver Buckle Side

708002061

$70.99

46

KIT BACKREST ASS'Y, X MODEL - Call your local BRP dealership | Black/Yellow

703500946

Unavailable

46

BACKREST ASSEMBLY - Call your local BRP dealership | Model-White XRS, XRS-DPS

708001338

Unavailable

47

Cushion Assembly | Model-White XRS, XRS-DPS

708001339

$249.99

47

KIT CUSHION ASS'Y, MODEL X - Call your local BRP dealership | Includes 4 to 5, X model

703500942

Unavailable

48

Seat Latch

708001355

$2.59

49

Operator Seat Frame

708001356

$329.99

50

Passenger Seat Frame

708001357

$319.99
