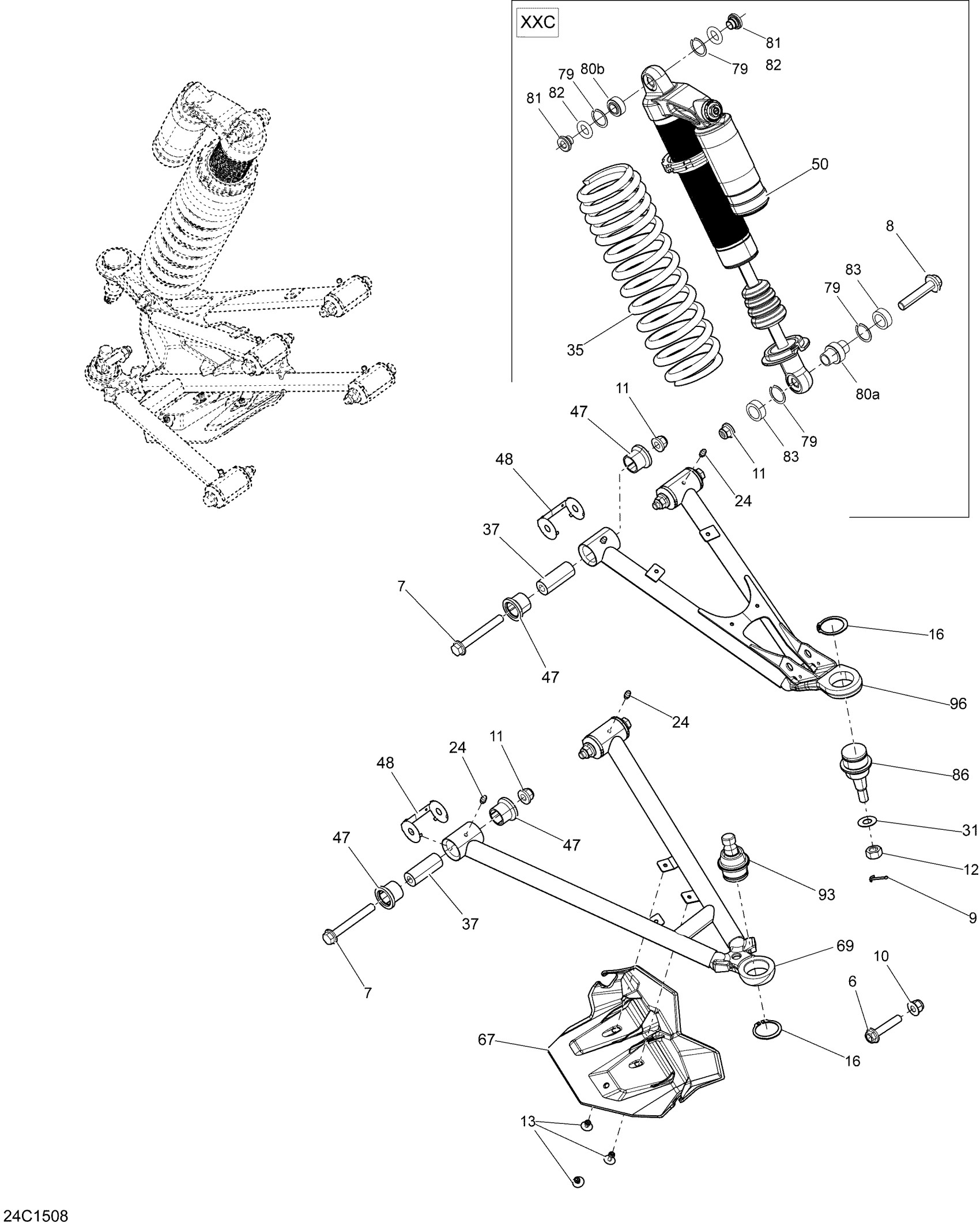

Can-Am Maverick 1000_XXC, 2015 07- Front Suspension _24C1508 Diagram

#

Description
Price

6

Hex. Flange Screw M10 X 50

207605044

$5.29

7

Hex Flange Screw M10 X 80

207608046

$6.69

8

Hex. Flange Screw M12 X 60

207626046

$7.41

9

Cotter Pin

211400017

$0.33

10

Hex. Flange Elastic Nut M10

233201414

$1.58

11

Hex. Flange Elastic Nut M10

233201436

$2.11

12

Nut M12

250100099

$2.09

13

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

16

Circlip

293370035

$2.64

24

Grease Fitting

408200700

$3.49

31

Hardened Washer

706200281

$2.85

35

YELLOW FRONT SPRING - Call your local BRP dealership | Model-XXC Black

706201715

$94.99

35

RED FRONT SPRING - Call your local BRP dealership | Model-XXC White

706201825

Unavailable

37

Sleeve

706201590

$11.99

47

Suspension Arm Bushing

706204409

$9.10

48

Wear Plate

706201660

$0.95

50

Front Shock

706202249

$649.99

67

LH Joint Protector

706202808

$9.90

67

RH Joint Protector

706202809

$9.90

69

LH Front Lower Arm

706201726

$190.99

69

RH Front Lower Arm

706201727

$190.99

79

Retaining Ring

715900252

$12.49

80a

Spherical Bearing

715900330

$84.99

80b

Spherical Bearing

715900266

$82.99

81

Internal Bushing

715900267

$26.49

82

O-Ring Bushing

715900268

$14.75

83

Protector

715900331

$13.99

86

Ball Joint

706202044

$35.99

93

Ball Joint

706202045

$35.99

96

YELLOW FRONT UPPER ARM - Call your local BRP dealership | Model-XXC Black

706202094

Unavailable
