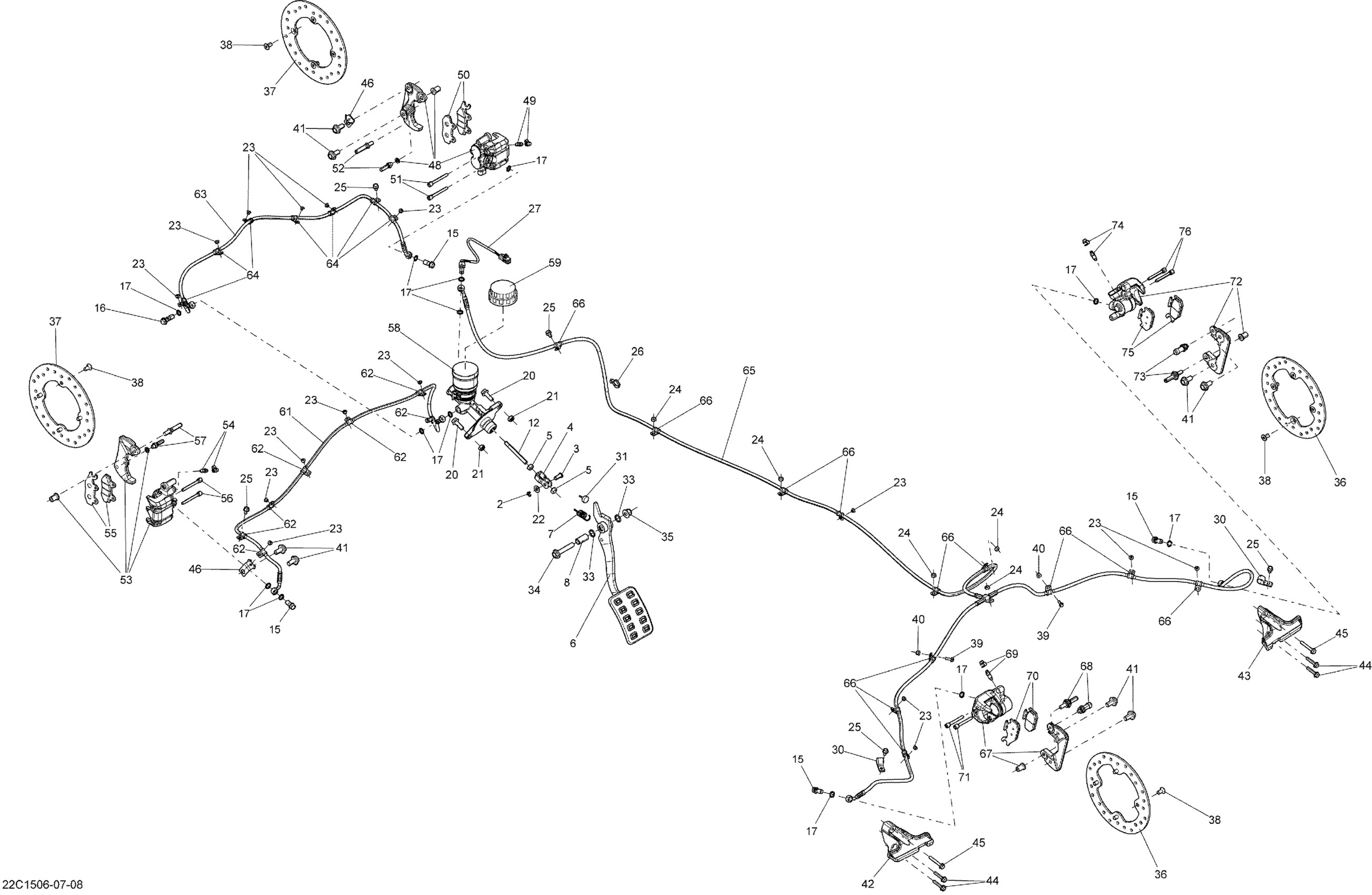

Can-Am Maverick 1000_XXC, 2015 06- Brakes _22C1508 Diagram

#

Description
Price

2

Cotter Pin

371800700

$1.01

3

Pin | Not Shown

250400058

$8.29

4

Yoke | Not Shown

705601142

$15.36

5

Hex. Nut M8

232081414

$0.72

6

Brake Pedal

705600724

$57.99

7

Brake Pedal Spring

705600792

$9.10

8

Inner Spacer

705600815

$11.60

12

Master Cylinder Rod

705600833

$20.49

15

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

16

Banjo Bolt

705600958

$6.35

17

Copper Washer

705601628

$4.44

20

Hex. Flange Screw M8 X 25

207682534

$2.11

21

Hex. Elastic Stop Nut M8

232581414

$0.56

22

Flat Washer M8

234081430

$2.11

23

Pop Rivet 3/16"

390402200

$0.35

24

Elastic Stop Nut M6

232561434

$1.99

25

Hex. Flange Screw M6 X 10

210261040

$1.48

26

Tie-Rap 180 mm

414115200

$0.11

27

Brake Switch

705601250

$59.49

30

Open Clamp

518321570

$7.69

31

Rubber Stopper

708000759

$4.19

33

O-Ring

293300144

$3.82

34

Hex. Flange Screw M10 X 55

207605544

$3.38

35

Hex. Flange Elastic Nut M10

233201414

$1.58

36

Disc Brake

705600999

$67.99

37

Disc Brake

705601178

$51.99

38

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

39

Hex. Forming Screw M5 X 16

210251650

$1.15

40

Flange Elastic Nut M5

233251434

$2.00

41

Hex. Flange Screw M10 X 20, Scotch Grip

250000601

$3.91

42

LH DEFLECTOR - Call your local BRP dealership

705601403

$13.99

43

RH DEFLECTOR - Call your local BRP dealership

705601404

Unavailable

44

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

45

Hex. Flange Screw M6 X 40, Scotch Grip

207564044

$4.44

46

Bracket

705601337

$2.69

48

RH Caliper | Includes 1 to 5

705600678

$317.99

49

Bleeding Screw

705600080

$16.87

50

RH Brake Pad Kit

715500336

$51.99

51

Sliding Pin Kit

715500337

$20.49

52

Spring Boot Bolt Kit

715500383

$17.59

53

LH Caliper | Includes 6 to 10

705600679

$317.99

54

Bleeding Screw

705600080

$16.87

55

LH Brake Pad Kit

715500335

$51.99

56

Sliding Pin Kit

715500337

$20.49

57

Spring Boot Bolt Kit

715500383

$17.59

58

Master Cylinder Ass'y | Includes 11 to 13

705601505

$244.99

59

Diaphragm Cap Kit

715500332

$29.49

61

LH FRONT FLEXIBLE HOSE ASS'Y - Call your local BRP dealership

705601219

Unavailable

62

Clamp

293650256

$5.49

63

RH FRONT FLEXIBLE HOSE ASS'Y - Call your local BRP dealership

705601220

Unavailable

64

Clamp

293650256

$5.49

65

Rear Flexible Hose

705601145

$163.99

66

Clamp

293650256

$5.49

67

LH Caliper Ass'y | Includes 70 to 70d

705601089

$328.49

68

Spring, Protector And Bolt Kit

715500384

$24.99

69

Bleeding Screw

705600080

$16.87

70

LH Brake Pad Kit

705600398

$51.99

71

Pin Set (2)

705600081

$20.49

72

RH Caliper Ass'y | Includes 80 to 80d

705601090

$328.49

73

Spring, Protector And Bolt Kit

715500384

$24.99

74

Bleeding Screw

705600080

$16.87

75

RH Brake Pad Kit

705601147

$51.99

76

Pin Set (2)

705600081

$20.49
