Description

Price

1

Hex. Flange Screw M6 X 25

207662544

$0.64

2

Flat Washer

224060201

$1.26

3

Quick Attach 90°

275500700

$16.49

4

Threaded Insert M6 X 1.0

250100242

Unavailable

8

Crimp Clamp, 15.3-706R

293650047

$3.29

9

Y-Fitting, 5/16''

293710136

$6.49

10

Rubber Washer

293830037

$2.68

29

Female Quick Fitting Ass'y

709000125

$15.49

30

Rollover Valve

709000413

$55.99

36

Fuel Cap | Except Europe

709000529

$28.49

37

Ring

709000274

$15.99

38

O-Ring

709000275

$18.10

39

FUEL CAP KIT - Call your local BRP dealership | Europe

715001124

Unavailable

42

Neoprene Pad

709000288

$13.99

44

NEOPRENE PAD - Call your local BRP dealership

709000289

Unavailable

45

Filter

709000330

$7.79

47

Polyurethane Hose 10000Mm Long

219704410

$56.99

48

Fuel Pump | Includes 5 to 6

709000759

$372.49

49

Was 709000163 Fuel Line

219704440

$28.99

55

Fuel Tank

709000753

$749.99

60

Tubing 16 Mm 1000Mm Long

219704408

$7.49

29a

Locking Clip

513033135

$5.89

48a

Fuel Pre-Filter Kit

709000389

$79.49

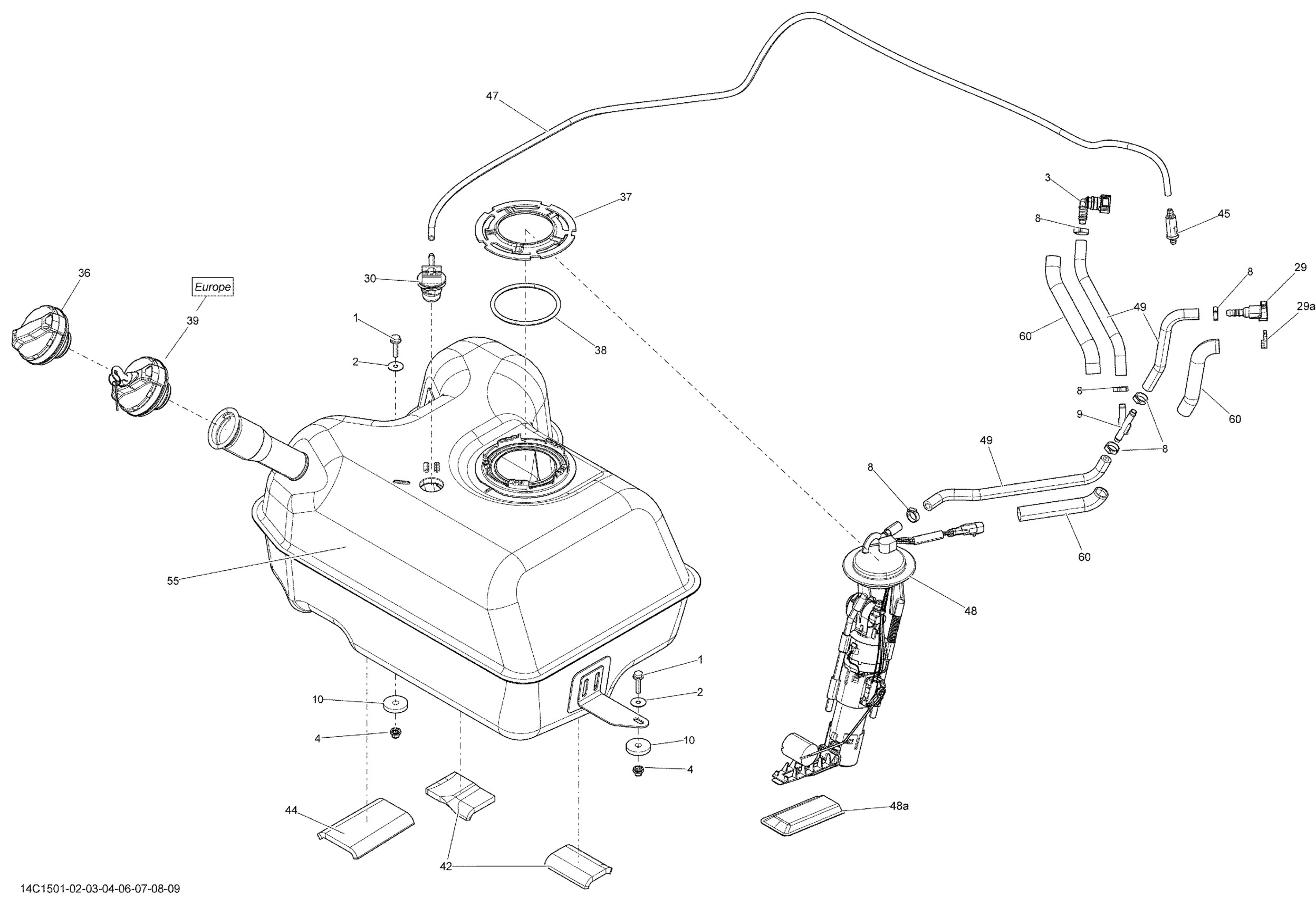

Can-Am Maverick 1000_XXC, 2015 02- Fuel System _14C1508 Diagram

Hex. Flange Screw M6 X 25

Flat Washer

Quick Attach 90°

Threaded Insert M6 X 1.0

Crimp Clamp, 15.3-706R

Y-Fitting, 5/16''

Rubber Washer

Female Quick Fitting Ass'y

Rollover Valve

Fuel Cap | Except Europe

Ring

O-Ring

FUEL CAP KIT - Call your local BRP dealership | Europe

Neoprene Pad

NEOPRENE PAD - Call your local BRP dealership

Filter

Polyurethane Hose 10000Mm Long

Fuel Pump | Includes 5 to 6

Was 709000163 Fuel Line

Fuel Tank

Tubing 16 Mm 1000Mm Long

Locking Clip

Fuel Pre-Filter Kit
