Description

Price

1

Socket Screw M10 x 30 | XT

205003044

$3.17

2

Hex. Screw M6 X 40

207064044

$1.48

3

HEX. SCREW M4 X 10 - Call your local BRP dealership | XT

207141044

Unavailable

4

Hex. Screw M4 X 25

207142544

$2.00

5

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

9

Hex. Flange Screw M6 X 20

207662044

$2.00

10

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

12

Hex. Nut M6

232061600

$1.15

13

Elastic Stop Nut M4

232541414

$0.58

15

Elastic Stop Nut M6

232561414

$0.55

16

Elastic Stop Nut M6

232561434

$1.99

18

Hex. Flange Elastic Nut M10

233201414

$1.58

19

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

20

Hex. Flange Elastic Nut M5

233251414

$1.04

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

22

Hex. Flange Elastic Nut M6

233261494

$1.58

23

Flat Washer M5

234051410

$0.53

25

Stainless Steel Flat Washer

234062670

$2.11

26

Lock Washer 4 mm

234141601

$1.15

28

Lock Washer Helical M6

234161601

$1.15

29

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

30

TORX SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership

235382046

$1.69

32

Phillips Screw K40 X 16

250000723

$0.98

33

Torx Screw K50 X 16

250000720

$1.69

35

Hex. Flange Screw M6 X 60

250000778

$4.44

37

Clevis Pin

250400021

$13.18

38

Cotter Pin

250400022

$9.69

39

Clip

270000141

$11.49

40

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

41

Diagnostic Connector

278002704

$19.49

43

Pop Rivet 3/16"

293150103

$0.55

45

Mount Dart

293730040

$1.04

47

Tie Wrap 368 mm

293750008

$1.04

98

Clip Tie-Rap

293750063

$8.75

99

Pop Rivet 3/16"

390402400

$0.35

100

Tie-Rap 180 mm

414115200

$0.11

107

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

110

Winch Hook Kit

705014949

$24.99

111

Winch | Package-XT, XTP

705008547

$739.99

113

WINCH CABLE GUIDE - Call your local BRP dealership | XT

715001119

Unavailable

114

CLAMP - Call your local BRP dealership

705006999

Unavailable

115

Winch Support

715001699

$143.49

116

U-Bolt M10

705203504

$13.24

119

Clip

710000992

$4.29

120

Winch Connector

710001023

$51.99

121

RH High Light Support

710001115

$5.29

121

LH High Light Support

710001036

$5.29

122

RH Low Light Support

710001094

$9.09

122

LH Low Light Support

710001037

$9.09

123

Connector Ass'y | XT, Includes 55 to 57

710001059

$9.10

126

RH Low Front Housing

710001081

$19.99

126

LH Low Front Housing

710001083

$19.99

127

RH Low Rear Housing

710001082

$12.99

127

LH Low Rear Housing

710001084

$12.99

130

RH High Front Housing

710001085

$19.99

130

LH High Front Housing

710001087

$19.99

131

RH High Rear Housing

710001086

$12.99

131

LH High Rear Housing

710001088

$12.99

134

Setting Screw

710001147

$12.71

137

Voltage Regulator | XT, XTP, LTD

710001191

$185.49

138

DC Outlet

710001248

$37.99

139

Starter Relay

710007777

$48.49

140

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

140a

Bulb

520000758

$9.10

142

Hi/Low Switch | Except Europe

710001725

$21.49

144

4X4 Switch

710001737

$31.99

145

Switch DPS

710001781

$22.99

146

Battery Holder

710001916

$21.99

152

Switch Winch

710002052

$28.49

153

Switch, Over ride

710002053

$19.49

157

Solenoid Kit | XT

715007084

$202.49

158

NEGATIVE CABLE - Call your local BRP dealership | XT

710004386

Unavailable

159

Ignition Switch

710008400

$78.49

161

Low Beam Ass'y | Includes 1 to 2

710002524

$104.99

161a

Halogen Bulb

415129249

$41.49

162

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

162a

Halogen Bulb

415129249

$41.49

163

Engine Start Button

710002594

$60.49

164

SWITCHED ACCESSORY - Call your local BRP dealership

710002684

Unavailable

172

Cable Positif *Cable-Positive

710004389

$36.99

178

Heat Deflector

710003265

$16.49

179

Fuse Holder

710003335

$10.11

181

WINCH CABLE - Call your local BRP dealership

710004391

Unavailable

182

WINCH CABLE - Call your local BRP dealership

710004392

Unavailable

183

WIRING HARNESS ASSY - Call your local BRP dealership | Main Harness

710004342

Unavailable

201

Multifunction Speedometer | XRS, XRS DPS

710004547

$439.99

201a

Speedometer Button | XTP

415129355

$15.80

201b

Gauge Ring

415129348

$13.99

201c

Lens | XTP

415129349

$24.49

202

Switch PPS Sport

710003541

$19.49

206

Rear Harness

710003680

$28.99

208

Solenoids Support

710004119

$24.99

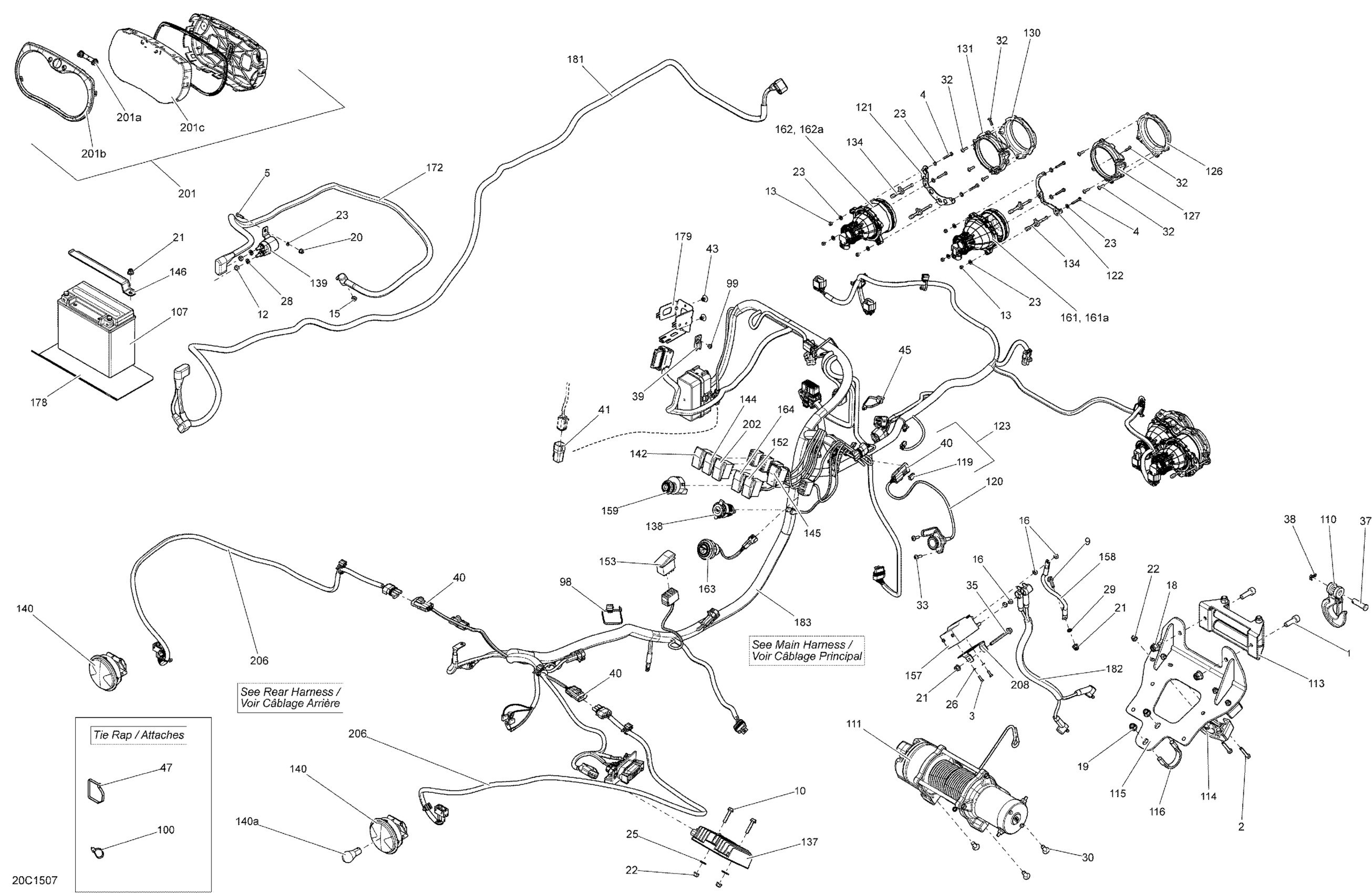

Can-Am Maverick 1000_XMR, 2015 10- Electrical System _20C1507 Diagram
