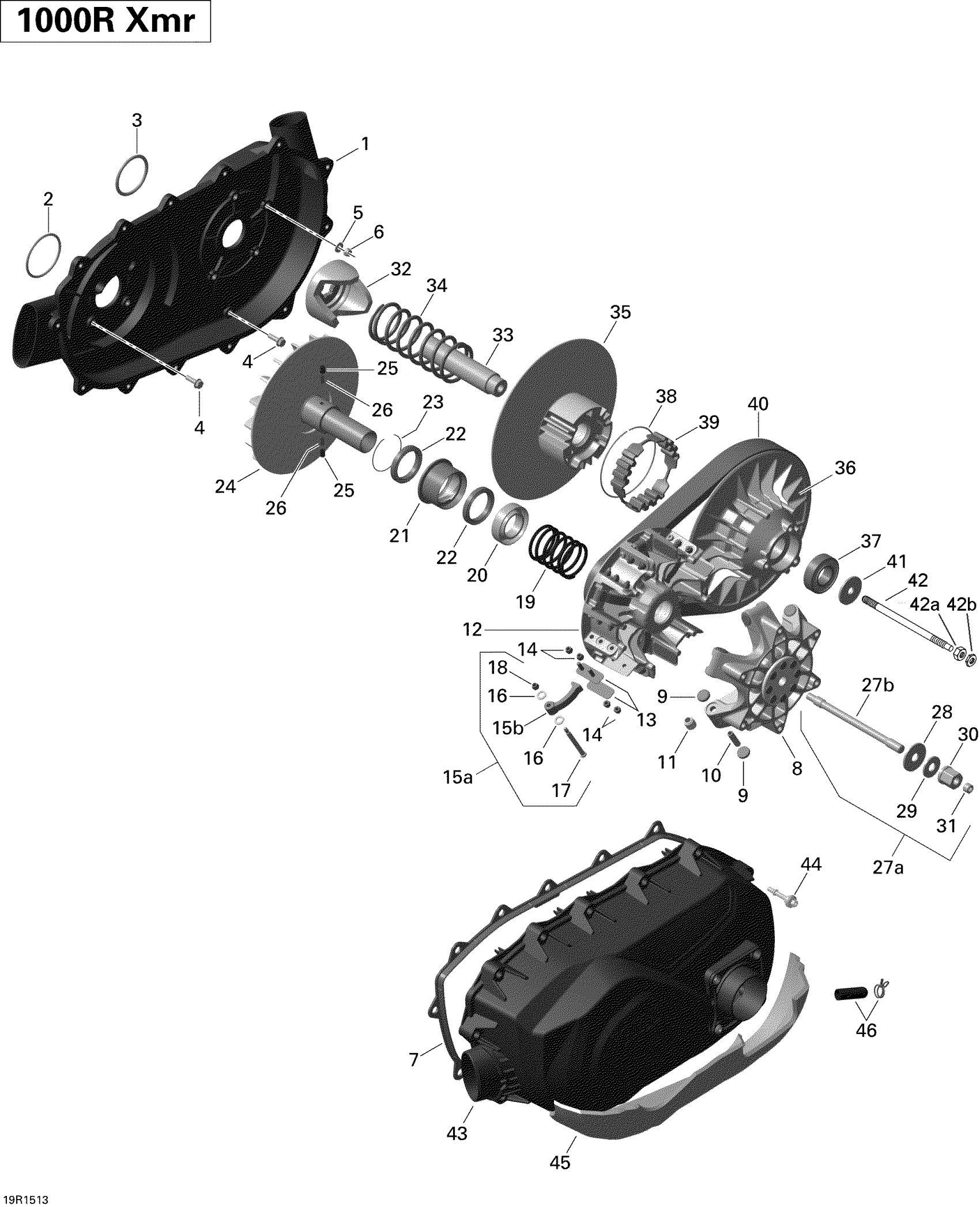

Can-Am Maverick 1000_XMR, 2015 05- Transmission _19R1513 Diagram

#

Description
Price

1

CVT Air Guide

420612304

$194.99

2

O-Ring

420430408

$5.29

3

O-Ring

420631089

$5.29

4

Hex.Screw M6 X 20

420441311

$5.18

5

Flat Washer

224061121

$0.53

6

Elastic Stop Nut M6

232561434

$1.99

7

Gasket

420430126

$41.49

8

Governor Cup Ass'Y | Includes 8 to 11

420280524

$389.99

9

Slider Shoe Set

420281296

$65.49

10

Roller Axle

417223257

$6.99

11

Roller

420229999

$24.99

12

Outher Haft Ass'y | Includes 12 to 14

420280462

$435.99

13

Slide Plate

420651763

$43.49

14

Elastic Stop Nut M5

232551414

$0.87

15a

Centrifugal Lever Kit (Set Of 6) | Includes 15a to 18

420248608

$186.49

15b

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Compression Spring, Drive Pulley

420238615

$36.99

20

Seat Spring

420627578

$35.99

21

Drive Pulley Clutch

420657370

$144.99

22

Ball Bearing

420632377

$49.99

23

Retaining Ring

420245951

$5.31

24

Inner Half

420280577

$338.99

25

Spring Sleeve

420229577

$18.49

26

Spring

420239134

$3.06

27a

Clutch Bolt Repair Kit

703500842

$68.99

27b

Not Available As Spare Part - Friction Washer

Unavailable

28

Washer 40 MM

420427061

$24.99

29

Washer 30 MM

420427054

$26.49

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Cam

420280475

$126.99

33

Driven Pulley Shaft

420220914

$129.99

34

Compression Spring

420238176

$35.99

35

Inner Half Pulley

420280188

$339.99

36

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$359.99

37

Ball Bearing

420932421

$28.49

38

Retaining Ring

420245911

$5.31

39

Torque Gear

420660124

$23.49

40

V Belt

422280367

$206.49

41

Thrust Washer

420627594

$13.49

42

Stud Screw M10 X 136

420441900

$25.99

42a

Nut M10

420242097

$2.51

42b

Hexagonal Nut M10

420242403

$1.90

43

Variator Cover Ass'y | Cover with dual inlet

420212286

$296.99

44

Hex Screw M6 X 30

420440568

$8.58

45

-HEAT PROTECTION MAT - Call your local BRP dealership

715900388

$48.99

46

Drain Plug Kit

707001179

$9.63
