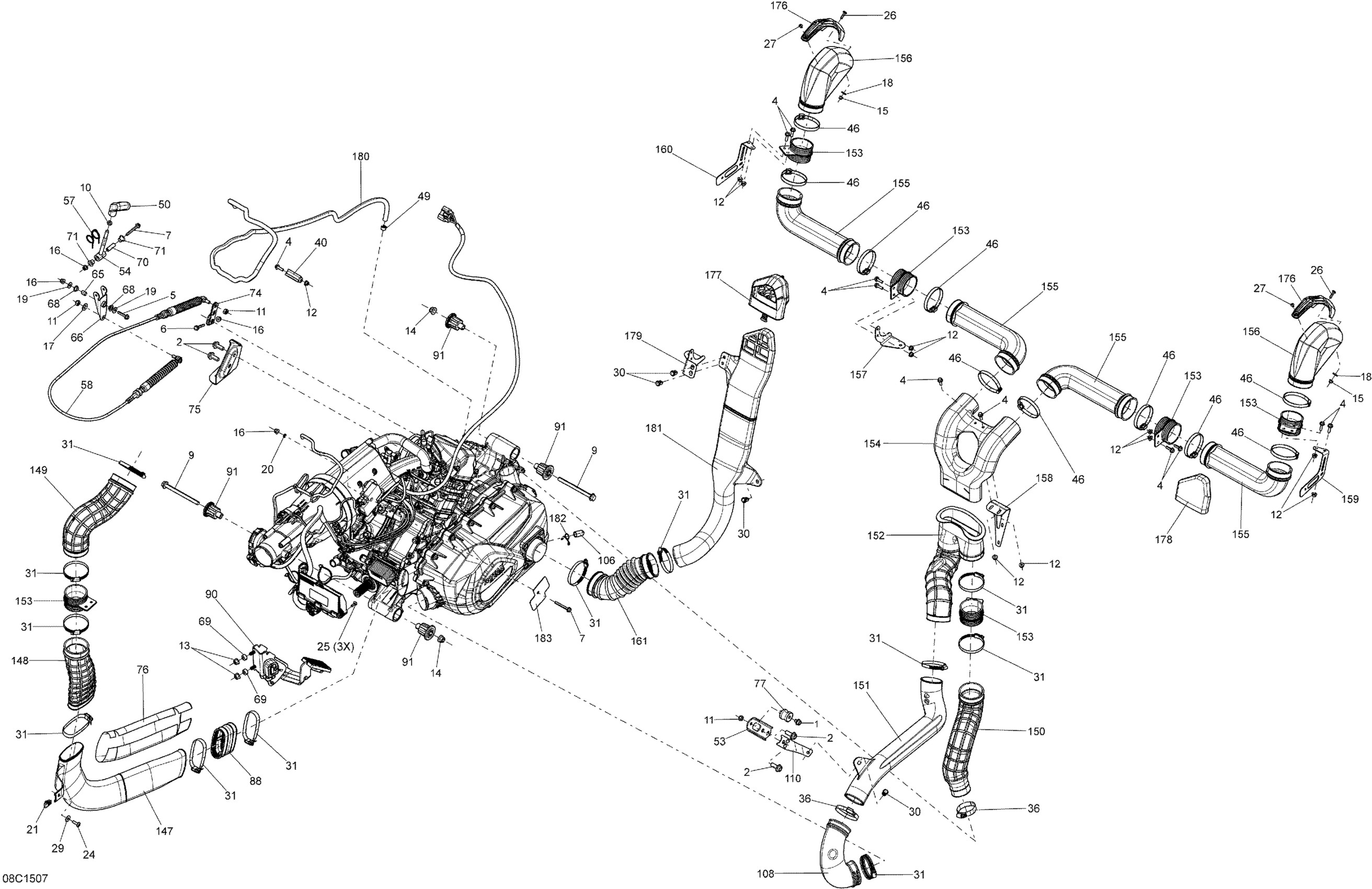

Can-Am Maverick 1000_XMR, 2015 01- Engine _08C1507 Diagram

#

Description
Price

1

Flange Screw M8 x 10, Scotch Grip

207581046

$4.86

2

Hex. Flange Screw M10 X 25

207602544

$1.69

4

Hex. Flange Screw M6 X 20

207662054

$1.01

5

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

6

Hex. Flange Screw M6 X 35

207663544

$0.90

7

Hex. Flange Screw M6 X 50

207665044

$4.12

9

Hex. Flange Screw M10 X 125

230602546

$7.41

10

Hex. Jam Nut M8

232180491

$7.51

11

Hex. Elastic Stop Nut M8

232581414

$0.56

12

Hex. Flange Elastic Nut M6

233261494

$1.58

13

Hex. Flange Nut M8

233081416

$1.15

14

Hex. Flange Elastic Nut M10

233201436

$2.11

15

Elastic Flange Nut M5

233251494

$2.11

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

17

Flat Washer 10 mm

234001410

$1.26

18

Flat Washer 5 mm, Stainless

234052600

$0.77

19

Flat Washer 6 mm

234062410

$0.77

20

External Serrated Lock Washer 6 mm

234461608

$1.15

21

Panel Nut M6 X 1.0

250100198

$2.11

24

Torx Screw M6 X 20

250000722

$1.68

25

Torx Screw K50 X 16

250000720

$1.69

26

Torx Screw M5 X 20

250000792

$2.11

27

Torx Truss Screw K40 X 12

250000577

$2.11

29

Flat Washer

250200082

$0.42

30

Tuflok Plastic Rivet

293150230

$1.47

31

Norma Clamp

293650091

$11.12

36

Norma Gear Clamp

293650118

$13.16

40

Hose Retainer

293650218

$9.39

46

Tie Rap 367mm | XMR

293750065

$4.79

49

Spring Clamp

414415200

$0.88

50

Lever Handle

707000284

$19.99

53

Upper Engine Bracket

707000707

$8.79

54

Upper Lever Arm

707000711

$39.99

57

Lever Arm Spring

707000750

$2.68

58

Shifting Cable

707000775

$66.99

65

Bushing

707000801

$2.68

66

Lower Lever Arm

707000828

$19.99

68

Flanged Bushing

707000847

$1.25

69

Bushing

707000848

$1.35

70

Bushing

707001376

$5.24

71

Flanged Bushing

707000869

$2.89

74

Lever

707000911

$20.49

75

Cable Support | Engine 1000

707000919

$16.87

76

Reflective Sheet

707000924

$33.99

77

Rubber Isolator

707000949

$11.49

88

Flexibale Adaptor

707002585

$10.99

90

Accelerator Pedal

707001166

$274.99

91

Vibration Damper

707001169

$42.99

106

Plug

707001185

$1.15

108

Front Adaptor

707001229

$22.49

110

Front Support

707001231

$15.81

147

AIR INLET - Call your local BRP dealership | MAVERICK XMR

707001361

Unavailable

148

AIR INLET - Call your local BRP dealership | XMR

707001377

Unavailable

149

Air Inlet | XMR

707001378

$44.99

150

CVT Outlet | XMR

707001380

$66.99

151

Front CVT Outlet | XMR

707001381

$49.99

152

Front CVT Outlet | XMR

707001855

$49.99

153

Adaptor | XMR

707001383

$12.12

154

DOUBLE CVT OUTLET - Call your local BRP dealership | Model-Black

707001766

Unavailable

154

GREEN DOUBLE CVT OUTLET - Call your local BRP dealership | Model-Digital Camo

707001629

Unavailable

155

CVT Outlet | XMR

707001385

$49.99

156

Rear CVT Outlet | XMR

707001386

$49.99

157

Right Support | XMR

707001388

$18.49

158

Central Support | XMR

707001389

$28.99

159

LEFT SUPPORT - Call your local BRP dealership | XMR

707001390

$26.99

160

Right Support | XMR

707001391

$28.99

161

Flexible Adaptor

707001400

$24.49

176

CAP - Call your local BRP dealership | XMR

707001479

$19.99

176

Manta Green - Cap | Model-Digital Camo

707001630

$22.49

177

Deflector | XMR

707001481

$43.99

178

CVT Filter | XMR

707001482

$16.88

179

Support | XMR

707001483

$27.49

180

Hose

219704549

$50.99

181

AIR INLET - Call your local BRP dealership | XMR

707001640

Unavailable

182

Retainer Clip

707800506

$12.63

183

Insulator Pad

710000073

$11.12
