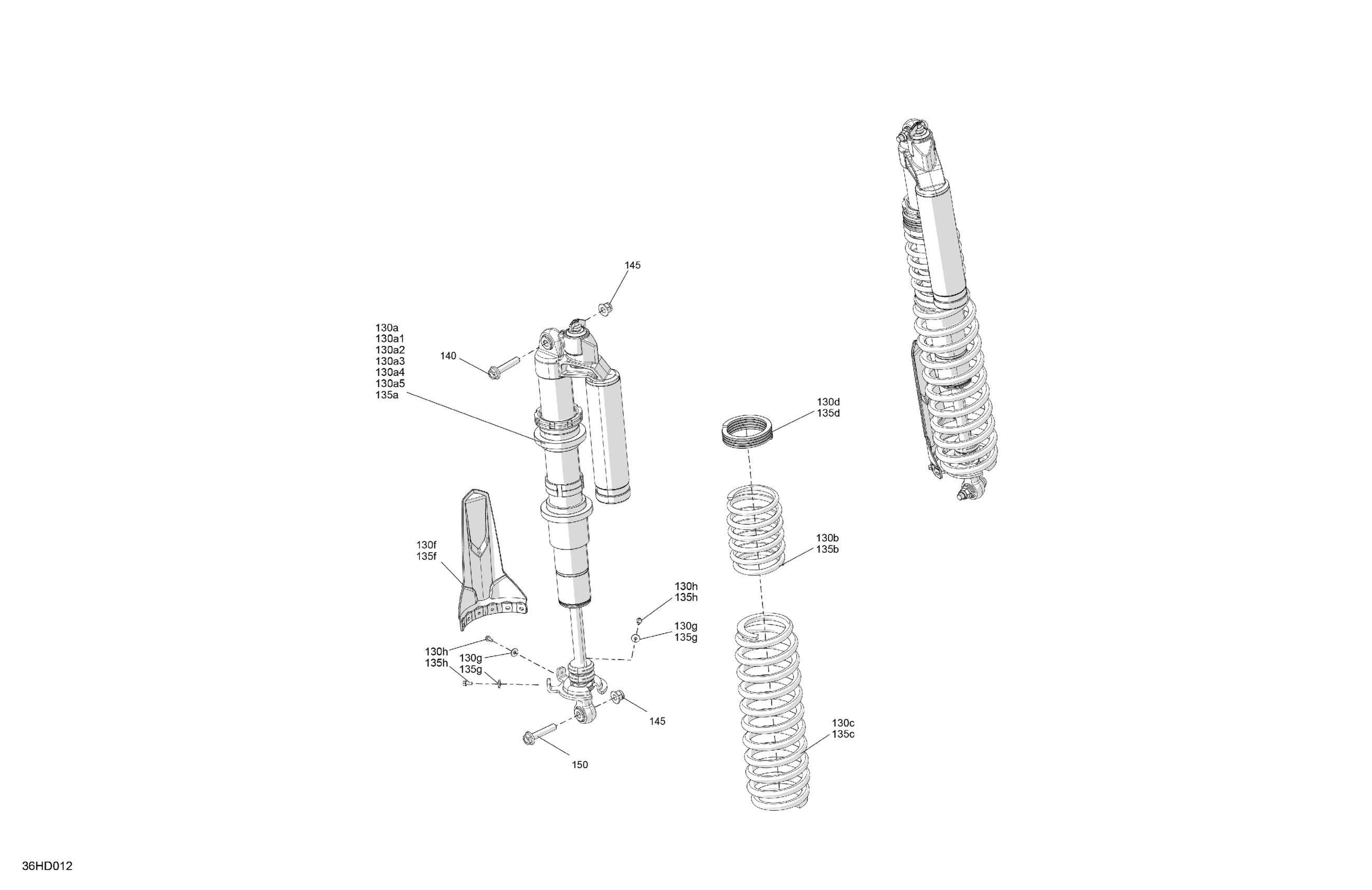

Can-Am North America - Maverick Turbo RR - XRC - 6VRA - Hyper Silver - 64" Width, 2024 05- Suspension - Rear Shocks Diagram

Description

Price

130a

LH Rear Adjustable Shock Absorber | Includes 130a to 130a5

706004808

$1,009.99

130a1

Spherical Bearing

715900337

$84.99

130a2

Ball Joint

706004078

$47.49

130a3

O-Ring Bushing

715900338

$12.63

130a4

Circlip

715900480

$11.49

130a5

Reducer

715900481

$27.99

130b

Legion Red, Compression Spring

548875078

$126.99

130c

Legion Red, Compression Spring

706005560

$153.49

130d

Legion Red, Compression Spring

706005562

$69.99

130f

Protector

706202215

$11.99

130g

Washer M5

250200025

$0.74

130h

Hex Flange Screw M5 X 11

210251150

$2.11

135a

RH Rear Adjustable Shock Absorber

706004809

$999.99

135b

Legion Red, Compression Spring

548875078

$126.99

135c

Legion Red, Compression Spring

706005560

$153.49

135d

Legion Red, Compression Spring

706005562

$69.99

135f

Protector

706202215

$11.99

135g

Washer M5

250200025

$0.74

135h

Hex Flange Screw M5 X 11

210251150

$2.11

140

Flange Screw M12 X 60

250000857

$7.41

145

Elastic Flange Nut M12

250001195

$2.64

150

Flange Screw M12 X 60

250000857

$7.41
