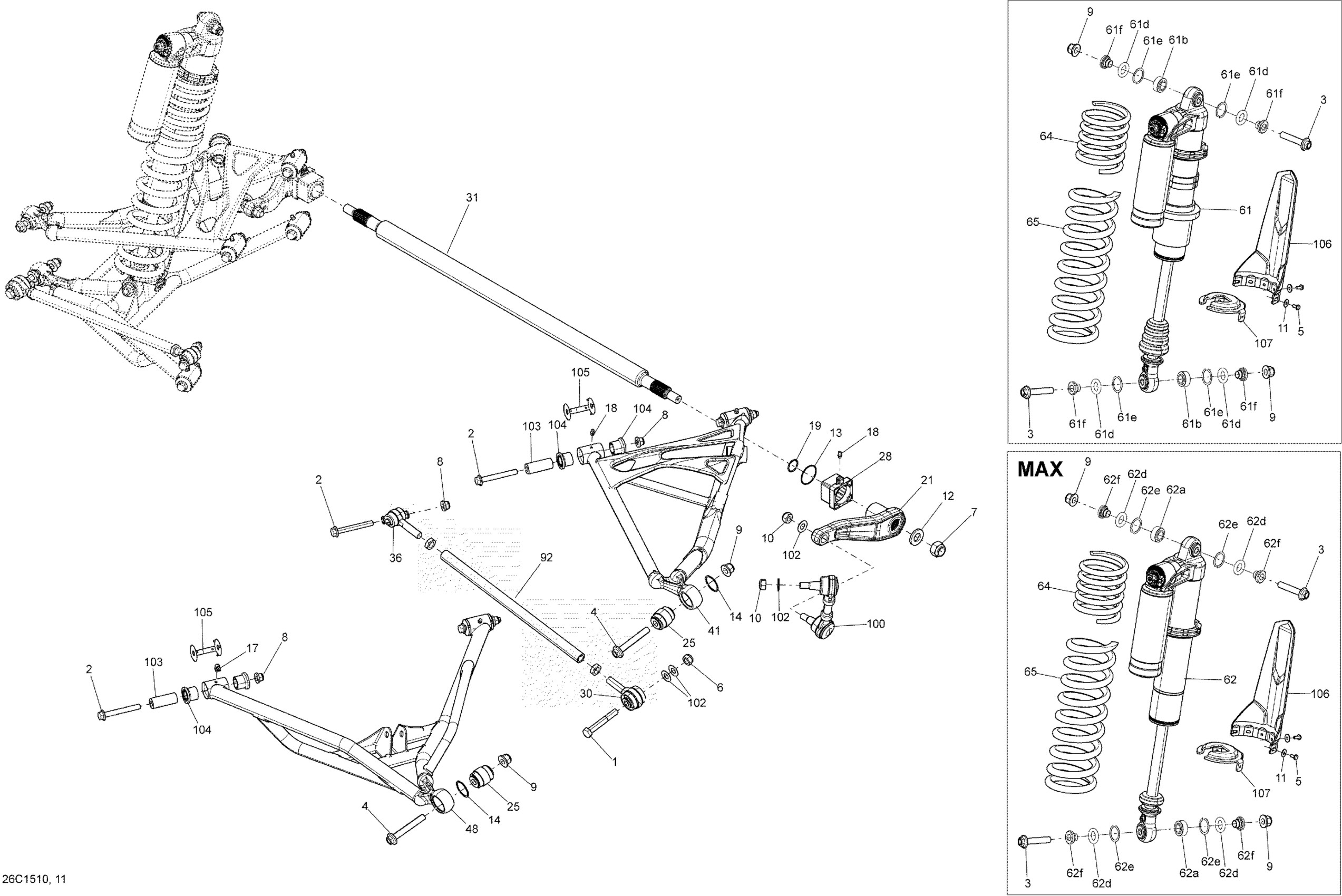

Can-Am Maverick 1000_XDS-DPS, 2015 08- Rear Suspension _26C1510 Diagram

#

Description
Price

1

Hex. Screw M12 X 80

207028046

$3.91

2

Hex Flange Screw M10 X 80

207608046

$6.69

3

Hex. Flange Screw M12 X 60

207626046

$7.41

4

Hex. Flange Screw M12 X 85

207628546

$6.77

5

Hex. Forming Screw M5 X 16

210251650

$1.15

6

Elastic Stop Nut M12

232521416

$1.69

7

Elastic Stop Nut M18

232591414

$4.39

8

Hex. Flange Elastic Nut M10

233201436

$2.11

9

Elastic Flange Nut M12

233221416

$2.85

10

Hex. Flange Elastic Nut M12

250000047

$1.90

11

Washer M5

250200025

$0.74

12

Washer

250200045

$7.73

13

O-Ring

293300100

$5.72

14

Retaining Ring

293370093

$7.59

17

Grease Fitting 90°

293550056

$1.15

18

Grease Fitting

408200700

$3.49

19

Retaining Ring

706000251

$6.35

21

Sway Bar Lever

706001371

$169.99

25

Radial Joint

706001373

$52.99

28

Sway Bar Housing

706001402

$15.49

30

Ball Joint | Package-STD, XRS, XRSDPS

706001437

$51.99

31

Sway Bar

706001356

$185.49

36

Ball Joint | Package-STD, XRS, XRSDPS

706001798

$51.99

41

SUSPENSION ARM REAR L B-357 MANTA GREEN - Call your local BRP dealership | Model-Turbo Deep Black

706002225

Unavailable

41

Manta Green RH Rear Upper Arm | Model-Turbo Deep Black

706002226

$201.49

48

Black LH Rear Lower Arm

706001935

$201.49

48

Black RH Rear Lower Arm

706001936

$201.49

61

REAR SHOCK - Call your local BRP dealership | Package-XDS Europe

706002129

Unavailable

61

Shock | Package-XDS North America, International

706001944

$919.99

61b

Spherical Bearing

715900337

$84.99

61d

O-Ring Bushing

715900338

$12.63

61e

CIRCLIP - Call your local BRP dealership

715900339

$12.49

61f

INTERNAL BUSHING - Call your local BRP dealership

715900340

Unavailable

62

Not Available As Spare Parts

XXX

Unavailable

62a

Not Available As Spare Parts

XXX

Unavailable

62d

Not Available As Spare Parts

XXX

Unavailable

62e

Not Available As Spare Parts

XXX

Unavailable

62f

Not Available As Spare Parts

XXX

Unavailable

64

MANTA GREEN SPRING - Call your local BRP dealership | Model-MAVERICK 1000 Deep Black

706001945

Unavailable

64

Yellow, Rear Spring | Model-MAVERICK Turbo Deep Black

706002108

Unavailable

65

MANTA GREEN SPRING - Call your local BRP dealership | Model-MAVERICK 1000 Deep Black

706001946

Unavailable

65

Yellow, Rear Spring | Model-MAVERICK Turbo Deep Black

706002109

Unavailable

92

Adjustment Rod | Package-STD, XRS, XRSDPS

706002081

$46.49

100

LH Double Ball Joint

706002089

$98.99

100

RH Double Ball Joint

706002090

$98.99

102

Hardened Washer

706200281

$2.85

103

Sleeve

706201590

$11.99

104

Suspension Arm Bushing

706204409

$9.10

105

Wear Plate

706201660

$0.95

106

Protector

706202215

$11.99

107

SPRING RETAINER - Call your local BRP dealership

706202216

Unavailable
