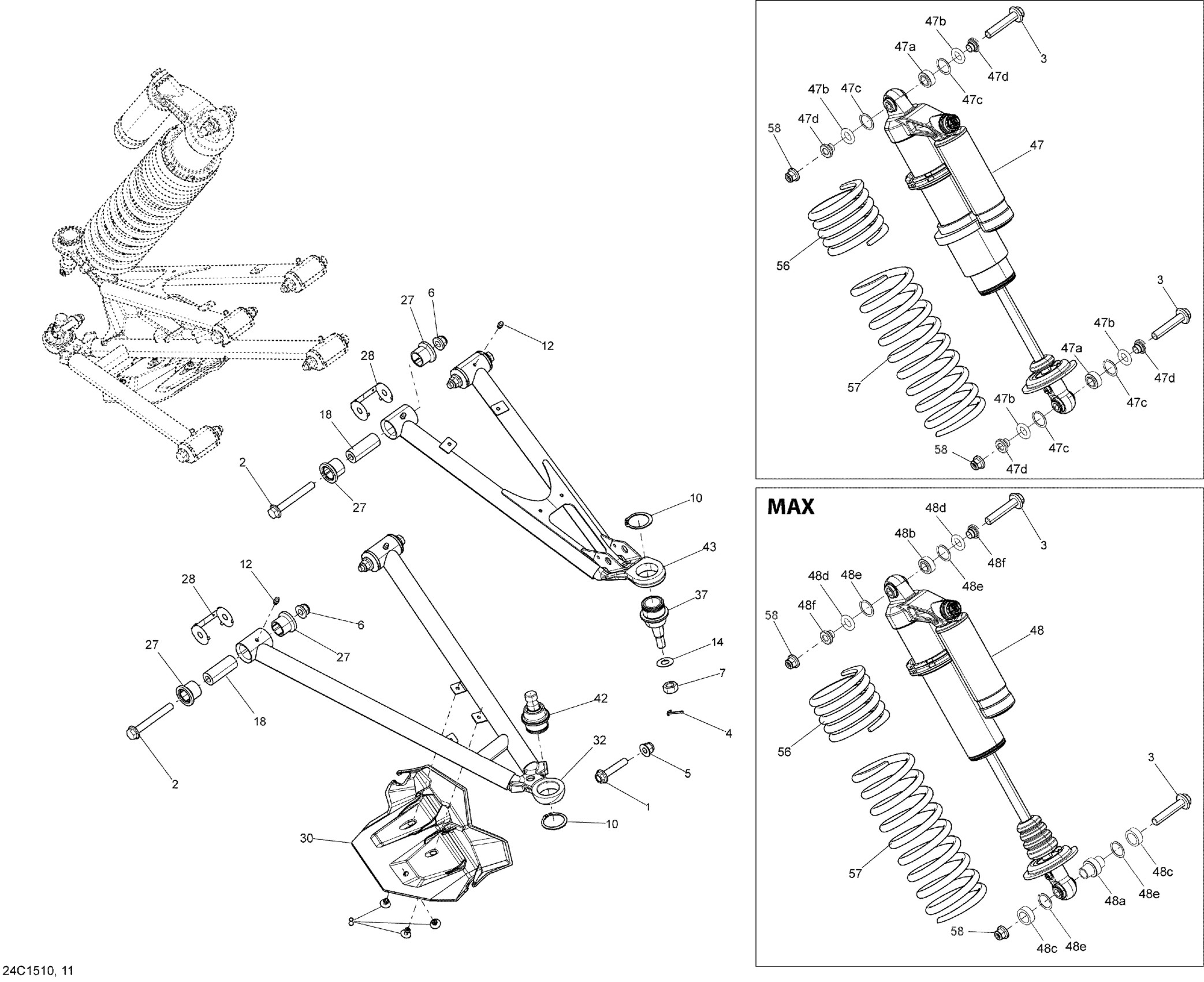

Can-Am Maverick 1000_XDS-DPS, 2015 07- Front Suspension _24C1510 Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 50

207605044

$5.29

2

Hex Flange Screw M10 X 80

207608046

$6.69

3

Hex. Flange Screw M12 X 60

207626046

$7.41

4

Cotter Pin

211400017

$0.33

5

Hex. Flange Elastic Nut M10

233201414

$1.58

6

Hex. Flange Elastic Nut M10

233201436

$2.11

7

Nut M12

250100099

$2.09

8

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

10

Circlip

293370035

$2.64

12

Grease Fitting

408200700

$3.49

14

Hardened Washer

706200281

$2.85

18

Sleeve

706201590

$11.99

27

Suspension Arm Bushing

706204409

$9.10

28

Wear Plate

706201660

$0.95

30

LH Joint Protector

706202808

$9.90

30

RH Joint Protector

706202809

$9.90

32

LH Front Lower Arm

706201861

$201.49

32

RH Front Lower Arm

706201862

$201.49

37

Ball Joint

706202044

$35.99

42

Ball Joint

706202045

$35.99

43

Green Front Upper Arm | Model-Quarry Grey

706202392

$201.49

47

Front Shock | Model-MAV XDSDPS Black Carbon Fiber

706202154

$899.99

47a

Spherical Bearing

715900266

$82.99

47b

O-Ring Bushing

715900338

$12.63

47c

CIRCLIP - Call your local BRP dealership

715900339

$12.49

47d

Internal Bushing

715900267

$26.49

48

Not Available As Spare Parts

XXX

Unavailable

48a

Not Available As Spare Parts

XXX

Unavailable

48b

Not Available As Spare Parts

XXX

Unavailable

48c

Not Available As Spare Parts

XXX

Unavailable

48d

Not Available As Spare Parts

XXX

Unavailable

48e

Not Available As Spare Parts

XXX

Unavailable

48f

Not Available As Spare Parts

XXX

Unavailable

56

MANTA GREEN SPRING - Call your local BRP dealership | Model-MAV XDSDPS Black Carbon Fiber

706202155

Unavailable

56

Not Available As Spare Parts

XXX

Unavailable

57

MANTA GREEN SPRING - Call your local BRP dealership | Model-MAV XDSDPS Black Carbon Fiber

706202156

Unavailable

57

Yellow, Front Spring | Model-MAVERICK Turbo Deep Black

706202291

Unavailable

57

Yellow Front Spring | Model-MAVERICK Turbo Deep Black

706202292

Unavailable

58

Elastic Flange Nut M12

233221416

$2.85
