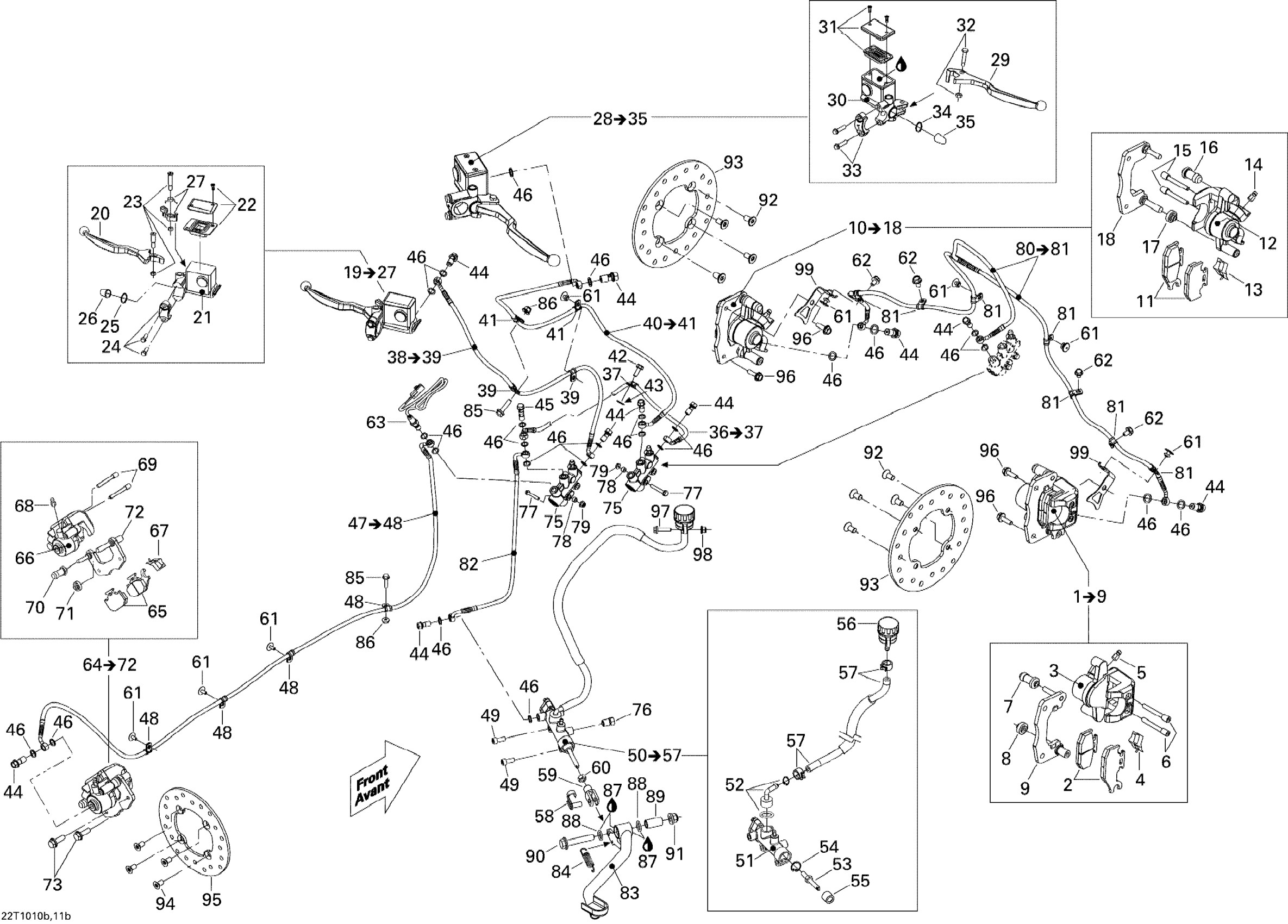

Can-Am Renegade 800R EFI STD, 2010 06- Hydraulic Brakes Europe Diagram

#

Description
Price

1

RH CALIPER - Call your local BRP dealership | Includes 1 to 9

705600593

Unavailable

2

Brake Pad Kit

705600004

$51.99

3

Piston Set

705600078

$38.99

4

Spring

705600079

$15.81

5

Bleeding Screw

705600080

$16.87

6

Pin Set (2)

705600081

$20.49

7

Compression Boot

705600082

$10.06

8

Compression Boot

705600083

$10.06

9

Not Available As Spare Part - Friction Washer

Unavailable

10

LH CALIPER - Call your local BRP dealership | Includes 10 to 18

705600594

Unavailable

11

Brake Pad Kit

705600014

$51.99

12

Piston Set

705600078

$38.99

13

Spring

705600079

$15.81

14

Bleeding Screw

705600080

$16.87

15

Pin Set (2)

705600081

$20.49

16

Compression Boot

705600082

$10.06

17

Compression Boot

705600083

$10.06

18

Not Available As Spare Part - Friction Washer

Unavailable

19

LH FRONT MASTER CYLINDER - Call your local BRP dealership | Includes 1 to 9

705600845

Unavailable

20

Lever Arm

705600243

$54.99

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Cap Set

705600084

$24.99

23

Brake Lever Bolt Kit

705600246

$14.81

24

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

25

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

26

COMPRESSION BOOT - Call your local BRP dealership

705600089

Unavailable

27

PARKING KIT, BRAKE LEVER LOCK - Call your local BRP dealership

705600477

Unavailable

28

RH FRONT MASTER CYLINDER - Call your local BRP dealership | Includes 19 to 27

705600596

Unavailable

29

LEVER ARM - Call your local BRP dealership

705600629

Unavailable

30

SWITCH KIT - Call your local BRP dealership

705600086

Unavailable

31

Cap Set

705600084

$24.99

32

BOLT KIT - Call your local BRP dealership

705600085

Unavailable

33

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

34

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

35

COMPRESSION BOOT - Call your local BRP dealership

705600089

Unavailable

36

Brake Hose, Front | Includes 36 to 37

705600699

Unavailable

37

Clamp

293650256

$5.49

38

BRAKE HOSE, FRONT LH - Call your local BRP dealership | Includes 38 to 39

705601054

Unavailable

39

Clamp

293650256

$5.49

40

BRAKE HOSE, FRONT RH - Call your local BRP dealership | Includes 40 to 41

705600698

Unavailable

41

Clamp

293650256

$5.49

42

Hex. Flange Screw M6 X 16

210261650

$1.67

43

Flat Washer

224061121

$0.53

44

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

45

Banjo Bolt

705600958

$6.35

46

Copper Washer

705601628

$4.44

47

BRAKE HOSE, REAR - Call your local BRP dealership | Includes 47 to 48

705600960

Unavailable

48

Clamp

293650256

$5.49

49

Socket Head Screw M8 X 20, Scotch Grip

250000136

$3.70

50

Master Cylinder | Includes 36 to 44, STD Model

705600751

$229.99

51

Piston Set

705600255

$64.49

52

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

53

Not Available As Spare Part - Friction Washer

Unavailable

54

Circlip

705600068

Unavailable

55

Compression Boot

705600090

Unavailable

56

Oil Tank, Brake Fluid Reservoir

705600182

$38.99

57

OIL HOUSING HOSE - Call your local BRP dealership

705600754

Unavailable

58

Pin Kit

219702305

$34.99

59

Yoke

705600100

Unavailable

60

Hex. Nut M8

232081414

$0.72

61

Pop Rivet 3/16"

390406500

$0.88

62

Hex. Flange Screw M6 X 10

210261040

$1.48

63

Brake Switch

705600798

$51.99

64

REAR CALIPER - Call your local BRP dealership | Includes 55 to 62

705600791

Unavailable

65

LH Brake Pad Kit

705600398

$51.99

66

Not Available As Spare Part - Friction Washer

Unavailable

67

Spring

705600079

$15.81

68

Bleeding Screw

705600080

$16.87

69

Pin Set (2)

705600081

$20.49

70

Compression Boot

705600082

$10.06

71

Compression Boot

705600083

$10.06

72

Not Available As Spare Part - Friction Washer

Unavailable

73

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

75

SPLITTER - Call your local BRP dealership

705600800

Unavailable

76

HEX HEAD PIPE PLUG M10 DIN910 - Call your local BRP dealership

250100122

Unavailable

77

HEX. SCREW M6 X 40 - Call your local BRP dealership

210264080

Unavailable

78

Bushing | DS 650 X

293900104

$5.50

79

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

80

BRAKE HOSE - Call your local BRP dealership | Includes 80 to 81

705600700

Unavailable

81

Clamp

293650256

$5.49

82

BRAKE HOSE, REAR - Call your local BRP dealership

705600701

Unavailable

83

BRAKE PEDAL, BLACK - Call your local BRP dealership

705601154

Unavailable

84

Brake Pedal Spring

705600792

$9.10

85

Hex. Flange Screw M6 X 20

207662044

$2.00

86

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

87

Synthetic Grease, 400 G

293550010

Unavailable

88

O-Ring

293300144

$3.82

89

Inner Spacer

705600815

$11.60

90

Hex. Flange Screw M10 X 55

207605544

$3.38

91

Hex. Flange Elastic Nut M10

233201414

$1.58

92

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

93

Disk Brake

705600604

$50.99

94

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

95

Disk Brake

705600604

$50.99

96

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

97

Hex. Flange Screw M6 X 25

207662544

$0.64

98

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

99

BRACKET - Call your local BRP dealership

705600795

Unavailable
