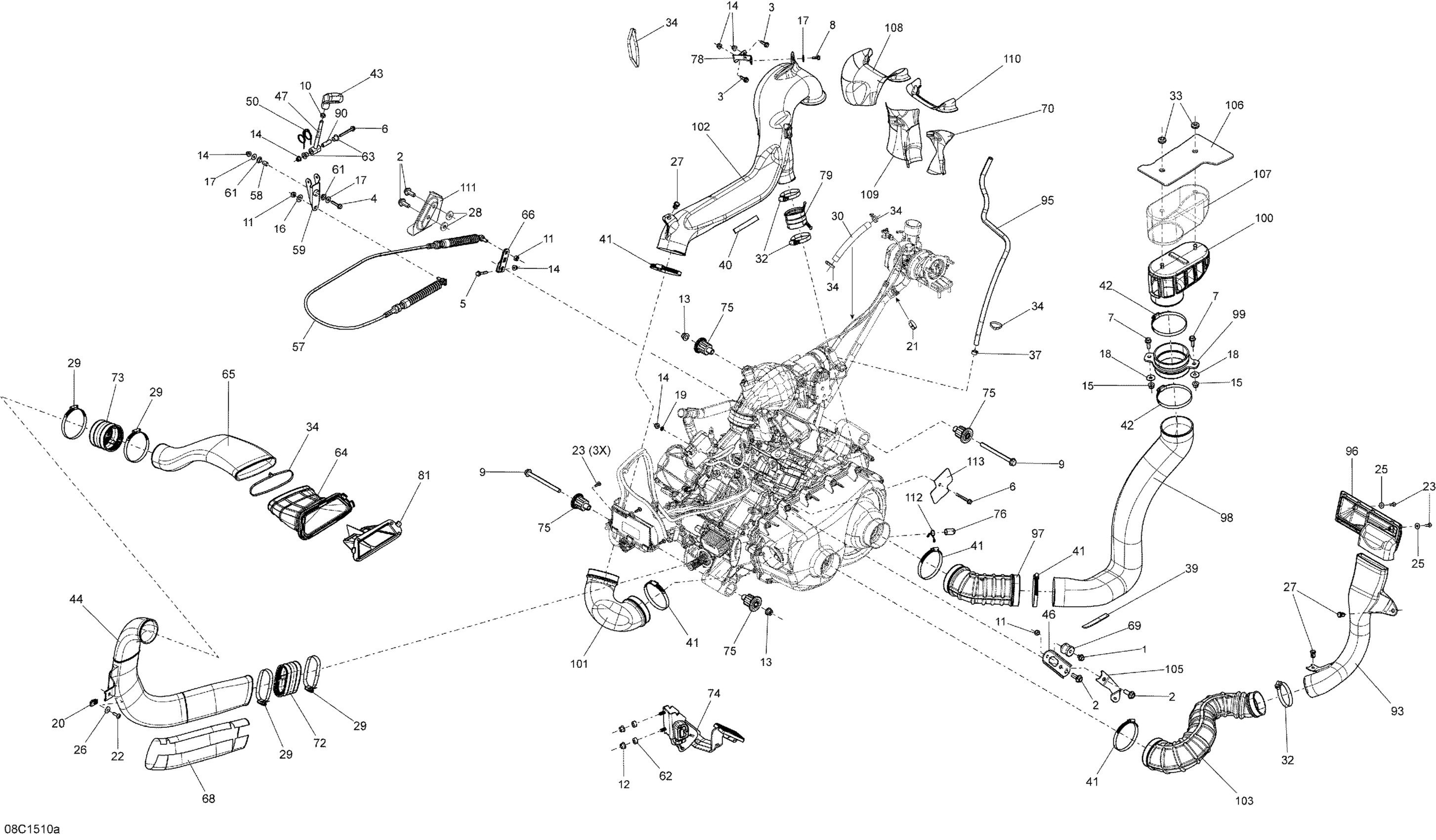

Can-Am Maverick 1000_XDS-DPS, 2015 01- Engine _Turbo_08C1510a Diagram

#

Description
Price

1

Flange Screw M8 x 10, Scotch Grip

207581046

$4.86

2

Hex. Flange Screw M10 X 25

207602544

$1.69

3

Hex. Flange Screw M6 X 20

207662044

$2.00

4

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

5

Hex. Flange Screw M6 X 35

207663544

$0.90

6

Hex. Flange Screw M6 X 50

207665044

$4.12

7

Hex. Flange Elastic Nut M8

233281414

$1.47

8

Hex. Flange Screw M6 X 16

210261650

$1.67

9

Hex. Flange Screw M10 X 125

230602546

$7.41

10

Hex. Jam Nut M8

232180491

$7.51

11

Hex. Elastic Stop Nut M8

232581414

$0.56

12

Hex. Flange Nut M8

233081416

$1.15

13

Hex. Flange Elastic Nut M10

233201436

$2.11

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

15

Hex. Flange Screw M8 X 25

207682534

$2.11

16

Flat Washer 10 mm

234001410

$1.26

17

Flat Washer 6 mm

234062410

$0.77

18

Flat Washer 8 mm

234082410

$1.47

19

External Serrated Lock Washer 6 mm

234461608

$1.15

20

Panel Nut M6 X 1.0

250100198

$2.11

21

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

22

Torx Screw M6 X 20

250000722

$1.68

23

Torx Screw K50 X 16

250000720

$1.69

25

Washer M5

250200025

$0.74

26

Flat Washer

250200082

$0.42

27

Tuflok Plastic Rivet

293150230

$1.47

28

Washer

503190439

$5.93

29

Norma Clamp

293650091

$11.12

30

Tubing 16 Mm 1000Mm Long

219704408

$7.49

32

Norma Gear Clamp

293650118

$13.16

33

Grommet

709000582

$4.69

34

Tie Wrap 368 mm

293750008

$1.04

37

Spring Clamp

414415200

$0.88

39

Gasket, Neoprene 2000Mm Long

219704476

$15.36

40

Gasket, Neoprene 2000Mm Long

219704476

$15.36

41

Norma Clamp

514052924

$14.22

42

Norma Gear Clamp

514052983

$15.89

43

Lever Handle

707000284

$19.99

44

Air Inlet

707000639

$19.99

46

Upper Engine Bracket

707000707

$8.79

47

Upper Lever Arm

707000711

$39.99

47

UPPER LEVER ARM - Call your local BRP dealership | Europe

707000978

Unavailable

50

Lever Arm Spring

707000750

$2.68

57

Shifting Cable

707000775

$66.99

58

Bushing

707000801

$2.68

59

Lower Lever Arm

707000828

$19.99

61

Flanged Bushing

707000847

$1.25

62

Bushing

707000848

$1.35

63

Flanged Bushing

707000869

$2.89

64

Adaptor

707000908

$35.99

65

Primary Air Intake

707000909

$22.49

66

Lever

707000911

$20.49

68

Reflective Sheet

707000924

$33.99

69

Rubber Isolator

707000949

$11.49

70

Reflective Sheet

707000991

$10.49

72

Flexibale Adaptor

707002585

$10.99

73

Flexibale Adaptor

707002585

$10.99

74

Accelerator Pedal

707001166

$274.99

75

Anti Vibration Buffer

707001170

$20.99

76

Plug

707001185

$1.15

78

Rear Support

707001232

$10.99

79

Adaptor

707001274

$16.25

81

CVT Filter

707001344

$15.49

90

Bushing

707001376

$5.24

93

Air Inlet

707001403

$48.99

95

Hose

219704549

$50.99

96

Filter

707001422

$20.49

97

AIR INLET - Call your local BRP dealership

707001727

Unavailable

98

Air Inlet

707001728

$69.99

99

AIR INLET - Call your local BRP dealership

707001729

Unavailable

100

AIR INLET - Call your local BRP dealership

707001730

Unavailable

101

CVT OUTLET - Call your local BRP dealership

707001732

Unavailable

102

CVT OUTLET - Call your local BRP dealership

707001733

Unavailable

103

Hose

707001734

$68.99

105

FRONT SUPPORT - Call your local BRP dealership

707001735

Unavailable

106

COVER - Call your local BRP dealership

707001741

Unavailable

107

CVT Filter

707001742

$39.99

108

REFLECTIVE SHEET - Call your local BRP dealership

707001745

Unavailable

109

REFLECTIVE SHEET - Call your local BRP dealership

707001746

Unavailable

110

REFLECTIVE SHEET - Call your local BRP dealership

707001752

Unavailable

111

Cable Support | Engine 1000

707000919

$16.87

112

Retainer Clip

707800506

$12.63

113

Insulator Pad

710000073

$11.12
