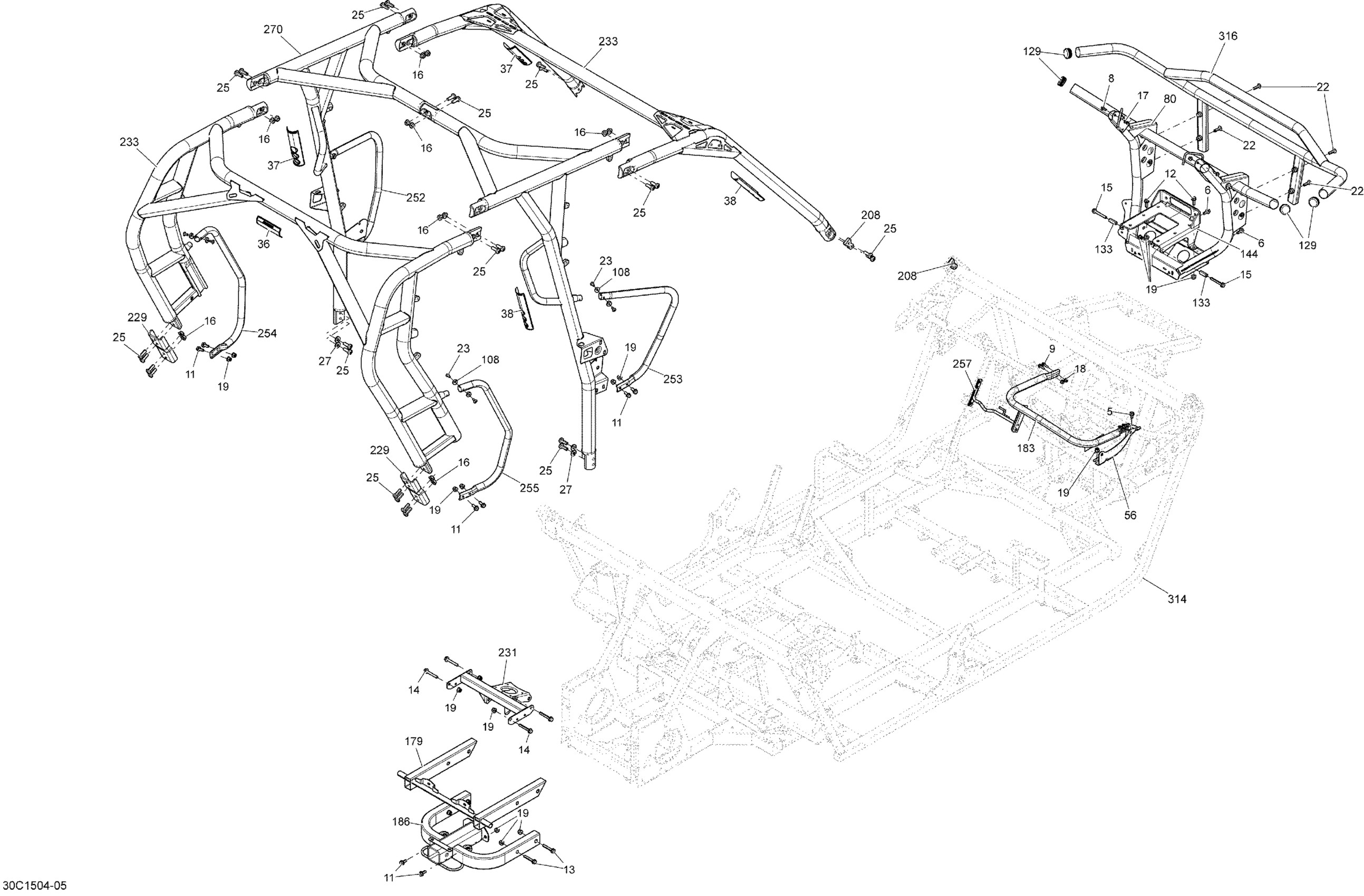

Can-Am Commander MAX 1000_LTD, 2015 09- Frame _30C1505 Diagram

#

Description
Price

5

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

6

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

8

Hex. Flange Screw M6 X 16

207661644

$0.74

9

Hex. Flange Screw M6 X 20

207662046

$2.11

10

Hex. Flange Screw M6 X 50

207665044

$4.12

11

Hex. Flange Screw M8 X 20

207682044

$1.15

12

Hex. Flange Screw M6 X 20

207662044

$2.00

13

Hex. Flange Screw M8 X 50

207685044

$1.69

14

Hex. Flange Screw M8 X 55

207685544

$5.39

15

Hex. Flange Screw M8 x 60

207686044

$3.07

16

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$2.11

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

Elastic Flange Nut M6 X 1.0

233261416

$2.11

19

Hex. Flange Elastic Nut M8

233281414

$1.47

22

Hex Torx Truss M8 X30

250000745

$3.17

23

Torx Truss M6X14

250000789

$5.39

25

Screw Pan M10 X 30

250000848

$1.90

27

Washer

250200154

$3.70

36

Warning Label

704903492

Unavailable

37

Warning Label

704903679

Unavailable

38

Warning Label

704903680

Unavailable

56

Front Differential Support

705201721

$19.49

80

Black Front Bumper

705202995

$404.49

108

Offset Washer

705202223

$4.14

129

Cap

705202455

$5.69

133

Bushing

705202499

$6.67

142

Tube Cap | Europe

705202631

$20.99

144

Winch Plate | XT

715000704

$122.49

179

BOX HOLDER - Call your local BRP dealership

705203325

Unavailable

183

Black Handle

705203332

$132.49

186

TRAILER HITCH ASS'Y - Call your local BRP dealership | Includes 47 to 50

715001251

Unavailable

208

Binding Block

705203415

$18.49

229

Rear Hand Mounting

705203514

$20.49

231

Differential Holder

705203538

$38.99

233

Deep Black, Cage Ass'y | Includes 2 to 8

715004812

$1,039.99

252

Black LH Front Side Protector Tube

705203643

$46.49

253

Black RH Front Side Protector Tube

705203642

$46.49

254

Black LH Rear Side Protector Tube

705203649

$46.49

255

Black RH Rear Side Protector Tube

705203652

$46.49

257

Reinforcement Panel

705203717

$154.99

270

Black Central Cage Kit

715003902

$779.99

314

CHASSIS MAX B-160 KIT - Call your local BRP dealership

703501014

Unavailable

316

Black Front Bumper | XT, X

715000958

$308.49
