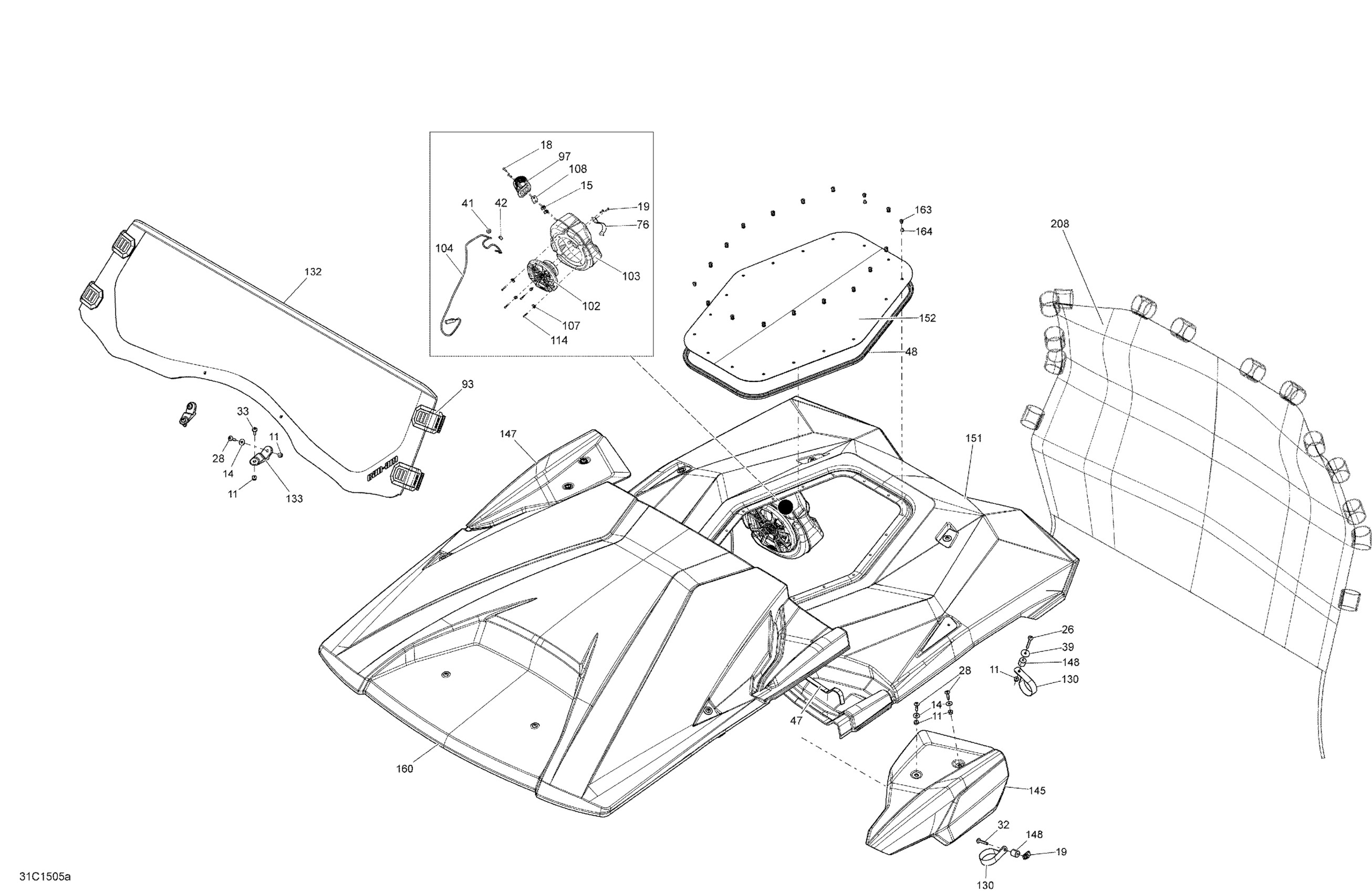

Can-Am Commander MAX 1000_LTD, 2015 09- Body And Accessories Roof And Windshield_31C1505a Diagram

Hex. Flange Elastic Nut M6

233261494

$1.58

Stainless Steel Flat Washer

234062670

$2.11

Panel Nut M5 X 0.8

250000958

$4.23

Torx Screw M5 X 20

250000724

$1.69

Panel Nut M6 X 1.0

250100198

$2.11

Torx Truss Screw M6 X 50

250000749

$3.17

Torx Screw M6 x 25

250000284

$2.11

Torx Screw M6 X 20

250000712

$2.11

Washer M6

250200029

$2.50

Grommet

414036300

$2.79

Clip

414227300

$1.67

Gasket, Neoprene 2000Mm Long

219704476

$15.36

EXTRUSION - Call your local BRP dealership

293250336

Unavailable

U Brace Strip | LTD

705009030

$18.49

Retainer Velcro Perforated

705013420

$43.99

Retainer Velcro Perforated

705013420

$43.99

Speaker

710002838

$169.49

LH Speaker Box Ass'y

710002837

$148.49

RH Speaker Box Ass'y

710002839

$148.49

Speaker Harness

710004341

$104.99

Extruded Panel Nut M4 X 0.7

250100143

$8.49

M5 Support Plate

710002946

$7.99

Torx Pan Screw M4 X 20

250000622

$1.90

"P" Bracket, 2" Dia.

705005626

$27.99

Windshield Half Ass'y

703501024

$399.99

Windshield Support | LTD

705005776

$13.49

DEEP PEWTER-CAGE COVER KIT - Call your local BRP dealership

705008584

Unavailable

KIT CAGE COVER - Call your local BRP dealership

705008608

Unavailable

DEEP PEWTER-CAGE COVER KIT - Call your local BRP dealership

705008584

Unavailable

KIT CAGE COVER - Call your local BRP dealership

705008608

Unavailable

Roof Spacer Bushing

705007138

$1.89

PACKAGED ROOF - Call your local BRP dealership

705009204

Unavailable

Deep Black Roof Rear Section

705009205

$639.99

Clear Skylight Panel

705009562

$224.99

PACKAGED ROOF - Call your local BRP dealership

705009202

Unavailable

Deep Black Roof Front Section

705009203

$639.99

Plastic Dart

705009405

$1.99

Push Nut

705009406

$0.95

Wind Deflector

715003078

$137.99
