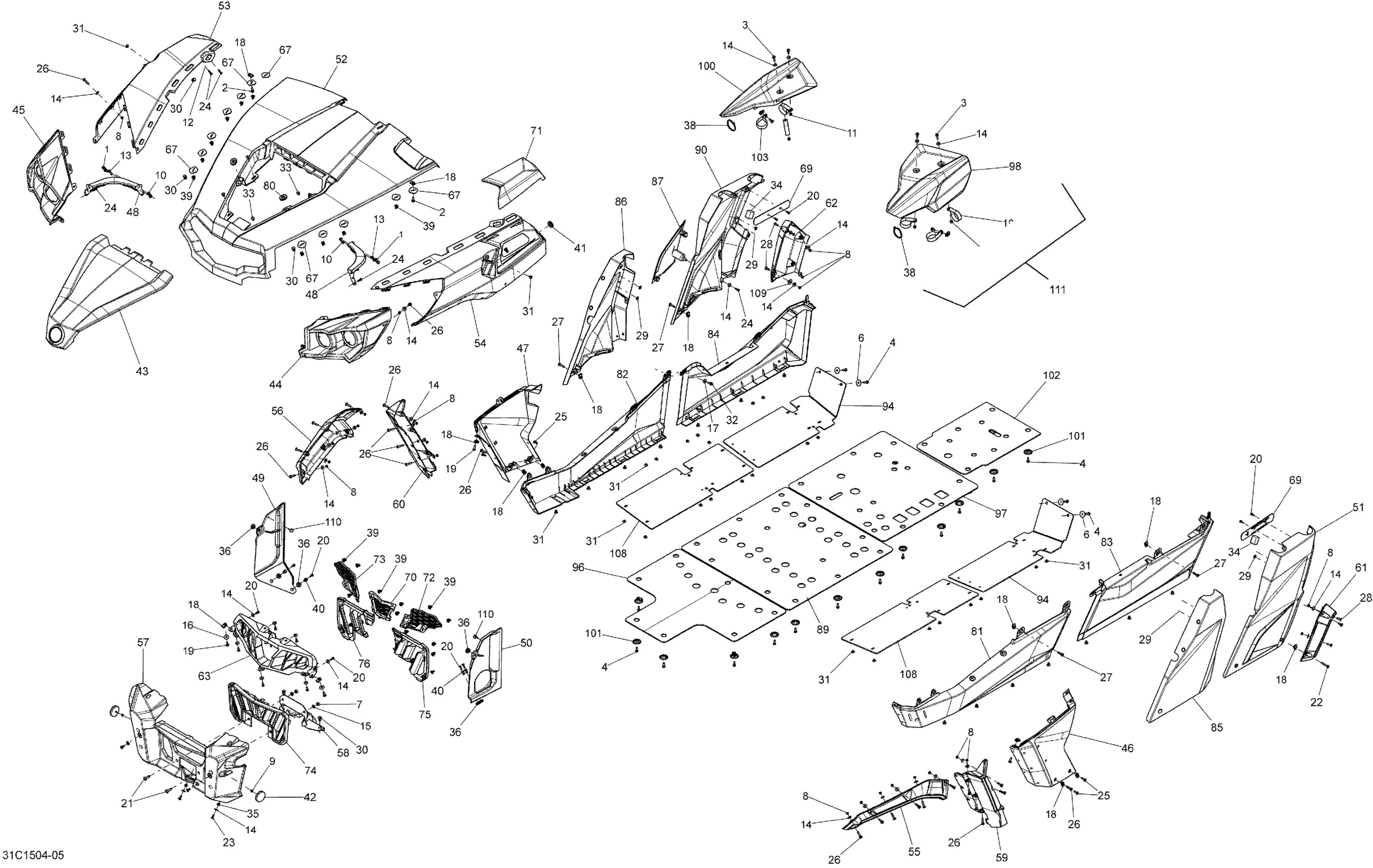

Can-Am Commander MAX 1000_LTD, 2015 09- Body And Accessories _31C1505 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16

207661644

$0.74

2

Hex. Flange Screw M6 X 20

207662044

$2.00

3

Hex. Flange Screw M6 X 20

207662084

$1.69

4

Hexagonal Head Screw

210262050

$2.11

6

Flat Washer

224081301

$0.88

7

Hex. Nut M8

232081414

$0.72

8

Elastic Stop Nut M6

232561434

$1.99

9

Flange Elastic Nut M5

233251434

$2.00

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

11

Hex. Flange Elastic Nut M6

233261494

$1.58

12

Flat Washer M5

234051410

$0.53

13

Stainless Flat Washer M6

234061600

$0.33

14

Stainless Steel Flat Washer

234062670

$2.11

15

Flat Washer 8 mm

234081410

$0.83

16

Flat Washer 8 mm

234082410

$1.47

17

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

18

Panel Nut M6 X 1.0

250100198

$2.11

19

Torx Screw M6 X 20

250000722

$1.68

20

Torx Screw K50 X 16

250000720

$1.69

21

Hex Torx Truss M8 X30

250000745

$3.17

22

Torx Screw M6 X 45

250000215

$1.90

23

Torx Screw M6 X 16

250000755

$0.87

24

Truss Head Torx Screw K50 X 20

250000297

$2.11

25

Torx Truss Screw M6 X 20

250000350

$5.29

26

Stainless, Torx Screw M6 X 30

250000842

$2.11

27

Torx Truss Screw M6 X 30

250000843

$2.11

28

Torx Truss Screw M6 X 20

250000488

$2.11

29

PUSH NUT - Call your local BRP dealership

250100129

Unavailable

30

Tuflok Plastic Rivet

293150230

$1.47

31

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

32

Washer M5

250200025

$0.74

33

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

34

SEAL TRAY - Call your local BRP dealership

293250318

Unavailable

35

Threaded Insert M6 X 1.0

250100242

Unavailable

36

Grommet

709000582

$4.69

38

Tie Wrap 368 mm

293750008

$1.04

39

Edge Clip

517302785

$0.88

40

Knob

517303439

$4.55

41

Grommet

517303756

$4.09

42

Amber Reflector | Except Europe Model

705011222

$14.49

43

PAINTED HYBRID WHITE HOOD - Call your local BRP dealership | White

705011739

Unavailable

43

DEEP PEWTER SATIN REMOVABLE HOOD - Call your local BRP dealership | Model-Deep Pewter Satin

705008348

Unavailable

44

LH Front Facia

705002885

$74.99

45

RH Front Facia

705002886

$74.99

46

PANEL_BODY FL B-341 - Call your local BRP dealership | White

705006037

$339.99

46

Deep Pewter Satin LH Front Lateral Panel | Model-Deep Pewter Satin

705008350

$264.99

47

PANEL_BODY FR B-341 - Call your local BRP dealership | White

705006059

Unavailable

47

PANEL_BODY FR B-371 - Call your local BRP dealership | Model-Deep Pewter Satin

705011643

Unavailable

49

RH Deflector

705002894

$19.99

50

LH Deflector | XT

705005113

$16.99

51

PANEL_BODY REAR L B-341 - Call your local BRP dealership | White

705006744

Unavailable

51

DEEP PEWTER SATIN LH REAR LAT. PANEL - Call your local BRP dealership | Model-Deep Pewter Satin

705008355

Unavailable

52

HOOD B-341 - Call your local BRP dealership | White

705006036

Unavailable

52

DEEP PEWTER SATIN FIXED HOOD - Call your local BRP dealership | Model-Deep Pewter Satin

705008347

Unavailable

53

Painted Hybrid White Rh Front Fender | White

705011766

$409.99

53

DEEP PEWTER SATIN RH FRONT FENDER - Call your local BRP dealership | Model-Deep Pewter Satin

705008343

Unavailable

54

FENDER FL B-341 - Call your local BRP dealership | White

705006774

$769.99

54

DEEP PEWTER SATIN LH FRONT FENDER - Call your local BRP dealership | Model-Deep Pewter Satin

705008341

Unavailable

55

Black, LH Upper Front Mudguard | LTD

705008666

$34.99

56

Black, RH Upper Front Mudguard | LTD

705008667

$34.99

57

Black Front Facia

705008689

$104.99

58

Bottom Deflector | Except XT Models

705003399

$14.99

59

Black, LH Lower Mudguard | LTD

705008668

$34.99

60

Black, RH Lower Mudguard | LTD

705008669

$34.99

61

Black, LH Rear Lower Mudguard | LTD

705008670

$34.99

62

RH Rear Lower Black Mudguard | LTD

705008672

$34.99

63

FASCIA UP B-160 - Call your local BRP dealership

705003629

$20.99

67

Support Plate

705003841

$0.99

69

Support Plate

705004261

$13.49

70

Center Upper Facia Protector

705004336

$4.09

71

COVER_AIR INLET FL B-341 - Call your local BRP dealership | White

705006054

Unavailable

71

Deep Pewter Satin CVT Inlet Cover | Model-Deep Pewter Satin

705008345

$184.99

72

LH Upper Facia Protector

705004350

$4.09

73

RH Upper Facia Protector

705004351

$4.09

74

Lower Front Facia Protector

705004755

$18.49

75

LH Lower Rear Facia Protector

705004819

$18.49

76

RH Lower Rear Facia Protector

705004820

$18.49

80

Oval Washer

705005156

$4.97

81

Black, LH Lower Panel | Model-XT

705007035

$63.99

82

Black, RH Lower Panel | Model-XT

705007036

$62.99

84

Black, RH Rear Lower Panel

705005426

$114.99

85

WHITE LH CENTER CAGE PANEL - Call your local BRP dealership

705008360

Unavailable

85

Deep Pewter Satin LH Center Cage Panel

705008362

$359.99

86

WHITE RH CENTER CAGE PANEL - Call your local BRP dealership

705008363

Unavailable

86

DEEP PEWTER SATIN RH CENTER CAGE PANEL - Call your local BRP dealership

705008365

Unavailable

87

WHITE RH PANEL COVER - Call your local BRP dealership

705008366

Unavailable

87

DEEP PEWTER SATIN RH PANEL COVER - Call your local BRP dealership

705008368

Unavailable

89

Skid Plate

705009447

$121.49

90

WHITE RH REAR LATERAL PANNEL - Call your local BRP dealership

705008353

Unavailable

90

DEEP PEWTER SATIN RH REAR LATERAL PANNEL - Call your local BRP dealership

705008357

Unavailable

94

RH Lateral Skid Plate

705007038

$64.49

96

Middle Protector Plate

705007055

$80.49

97

Rear Protector Plate

705007056

$121.49

98

DEEP PEWTER-CAGE COVER KIT - Call your local BRP dealership

705008584

Unavailable

98

KIT CAGE COVER - Call your local BRP dealership

705008608

Unavailable

100

DEEP PEWTER-CAGE COVER KIT - Call your local BRP dealership

705008584

Unavailable

100

KIT CAGE COVER - Call your local BRP dealership

705008608

Unavailable

101

Cup | Package Hunter

705007171

$7.89

102

Rear Protector Plate

705007227

$31.99

103

"P" Bracket, 2" Dia.

705005626

$27.99

108

Side Protector Plate

705008421

$51.99

109

Hardened Washer

706200281

$2.85

110

Rubber Stopper

708000759

$4.19

111

Not Available As Spare Part - Friction Washer

Unavailable
