Description

Price

3

Hex. Flange Screw M6 X 25

207562544

$1.69

4

Hex. Flange Screw M6 X 20

207662044

$2.00

5

Hex. Flange Nut M6

233061414

$1.68

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

7

Flat Washer 6 mm

234062410

$0.77

8

Norma Clamp

293650077

$7.41

9

Norma Clamp

293650079

$11.60

10

Norma Clamp

293650091

$11.12

11

Norma Spring Clamp

293650213

$3.17

13

Hex. Flange Screw M6 X 25

207562544

$1.69

14

Flat Washer

250200082

$0.42

15

Drain Tube

707800080

$8.29

16

Cover Bracket

707800249

$9.39

17

Retainer Clip

707800278

$13.99

18

Intake Adaptor

707800322

$61.99

19

Air Intake Silencer Cover

707800326

$33.99

20

Air Filter

707800327

$52.99

21

Intake Adaptor

707800329

$48.99

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

23

Intake Adaptor

707800515

$67.99

24

Norma Clamp

293650091

$11.12

25

Air Intake Silencer Base

707800517

$54.99

26

Intake Adaptor

707800541

$61.99

27

Was 707800411 Hose 15.88 mm

219704438

$12.99

28

Rear Support

707800560

$18.55

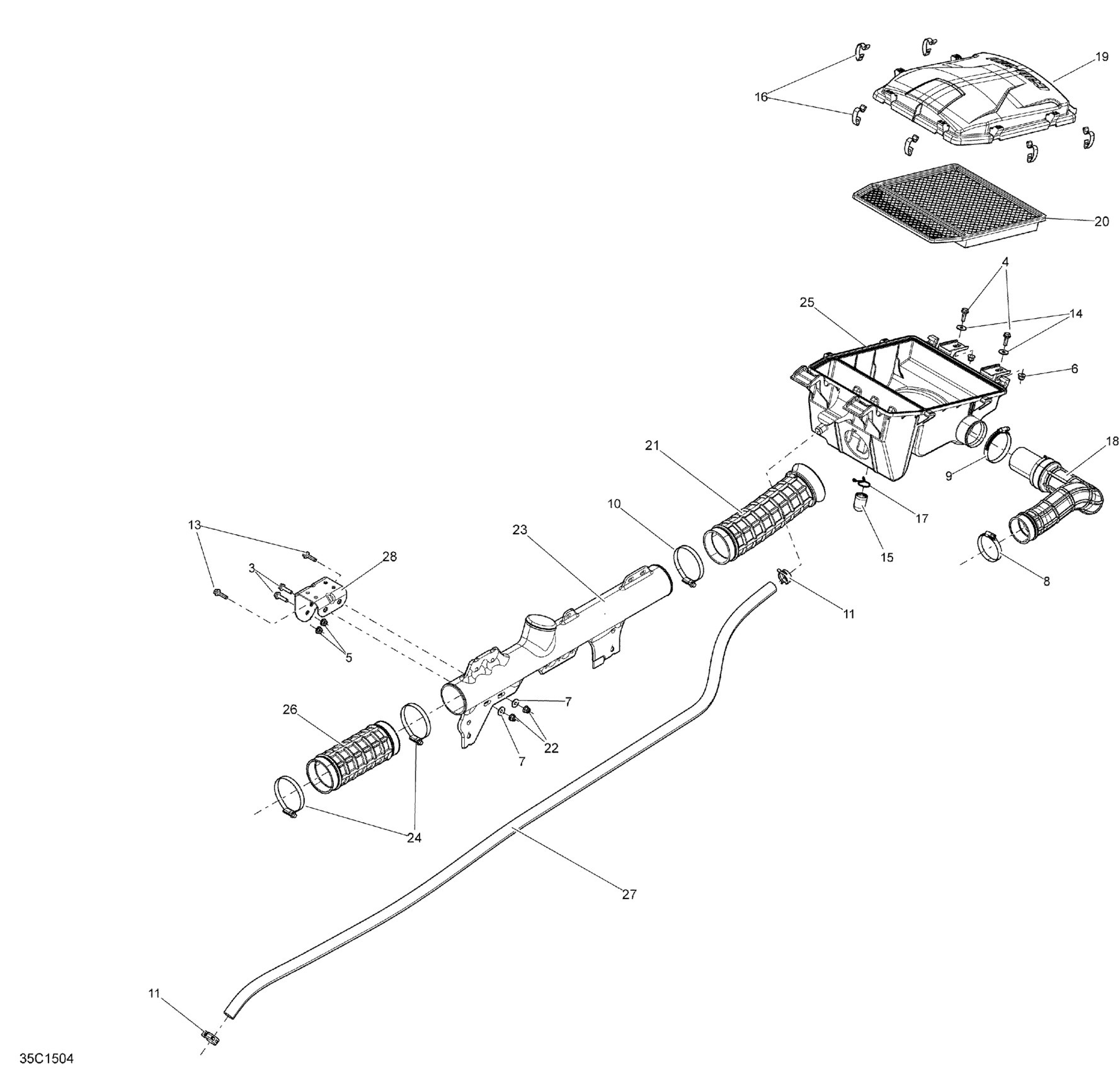

Can-Am Commander MAX 1000_LTD, 2015 02- Air Intake _35C1505 Diagram

Hex. Flange Screw M6 X 25

Hex. Flange Screw M6 X 20

Hex. Flange Nut M6

Hex. Flange Elastic Nut M6 x 1.0

Flat Washer 6 mm

Norma Clamp

Norma Clamp

Norma Clamp

Norma Spring Clamp

Hex. Flange Screw M6 X 25

Flat Washer

Drain Tube

Cover Bracket

Retainer Clip

Intake Adaptor

Air Intake Silencer Cover

Air Filter

Intake Adaptor

Hex. Flange Elastic Nut M6 x 1.0

Intake Adaptor

Norma Clamp

Air Intake Silencer Base

Intake Adaptor

Was 707800411 Hose 15.88 mm

Rear Support
