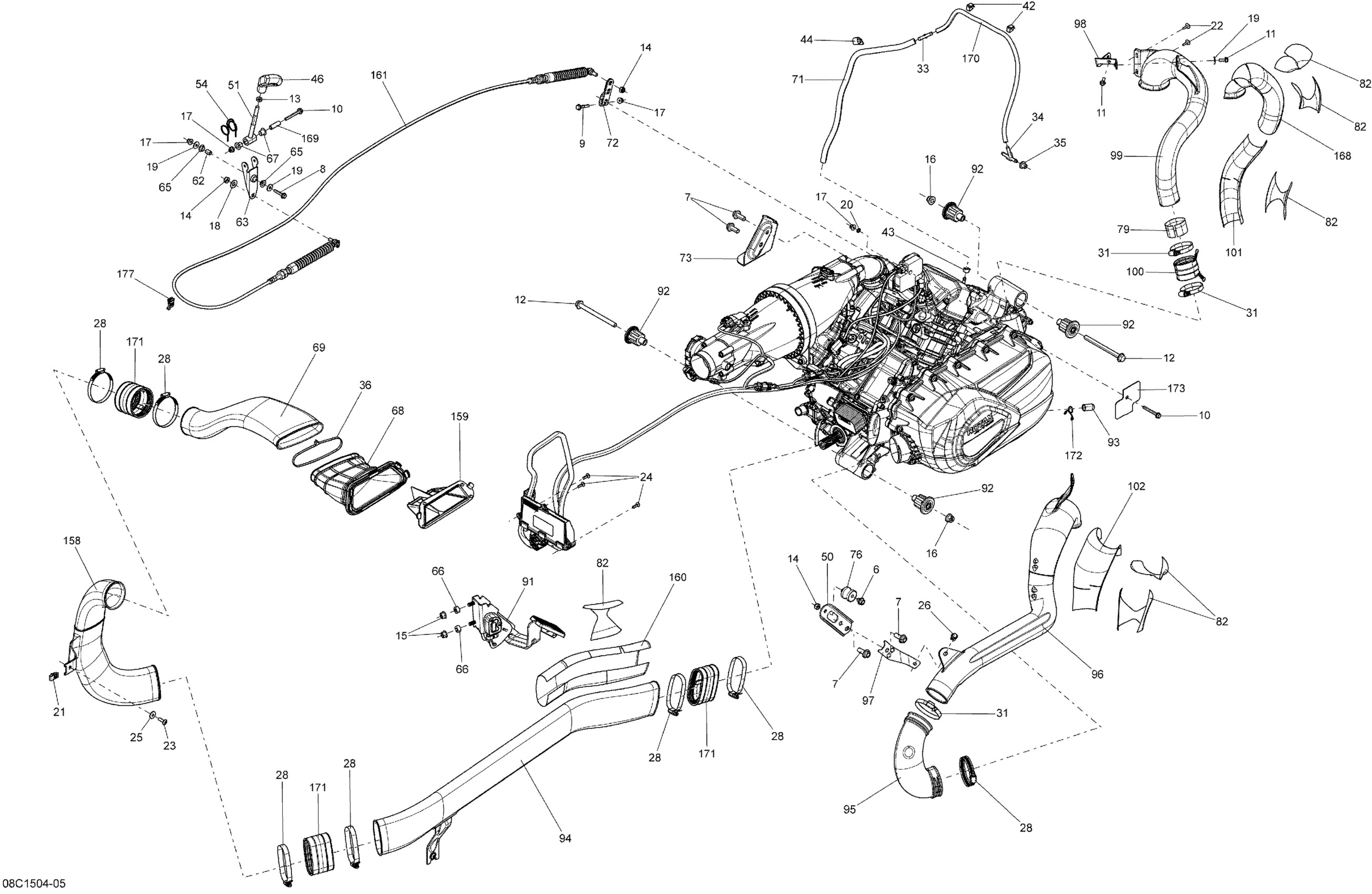

Can-Am Commander MAX 1000_LTD, 2015 01- Engine _08C1505 Diagram

#

Description
Price

6

Flange Screw M8 x 10, Scotch Grip

207581046

$4.86

7

Hex. Flange Screw M10 X 25

207602544

$1.69

8

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

9

Hex. Flange Screw M6 X 35

207663544

$0.90

10

Hex. Flange Screw M6 X 50

207665044

$4.12

11

Hex. Flange Screw M6 X 16

210261650

$1.67

12

Hex. Flange Screw M10 X 125

230602546

$7.41

13

Hex. Jam Nut M8

232180491

$7.51

14

Hex. Elastic Stop Nut M8

232581414

$0.56

15

Hex. Flange Nut M8

233081416

$1.15

16

Hex. Flange Elastic Nut M10

233201436

$2.11

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

Flat Washer 10 mm

234001410

$1.26

19

Flat Washer 6 mm

234062410

$0.77

20

External Serrated Lock Washer 6 mm

234461608

$1.15

21

Panel Nut M6 X 1.0

250100198

$2.11

22

Screw M4 X 16

250000725

$3.49

23

Torx Screw M6 X 20

250000722

$1.68

24

Torx Screw K50 X 16

250000720

$1.69

25

Flat Washer

250200082

$0.42

26

Tuflok Plastic Rivet

293150230

$1.47

28

Norma Clamp

293650091

$11.12

31

Norma Gear Clamp

293650118

$13.16

33

Straight Fitting

293710039

$7.59

34

Y-Fitting

293710059

$9.69

35

Grommet

293720029

$1.59

36

Tie Wrap 368 mm

293750008

$1.04

42

Clip

414227300

$1.67

43

Spring Clamp

414415200

$0.88

44

Open Clamp

518321570

$7.69

46

Lever Handle

707000284

$19.99

50

Upper Engine Bracket

707000707

$8.79

51

Upper Lever Arm

707000711

$39.99

54

Lever Arm Spring

707000750

$2.68

62

Bushing

707000801

$2.68

63

Lower Lever Arm

707000828

$19.99

65

Flanged Bushing

707000847

$1.25

66

Bushing

707000848

$1.35

67

Flanged Bushing

707000869

$2.89

68

Adaptor

707000908

$35.99

69

Primary Air Intake

707000909

$22.49

71

Hose

219704549

$50.99

72

Lever

707000911

$20.49

73

Cable Support | Engine 1000

707000919

$16.87

76

Rubber Isolator

707000949

$11.49

79

Reflector

707000988

$4.14

82

Reflective Sheet

707000991

$10.49

91

Accelerator Pedal

707001166

$274.99

92

Vibration Damper

707001169

$42.99

93

Plug

707001185

$1.15

94

Air Inlet

707001228

$54.99

95

Front Adaptor

707001229

$22.49

96

CVT Outlet

707001230

$49.99

97

Front Support

707001231

$15.81

98

Rear Support

707001232

$10.99

99

CVT Outlet

707001243

$66.99

100

Adaptor

707001274

$16.25

101

Reflector

707001284

$9.23

102

Reflector

707001286

$9.23

158

Air Inlet

707001339

$20.99

159

CVT Filter

707001344

$15.49

160

Reflector

707001346

$30.99

161

Shifting Cable

707001348

$66.99

168

Reflector

707001360

$9.23

169

Bushing

707001376

$5.24

170

Polyurethane Hose 10000Mm Long

219704410

$56.99

171

Flexibale Adaptor

707002585

$10.99

172

Retainer Clip

707800506

$12.63

173

Insulator Pad

710000073

$11.12

177

Clip Tie-Rap

710002899

$8.49
