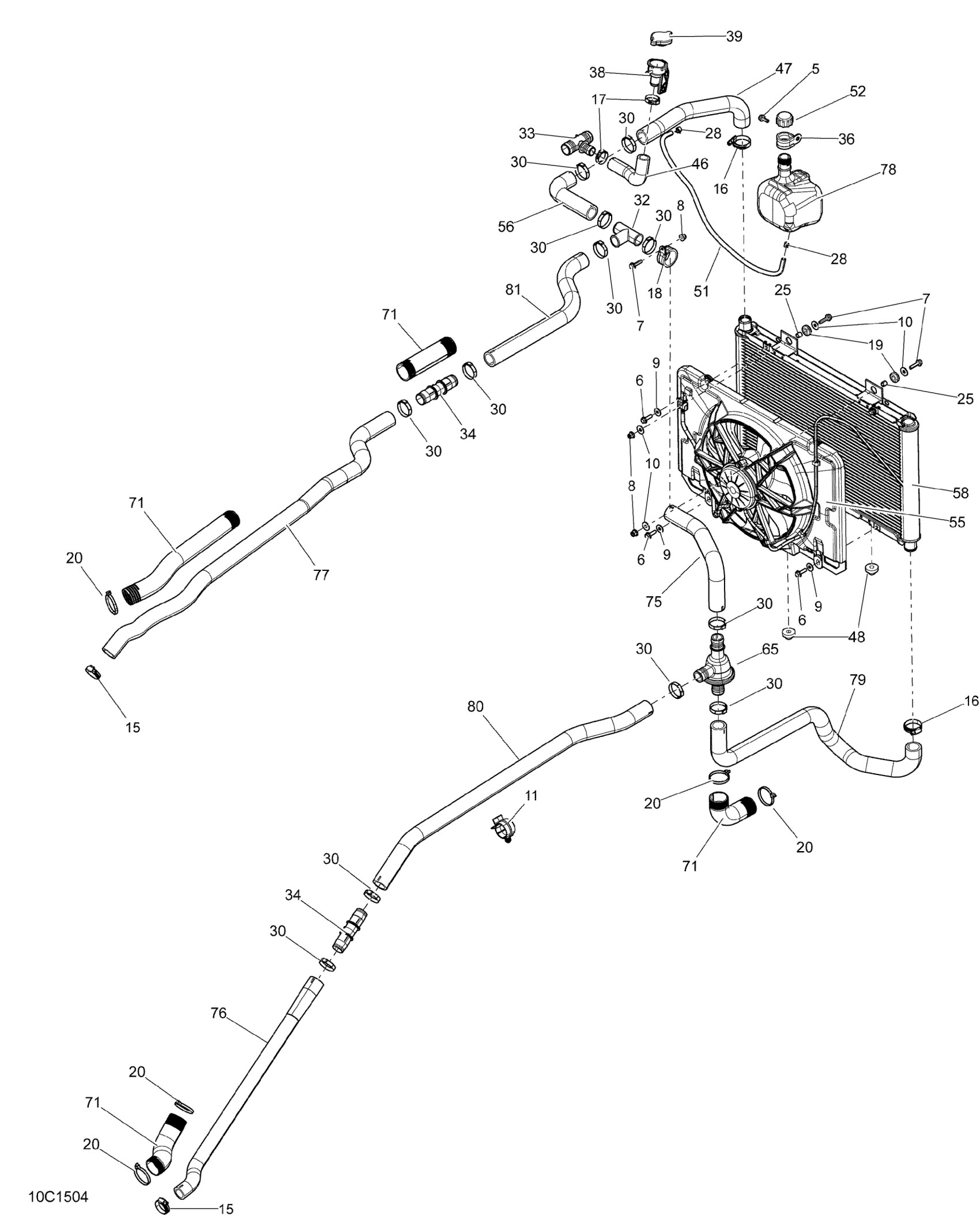

Can-Am Commander MAX 1000_LTD, 2015 01- Cooling System _10C1505 Diagram

#

Description
Price

5

Hex. Flange Screw M6 X 16

207661644

$0.74

6

Hex. Flange Screw M6 X 20

207662044

$2.00

7

Hex. Flange Screw M6 X 25

207662534

$2.11

8

Flange Elastic Nut M6

233261434

$4.44

9

Flat Washer 6 mm

234062410

$0.77

10

Flat Washer

250200082

$0.42

11

Retainer

275500590

$9.69

15

Norma Gear Clamp

293650098

$4.44

16

Norma Gear Clamp

293650098

$4.44

17

Crimp Clamp

293650099

$4.29

18

Hose Retainer

293650218

$9.39

19

Grommet

709000582

$4.69

20

Tie Wrap 368 mm

293750008

$1.04

25

Bushing

293900105

$7.65

28

Spring Clamp

414554800

$0.88

30

Gear Clamp

509000162

$7.29

32

T-Fitting

509000219

$15.89

33

T-Fitting

509000372

$10.33

34

Fitting

509000914

$7.59

36

Hose Anchor

709200036

$11.12

38

Filler Neck

709200179

$18.49

39

Radiator Pressure Cap

709200207

$25.49

46

Filler Neck Hose

709200264

$11.07

47

Radiator Outlet Hose

709200265

$12.63

48

Grommet

709200285

$9.69

51

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

52

Tank Cap

709200587

$5.40

55

Fan Ass'y

709200566

$279.99

56

Intermediate Hose

709200904

$23.99

58

Radiator

709200395

$370.99

65

Thermostat

709200406

$98.99

71

Tubing 35 MM 1000MM Long

219704428

$10.99

75

Hose

709200447

$22.49

76

Pump Hose

709200496

$27.99

77

Hose

709200497

$48.99

78

Coolant Tank Ass'y

709200624

$27.99

79

Hose_Radiator In

709200909

$21.99

80

Pump Hose

709200519

$27.99

81

Intermediate Hose

709200520

$24.99
