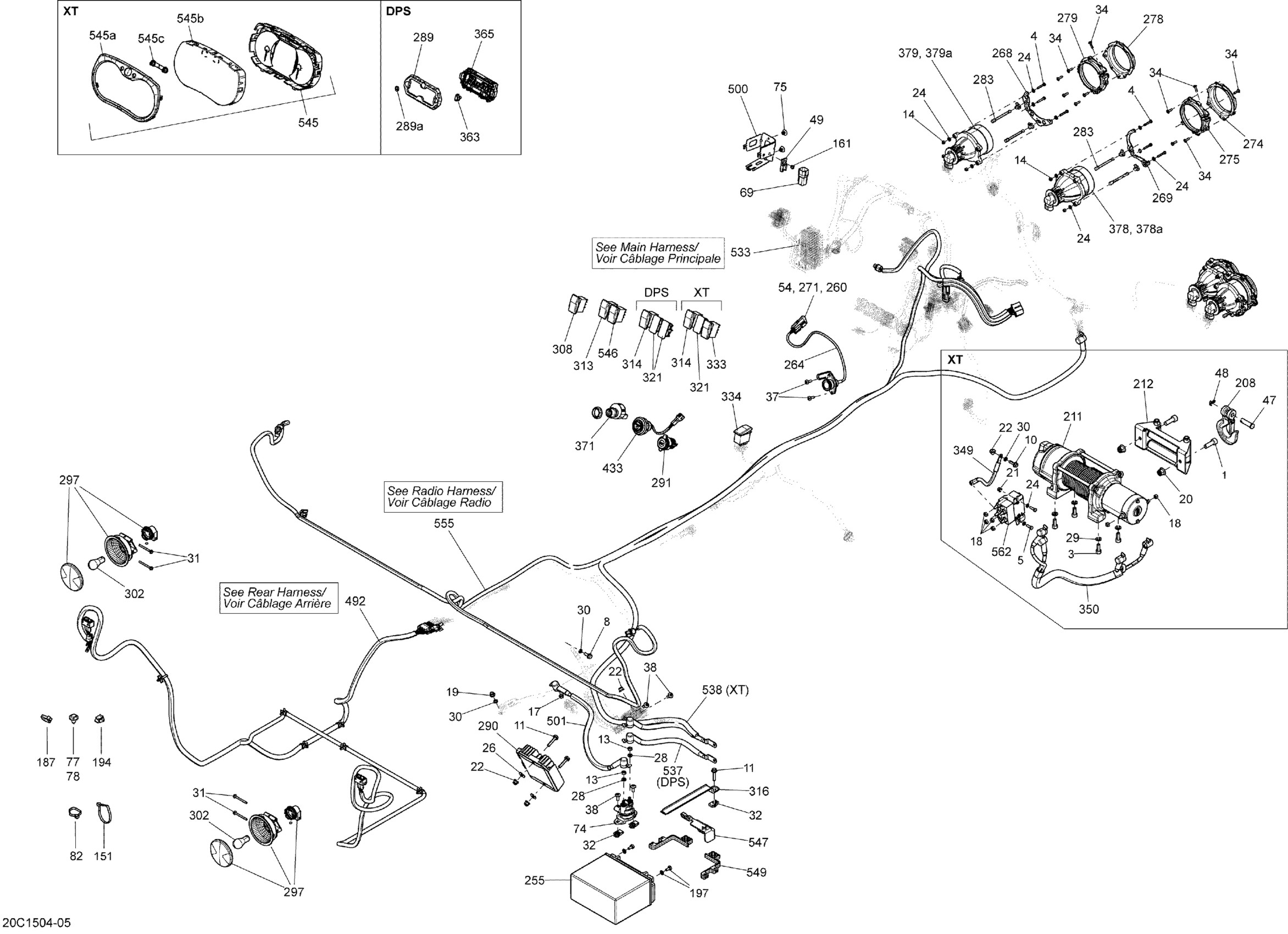

Can-Am Commander MAX 1000_DPS_XT, 2015 10- Electrical System _20C1504 Diagram

Socket Screw M10 x 30 | XT

205003044

$3.17

Socket Head Screw M8 X 20

205082044

$1.15

Hex. Screw M4 X 25

207142544

$2.00

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

Hex. Nut M6

232061600

$1.15

Elastic Stop Nut M4

232541414

$0.58

Elastic Stop Nut M6

232561414

$0.55

Elastic Stop Nut M6

232561434

$1.99

Hex. Flange Nut M6

233061414

$1.68

Hex. Flange Elastic Nut M10

233201414

$1.58

Elastic Flange Nut M5

233251494

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Flat Washer M5

234051410

$0.53

Flat Washer 6 mm

234062410

$0.77

Lock Washer Helical M6

234161601

$1.15

Lock Washer 8 mm

234181401

$0.92

External Serrated Lock Washer 6 mm

234461608

$1.15

Hex. Screw K50 X 45

241154540

$2.11

Panel Nut M6 X 1.0

250100198

$2.11

Phillips Screw K40 X 16

250000723

$0.98

Torx Screw K50 X 16

250000720

$1.69

Torx Head Screw M6 X 16

250000717

$2.11

Clevis Pin

250400021

$13.18

Cotter Pin

250400022

$9.69

Clip

270000141

$11.49

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

Diagnostic Connector

278002704

$19.49

Starter Relay

278003012

$42.49

Pop Rivet 3/16"

293150103

$0.55

Mount Dart

293730040

$1.04

Mount Dart

293730040

$1.04

Tie Wrap 368 mm

293750008

$1.04

Tie-Rap 173 mm

293750009

$1.04

Pop Rivet 3/16"

390402400

$0.35

Tie-Rap 180 mm

414115200

$0.11

Clip

414227300

$1.67

Battery Bolt Kit

250000282

$7.29

Winch Hook Kit

705014949

$24.99

Winch | Package-XT, XTP

705008547

$739.99

WINCH CABLE GUIDE - Call your local BRP dealership | XT

715001119

Unavailable

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

Clip

710000992

$4.29

Winch Connector

710001023

$51.99

RH High Light Support

710001115

$5.29

LH High Light Support

710001036

$5.29

RH Low Light Support

710001094

$9.09

LH Low Light Support

710001037

$9.09

Connector Ass'y | XT, Includes 55 to 57

710001059

$9.10

RH Low Front Housing

710001081

$19.99

LH Low Front Housing

710001083

$19.99

RH Low Rear Housing

710001082

$12.99

LH Low Rear Housing

710001084

$12.99

RH High Front Housing

710001085

$19.99

LH High Front Housing

710001087

$19.99

RH High Rear Housing

710001086

$12.99

LH High Rear Housing

710001088

$12.99

Setting Screw

710001147

$12.71

Trim Ring Ass'y

710001183

$19.99

BRP Logo13 mm

704904615

$13.49

Voltage Regulator | XT, XTP, LTD

710001191

$185.49

DC Outlet

710001248

$37.99

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

Bulb

520000758

$9.10

Hi/Low Switch | Except Europe

710001725

$21.49

4X4 Switch

710001737

$31.99

Switch DPS

710001781

$22.99

Battery Holder

710001916

$21.99

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

Switch Winch

710002052

$28.49

Switch, Over ride

710002053

$19.49

NEGATIVE CABLE - Call your local BRP dealership | XT

710004386

Unavailable

Electrical Winch Cable | XT

710004387

$49.99

Button

715900265

$13.71

Speedometer

710005087

$399.99

Ignition Switch

710008400

$78.49

Low Beam Ass'y | Includes 1 to 2

710002524

$104.99

Halogen Bulb

415129249

$41.49

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

Halogen Bulb

415129249

$41.49

Engine Start Button

710002594

$60.49

Rear Harness | Except Europe

710003219

$159.99

Fuse Holder

710003335

$10.11

Positive Cable

710004390

$36.99

Cablage Ass. *Harness-Assy.

710004333

$1,029.99

Positive Cable | Model-DPS

710004393

$35.99

CABLE NEG POS - Call your local BRP dealership | Model-XT

710004394

Unavailable

Speedometer Ass'y | Model-XT

710005116

$439.99

Gauge Ring

415129348

$13.99

Lens | XTP

415129349

$24.49

Speedometer Button | XTP

415129355

$15.80

Switch PPS Sport

710003541

$19.49

Cap

710003582

$11.99

Battery Rubber Pad

710003602

$12.99

Solenoid Kit | XT

715007084

$202.49
