Description

Price

1

Hex. Screw M6 X 65

207066544

$0.46

2

Hex. Screw M6 X 90

207069044

$4.87

3

Hex. Flange Screw M6 X 16

207661644

$0.74

4

Hex. Flange Screw M6 X 20

207662044

$2.00

5

Hex. Flange Screw M6 X 50

207665044

$4.12

6

Hex. Flange Screw M6 X 95

207669584

$3.38

7

Hex. Flange Screw M8 X 45

207684586

$3.17

8

Carriage Bolt M8 X 70

207787044

$1.37

9

Flat Washer

224061121

$0.53

10

Hex. Flange Screw M6 X 130

230663084

$3.38

11

Hex. Flange Screw M8 X 130

230683034

$7.51

12

Hex. Jam Nut M8

232180600

$0.67

13

Domed Nut M6

232361493

$2.11

14

Elastic Stop Nut M5

232551414

$0.87

15

Elastic Stop Nut M6

232561434

$1.99

17

Flange Elastic Nut M5

233251434

$2.00

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

19

Hex. Flange Elastic Nut M8

233281414

$1.47

20

Flat Washer 6 mm

234061410

$1.36

21

Flat Washer 6 mm

234062410

$0.77

22

Stainless Steel Flat Washer

234062670

$2.11

23

Flat Washer 8 mm, Nylon

234081100

$1.39

24

Lock Washer 8 mm

234181401

$0.92

25

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

26

Panel Nut M6 X 1.0

250100198

$2.11

27

Panel Nut M5 X 0.8

250000958

$4.23

28

Torx Screw M6 X 20

250000722

$1.68

29

Torx Truss Screw M6 X 16

250000721

$1.69

30

Torx Screw M5 X 20

250000724

$1.69

31

Torx Screw M5 X 14

250000742

$1.47

32

Torx Screw K50 X 16

250000720

$1.69

33

Torx Screw M6 X 45

250000215

$1.90

34

Torx Truss Screw M6 X 50

250000749

$3.17

35

Torx Screw M6 x 25

250000284

$2.11

36

Stainless, Torx Screw M6 X 30

250000842

$2.11

37

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

39

Pop Rivet 3/16"

293150100

$1.09

40

Was 293250240 Neoprene Seal

219704451

$60.49

41

Pop Rivet 3/16"

293150103

$0.55

42

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

43

Pop Rivet 3/16 | XT

293150190

$5.89

44

Frame Rubber Bumper

293720091

$9.39

46

Rubber Bumper

293830005

$8.09

47

Pin

414079100

$2.39

48

Hair Pin

414575600

$1.89

49

Housing Half

506150400

$7.62

50

Housing Bushing

506150500

$7.99

51

Stopper Plate

506150600

$4.39

52

Red Reflector

705011221

$14.49

54

LH Upper Rear Mudguards | LTD

705008671

$34.99

54

RH Upper Rear Mudguards | LTD

705008673

$34.99

55

Half Ring

705500033

$8.29

56

Rubber Stopper

708000884

$6.89

57

CAMO OUTSIDE TOP PANNEL - Call your local BRP dealership | XT Camo

708300442

Unavailable

57

Yellow Outside Top Pannel | X, Yellow

708301256

$164.99

57

Timeless Black, Top Panel

708302403

$399.99

58

Inside Top Pannel

708300053

$139.99

59

Outside Bottom Pannel Ass'y

715002365

$154.99

60

INSIDE BOTTOM PANNEL - Call your local BRP dealership

708300073

Unavailable

61

LH Rear Facia

708301383

$23.99

62

RH Rear Facia

708301384

$23.99

63

Separator Pannel Ass'y | Includes 16 to 17

708300131

$279.99

64

Box Retainer

708300136

$8.69

65

Top Rod

708300160

$3.39

66

LH Latch

708300162

$23.99

67

Lower Bottom Rod

708300164

$3.39

68

Pivot Bushing

708300172

$4.79

69

LH Tie Rod Clip

708300182

$2.89

70

Retaining Plate

708300183

$9.69

71

Activator

708300184

$9.29

72

Bracket Pivot

708300185

$4.79

73

RH Latch

708300201

$23.99

74

RH Tie Rod Clip

708300202

$2.89

75

Retaining Plate Support

708300206

$5.19

76

Adjustable Stopper Plate

708300210

$4.79

81

Spring

708300219

$4.79

82

LH Painted Rail Cap | Except XT

708300333

$15.99

82

RH Painted Rail Cap | Except XT

708300334

$16.99

84

LH Welded Rail | XT

708300231

$74.99

84

RH Welded Rail | XT

708300232

$74.99

86

LH Rail Cover

708301380

$3.69

86

RH Rail Cover

708301381

$3.69

87

LH Latch Lever Support

708300278

$9.69

88

Upper Pivot Support

708300345

$4.79

89

Front Support

708301633

$28.99

90

Plate Support | Europe

708300349

$43.99

91

RH Latch Lever Support

708300351

$9.69

92

Cap Latch Lever

708300358

$6.59

93

LH Upper Support

708300359

$10.49

94

RH Upper Support

708300360

$9.49

95

LH Lower Support

708300361

$10.99

96

RH Lower Support

708300362

$9.69

97

Bushing

708300365

$5.89

98

REFLECTOR SUPPORT - Call your local BRP dealership | Europe

708300367

Unavailable

99

Clamp Reatiner

708300392

$2.68

100

Handle

708300398

$13.99

102

Spring

708300454

$4.79

103

Spacer

708300470

$7.73

106

Left Box Kit

715002361

$214.99

108

RIGHT BOX KIT - Call your local BRP dealership

715002915

Unavailable

110

Bushing

708300735

$13.49

111

Spacer

708300736

$9.69

112

Bushing

708300737

$5.99

113

Cargo Handle Ass'y

708300751

$72.99

114

Lower Retainer Cable

708300762

$16.99

115

Was 293250240 Neoprene Seal

219704451

$60.49

116

Upper Retainer Cable

708300763

$33.99

117

Black Welded Lateral Support

708300879

$49.99

118

Black Lateral Support

708300877

$184.99

120

Heat Deflector

708300780

$13.99

121

Heat Deflector Sheet

708300809

$10.99

122

Heat Deflector Sheet

708300810

$10.99

123

Heat Deflector Sheet

708300811

$9.69

124

Heat Deflector Sheet

708300812

$10.99

128

FENDER REAR L B-005 - Call your local BRP dealership | XT Camo

708300834

Unavailable

128

Yellow LH Rear Fender | STD

708301242

$139.99

128

Brush Aluminum LH Rear Fender

708301312

$409.99

128

FENDER REAR R B-005 - Call your local BRP dealership | XT Camo

708300835

Unavailable

128

YELLOW RH REAR FENDER - Call your local BRP dealership | STD

708301243

Unavailable

128

Brush Aluminum RH Rear Fender

708301313

$409.99

129

Black Box Support

708300875

$309.99

130

Spacer

708300902

$9.69

131

Spacer

708301059

$19.49

132

Gaz Shock

708301136

$39.99

133

Push Nut

732610072

$2.19

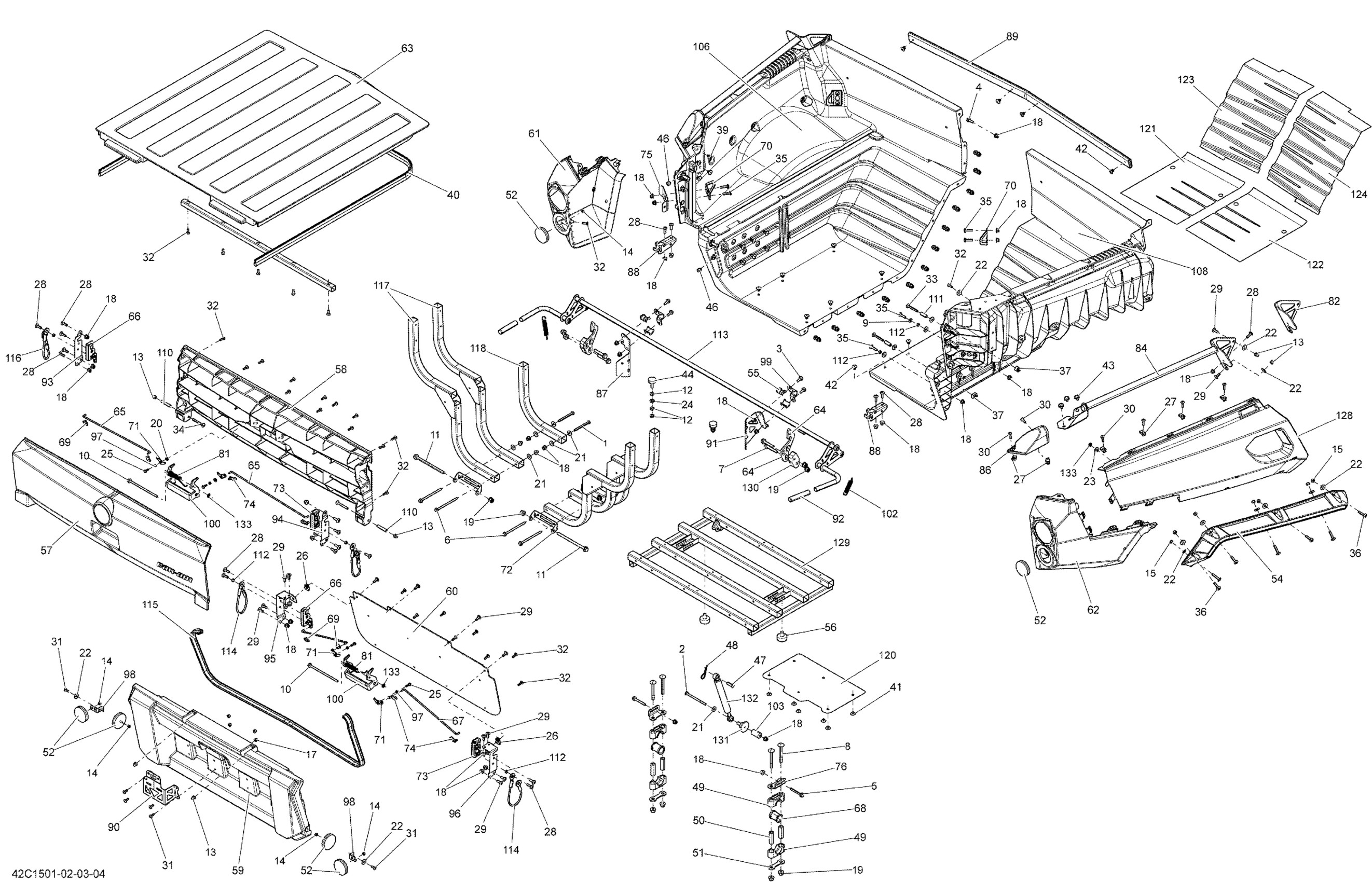

Can-Am Commander MAX 1000_DPS_XT, 2015 09- Rear Cargo Box _42C1504 Diagram
