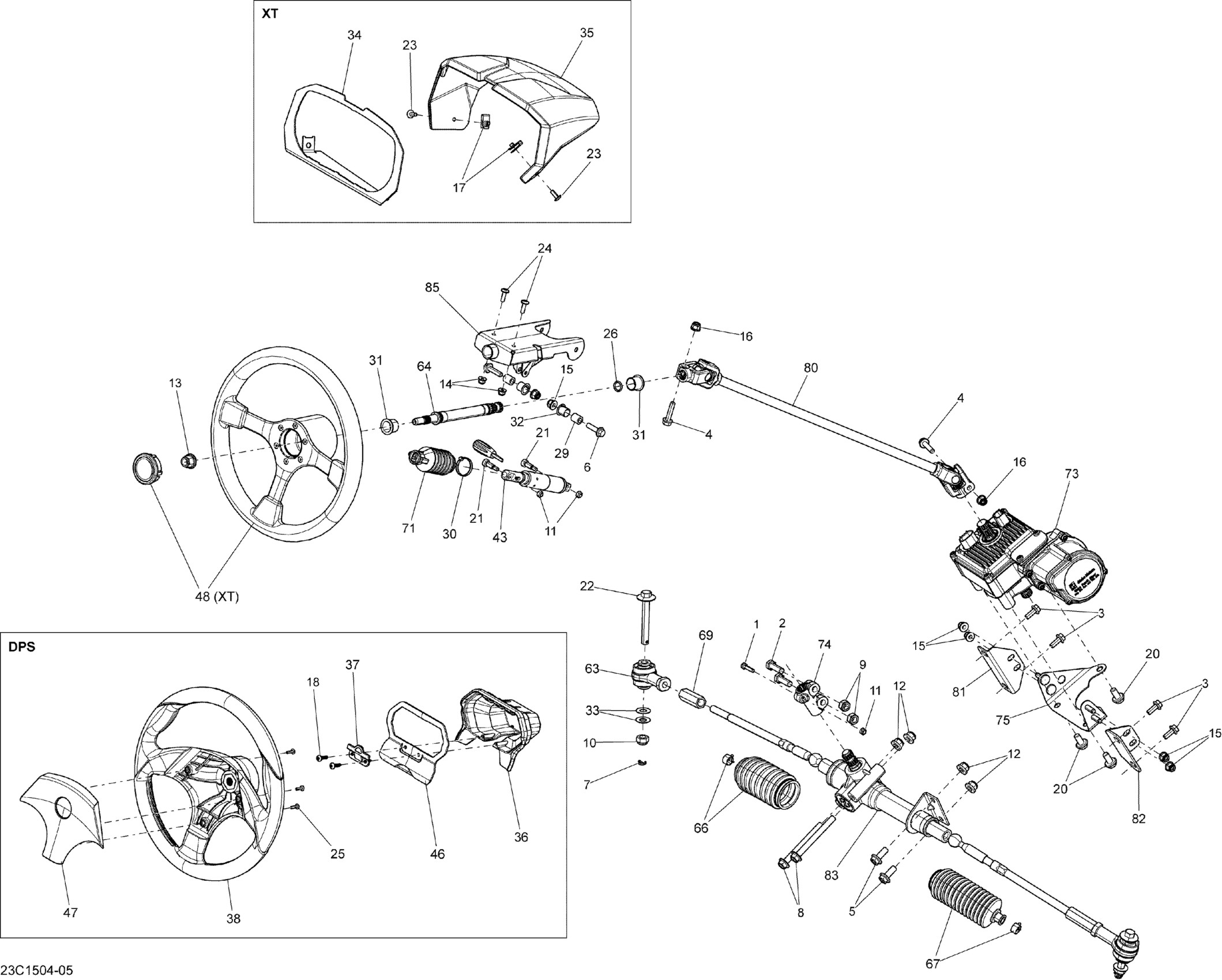

Can-Am Commander MAX 1000_DPS_XT, 2015 07- Steering _23C1504 Diagram

#

Description
Price

1

Hex. Screw M6 X 30

207063044

$1.26

2

Hex. Screw M10 X 35

207103586

$1.15

3

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

4

Hex. Flange Screw M8 X 35, Scotch Grip | Sub 250000986

207583586

Unavailable

5

Hex. Flange Screw M10 X 25

207602546

$2.11

6

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

7

Cotter Pin

211400017

$0.33

8

Hex. Screw M10 X 100, Scotch Grip

230500046

$7.41

9

Elastic Stop Nut M10

232500416

$1.90

10

Elastic Stop Nut M12

232521416

$1.69

11

Elastic Stop Nut M6

232561434

$1.99

12

Hex. Flange Elastic Nut M10

233201436

$2.11

13

Hex. Flange Elastic Nut M12

233221414

$7.69

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

15

Hex. Flange Elastic Nut M8

233281414

$1.47

16

Hex. Elastic Flange Nut M8

233281416

$1.48

17

Panel Nut M6 X 1.0

250100198

$2.11

18

Truss Head Torx Screw K50 X 20

250000297

$2.11

20

Hex. Flange Screw M10 X 20, Scotch Grip

250000601

$3.91

21

Socket Head Screw M8 X 16

250000669

$3.17

22

Hexagonal Screw M12 X 88

250000657

$6.77

23

Torx Truss Screw M6 X 16

250000721

$1.69

24

Torx Screw M6 X 20

250000722

$1.68

25

Phillips Screw K40 X 16

250000723

$0.98

26

O-Ring

293300144

$3.82

29

Bushing

293900106

$4.55

30

Tie-Rap 180 mm

414115200

$0.11

31

Steering Bushing

709402725

$3.28

32

Bushing

705600799

$3.72

33

Hardened Washer

706200281

$2.85

34

Cluster Support | X, XT

707900013

$16.49

35

Upper Cluster Cover | X, XT

707900124

$16.49

36

Speedometer Cover

709400514

$16.99

37

Latch Indicator Cover

709400573

$11.99

38

Steering Wheel | STD

709400650

$137.49

43

Adjustment Cylinder

709402506

$72.99

46

Cluster Support | STD

709400760

$21.99

47

Steering Center | STD

709400780

$13.49

48

STEERING WHEEL KIT - Call your local BRP dealership | X, XT Includes 3 to 5

715001134

$194.99

63

Ball Joint

709401134

$52.99

64

Steering Shaft

709401167

$48.99

66

Boot Kit, Pinion Side

715900235

$54.99

67

Boot Kit, Tube Side

715900236

$54.99

69

Nut Tie Rod End

715900237

$14.30

71

Boot Tube Side

709401232

$18.99

73

Power Steering

709401406

$2,009.99

74

COUPLING - Call your local BRP dealership

709401294

Unavailable

75

SUPPORT - Call your local BRP dealership

709401296

Unavailable

80

STEERING COLUMN - Call your local BRP dealership

709401326

Unavailable

81

LH DPS SUPPORT - Call your local BRP dealership

709401336

Unavailable

82

RH DPS SUPPORT - Call your local BRP dealership

709401337

Unavailable

83

Rack And Pinion Steering | Package-XT

709401390

$423.99

85

Painted Steering Wheel Support

709401391

$85.99
