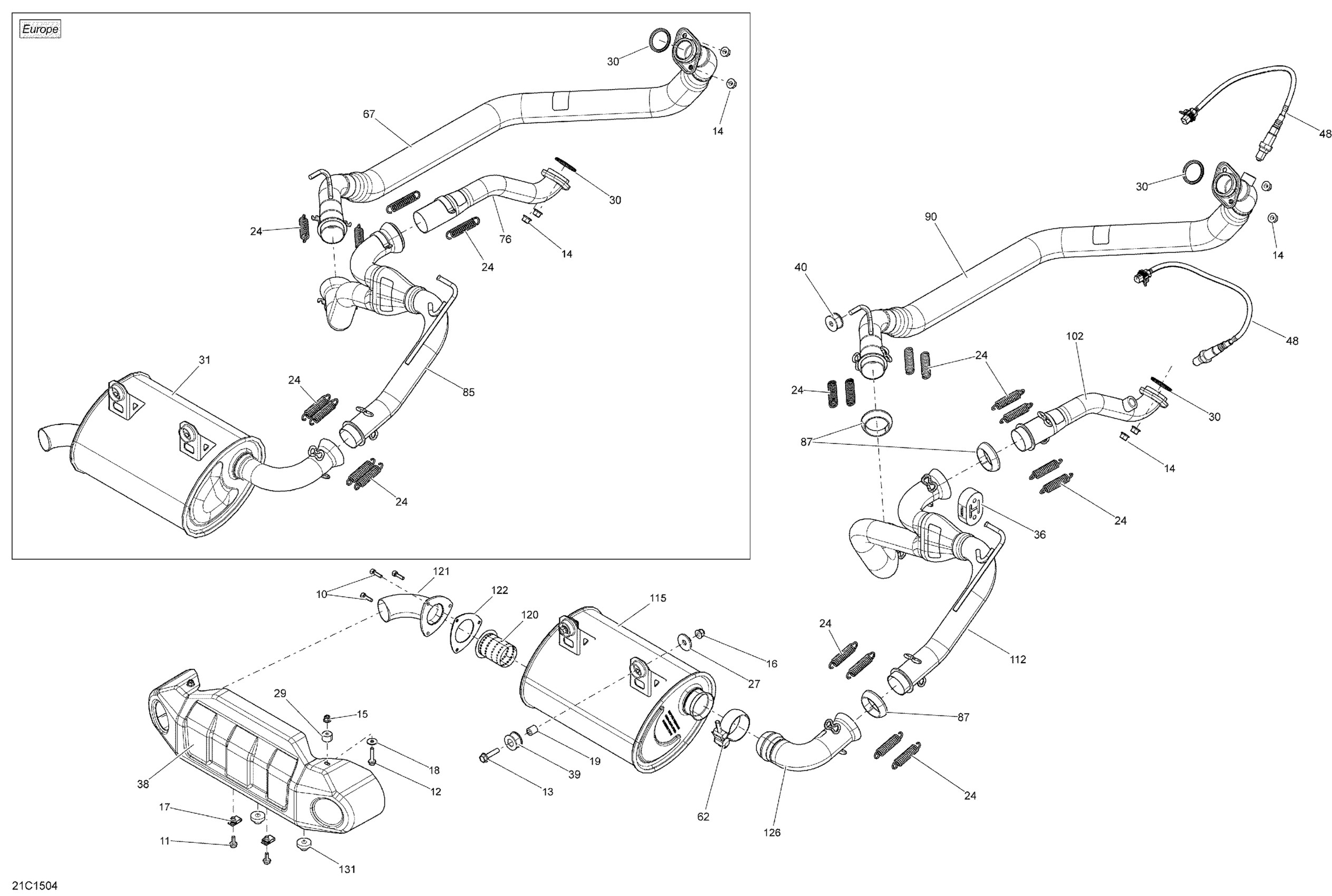

Can-Am Commander MAX 1000_DPS_XT, 2015 01- Exhaust System _21C1504 Diagram

#

Description
Price

10

Socket Head Screw M6 X 20

205062060

$2.32

11

Hex. Flange Screw M6 X 16

207661644

$0.74

12

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

13

Hex. Flange Screw M8 X 35

207683544

$1.69

14

Hex. Flange Nut M8

233081416

$1.15

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

16

Hex. Flange Elastic Nut M8

233281414

$1.47

17

Panel Nut M6 X 1.0

250100198

$2.11

18

Flat Washer

250200082

$0.42

19

Bushing

293900106

$4.55

24

Spring

415107100

$6.35

27

Washer

503032900

$3.28

29

Bushing

707000882

$4.29

30

Gasket

707600317

$11.60

31

MUFFLER_EXHAUST ASSY - Call your local BRP dealership | Europe, Includes 12 to 16

707600753

Unavailable

36

Rubber Bumper

707600638

$15.81

38

Deflector

707600675

$43.99

39

Vibration Damper

707603323

$11.65

40

Anti-Vibration Rubber

707600702

$8.57

48

Oxygen Sensor

707600872

$144.99

62

Exhaust Clamp

707600980

$24.99

67

Front Head Pipe

707601013

$269.99

76

Rear Head Pipe

707601016

$264.99

85

Link Head Pipe

707601020

$269.99

87

Exhaust Gasket

707601033

$13.77

90

Front Head Pipe | Except Model-Europe

707601204

$269.99

102

Rear Head Pipe | Except Model-Europe

707601206

$269.99

112

Link Head Pipe | Except Model-Europe

707601207

$269.99

115

Muffler Ass'y | (February 2014 and After) Except Model- Europe, Includes 39a To 39d

707601442

$847.49

120

Spark Arrestor

707601803

$49.99

121

Muffler Outlet End Piece

715900091

$35.99

122

Gasket

715900090

$13.69

126

LINK HEAD PIPE - Call your local BRP dealership

707601327

Unavailable

131

Grommet

709200285

$9.69
