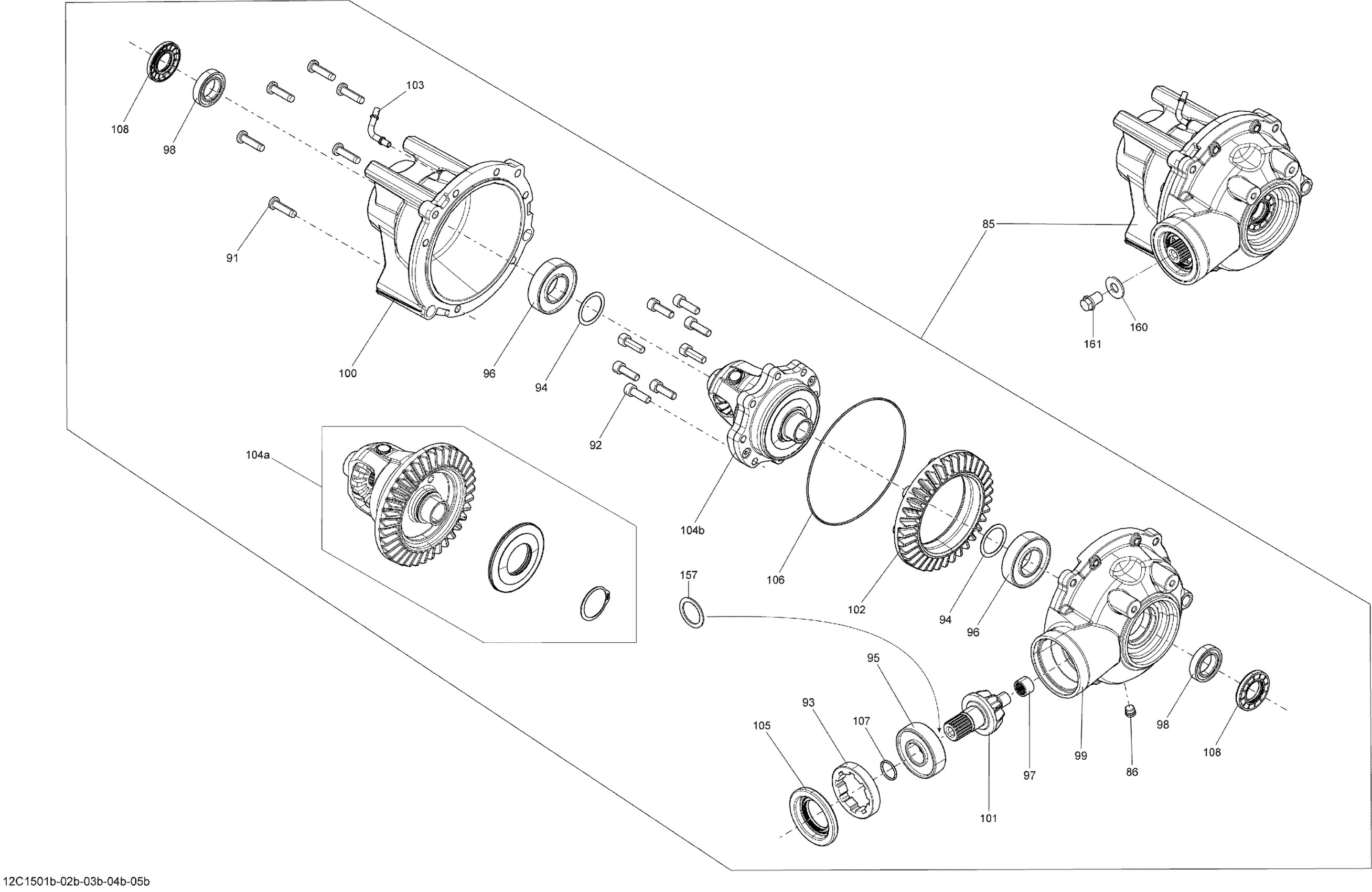

Can-Am Commmander 1000_LTD, 2015 07- Drive System, Front _Differential_12C1503b Diagram

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,789.99

Drain Plug | 4X4

705500894

$11.49

Drain Plug | After May 30, 2014

705501885

$14.22

Screw | 4X4

705401601

$10.49

Screw | After May 30, 2014

705401602

$6.19

Nut | 4X4

705401603

$35.99

Shim | 4X4

705401604

$57.99

Ball Bearing | 4X4

705500260

$31.99

Ball Bearing | After May 30, 2014

705401605

$31.99

Ball Bearing | 4X4

705401606

$51.99

Needle Bearing | 4X4

705500261

$19.99

Ball Bearing | After May 30, 2014

705402848

$49.99

Ball Bearing | 4X4

293350044

$31.99

Ball Bearing | After May 30, 2014

705401608

$51.99

FRONT COVER - Call your local BRP dealership

705401136

Unavailable

Front Pinion Cover | After May 30, 2014

705401792

$149.99

FRONT COVER - Call your local BRP dealership

705400762

Unavailable

Front Cover | After May 30, 2014

705401610

$149.99

10 TEETH PINION - Call your local BRP dealership

705501588

Unavailable

Pinion 10 Teeth | After May 30, 2014

705402841

$219.99

Gear 36 Teeth | After May 30, 2014

705401612

$409.99

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

Vent Valve | After May 30, 2014

705401613

$16.49

DIFFERENTIAL KIT - Call your local BRP dealership

703500872

Unavailable

Differential | Package-DPS, XT, XTP

705402182

$1,128.49

Oil Seal | 4X4

705401481

$19.49

Oil Seal | After May 30, 2014

705401615

$19.49

Seal | 4X4

705500265

$18.76

Seal | After May 30, 2014

705401616

$14.28

O-Ring | 4X4

705500267

$7.65

O'Ring | After May 30, 2014

705401617

$7.20

Gasket | 4X4

705401618

$18.49

Pinion Gear Shim 1.67 mm

705502061

$18.99

Pinion Gear Shim

705501162

$16.49

Flat Washer M12

250200102

$2.11

Flat Washer M10 | 4X4

250200014

$1.49

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11
