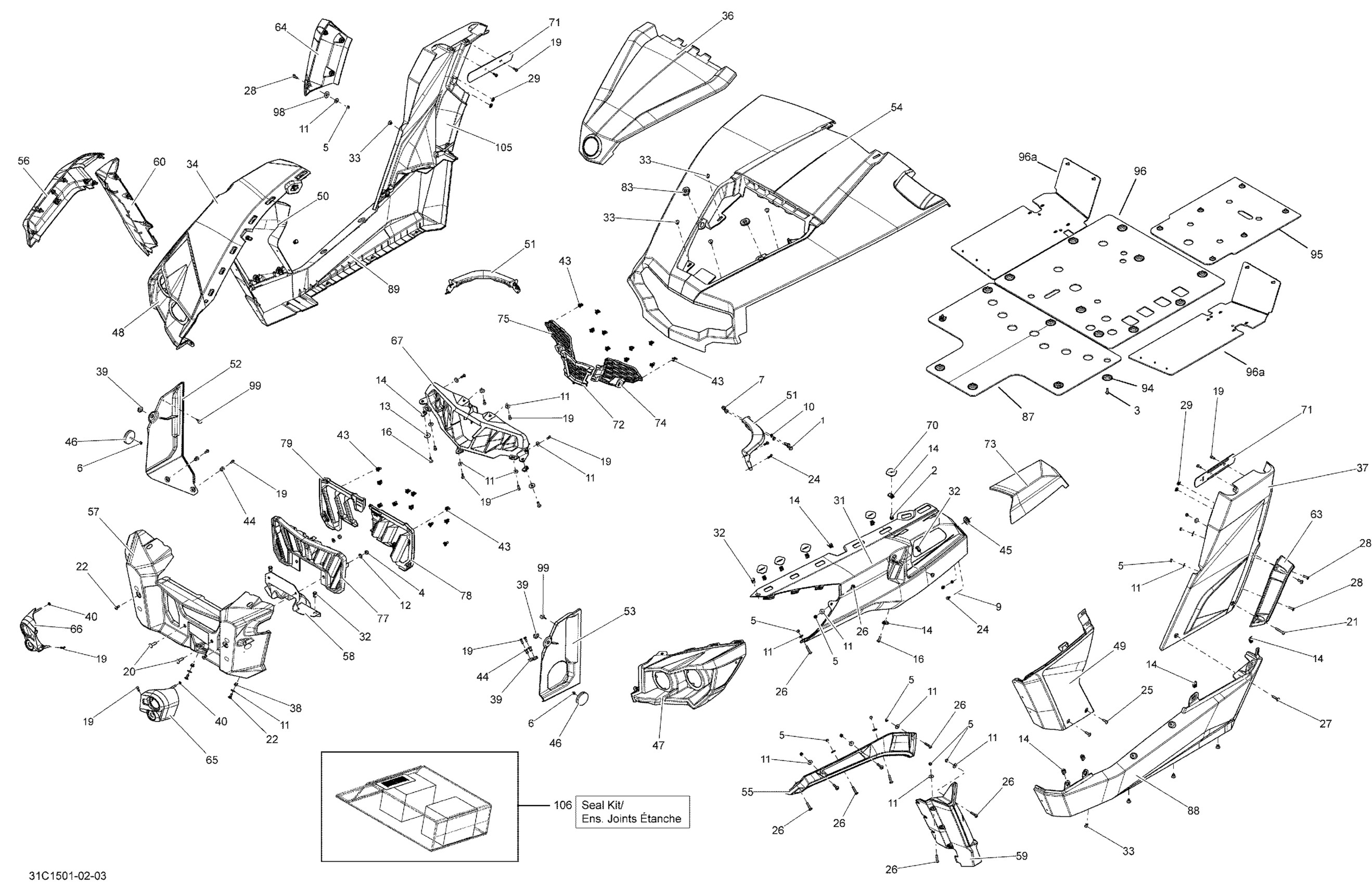

Can-Am Commander 800_STD_DPS_XT, 2015 09- Body And Accessories _31C1501 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16

207661644

$0.74

2

Hex. Flange Screw M6 X 20

207662044

$2.00

3

Hexagonal Head Screw

210262050

$2.11

4

Hex. Nut M8

232081414

$0.72

5

Elastic Stop Nut M6

232561434

$1.99

6

Hex. Flange Elastic Nut M5

233251414

$1.04

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

9

Flat Washer M5

234051410

$0.53

10

Stainless Flat Washer M6

234061600

$0.33

11

Stainless Steel Flat Washer

234062670

$2.11

12

Flat Washer 8 mm

234081410

$0.83

13

Flat Washer 8 mm

234082410

$1.47

14

Panel Nut M6 X 1.0

250100198

$2.11

16

Torx Screw M6 X 20

250000722

$1.68

19

Torx Screw K50 X 16

250000720

$1.69

20

Hex Torx Truss M8 X30

250000745

$3.17

21

Torx Screw M6 X 45

250000215

$1.90

22

Torx Screw M6 X 16

250000755

$0.87

24

Truss Head Torx Screw K50 X 20

250000297

$2.11

25

Torx Truss Screw M6 X 20

250000350

$5.29

26

Stainless, Torx Screw M6 X 30

250000842

$2.11

27

Torx Truss Screw M6 X 30

250000843

$2.11

28

Torx Truss Screw M6 X 20

250000488

$2.11

31

FENDER FL B-005 - Call your local BRP dealership | Camo Models

705006768

Unavailable

31

FENDER FL B-341 - Call your local BRP dealership | White

705006774

$769.99

31

YELLOW LH FRONT FENDER - Call your local BRP dealership | Yellow Models

705008194

Unavailable

31

VIPER RED LH FRONT FENDER - Call your local BRP dealership | STD

705008196

Unavailable

31

QUARRY GRAY LH FRONT FENDER - Call your local BRP dealership | Model-Quarry Gray

705008232

Unavailable

32

Tuflok Plastic Rivet

293150230

$1.47

33

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

34

FENDER FR B-005 - Call your local BRP dealership | Camo Models

705006769

Unavailable

34

Painted Hybrid White Rh Front Fender | White

705011766

$409.99

34

YELLOW RH FRONT FENDER - Call your local BRP dealership | Yellow Models

705008195

Unavailable

34

VIPER RED RH FRONT FENDER - Call your local BRP dealership | Model-Red

705008197

Unavailable

34

Quarry Gray RH Front Fender | Model-Quarry Gray

705008233

$204.99

36

HOOD B-005 - Call your local BRP dealership | Camo Models

705007075

Unavailable

36

PAINTED HYBRID WHITE HOOD - Call your local BRP dealership | White

705011739

Unavailable

36

HOOD B-190 - Call your local BRP dealership | Model-XT/DPS Yellow

705008184

Unavailable

36

Viper Red Removable Hood | Red Models

705008185

$389.99

36

Quarry Gray Removable Hood | Model-Quarry Gray

705008237

$389.99

37

PANEL_BODY REAR L B-005 - Call your local BRP dealership | Camo Models

705006122

Unavailable

37

PANEL_BODY REAR L B-341 - Call your local BRP dealership | White

705006744

Unavailable

37

YELLOW LH REAR LATERAL PANEL - Call your local BRP dealership | Yellow Models

705007864

Unavailable

37

VIPER RED LH REAR LATERAL PANEL - Call your local BRP dealership | STD

705007874

Unavailable

37

QUARRY GRAY LH REAR LATERAL PANEL - Call your local BRP dealership | Model-Quarry Gray

705008369

Unavailable

38

Threaded Insert M6 X 1.0

250100242

Unavailable

39

Grommet

709000582

$4.69

40

Push Nut

389804300

$0.53

43

Edge Clip

517302785

$0.88

44

Knob

517303439

$4.55

45

Grommet

517303756

$4.09

46

Amber Reflector | Except Europe Model

705011222

$14.49

47

LH Front Facia

705002885

$74.99

48

RH Front Facia

705002886

$74.99

49

PANEL_BODY FL B-341 - Call your local BRP dealership | White

705006037

$339.99

49

PANEL_BODY FL B-005 - Call your local BRP dealership | Camo Models

705006378

Unavailable

49

YELLOW LH FRONT LATERAL PANNEL - Call your local BRP dealership | Yellow Models

705007846

Unavailable

49

Viper Red LH Front Lateral Pannel | STD

705007851

$40.99

49

QUARRY GRAY LH FRONT LATERAL PANNEL - Call your local BRP dealership | Model-Quarry Gray

705008239

Unavailable

50

PANEL_BODY FR B-341 - Call your local BRP dealership | White

705006059

Unavailable

50

PANEL_BODY FR B-005 - Call your local BRP dealership | Camo Models

705006379

Unavailable

50

YELLOW RH FRONT LATERAL PANNEL - Call your local BRP dealership | Yellow Models

705007845

Unavailable

50

VIPER RED RH FRONT LATERAL PANNEL - Call your local BRP dealership | STD

705007852

Unavailable

50

Quarry Gray RH Front Lateral Pannel | Model-Quarry Gray

705008240

$40.99

51

Facia Front Support

705002891

$38.99

52

RH Deflector

705002894

$19.99

53

LH Deflector | Except XT Models

705002895

$19.99

53

LH Deflector | XT

705005113

$16.99

54

HOOD B-005 - Call your local BRP dealership | Camo Models

705004380

Unavailable

54

HOOD B-341 - Call your local BRP dealership | White

705006036

Unavailable

54

HOOD B-190 - Call your local BRP dealership | Yellow Models, Black Models

705008187

Unavailable

54

HOOD B-176 - Call your local BRP dealership | Red Models

705008188

Unavailable

54

HOOD B-365 - Call your local BRP dealership | Model-Quarry Gray

705008235

Unavailable

55

Black, LH Upper Front Mudguard | LTD

705008666

$34.99

56

Black, RH Upper Front Mudguard | LTD

705008667

$34.99

57

Black Front Facia

705008689

$104.99

58

Bottom Deflector | Except XT Models

705003399

$14.99

59

Black, LH Lower Mudguard | LTD

705008668

$34.99

60

Black, RH Lower Mudguard | LTD

705008669

$34.99

63

Black, LH Rear Lower Mudguard | LTD

705008670

$34.99

64

RH Rear Lower Black Mudguard | LTD

705008672

$34.99

65

LH FLASHER CAP - Call your local BRP dealership | Europe

705008676

Unavailable

66

RH FLASHER CAP - Call your local BRP dealership | Model Europe

705008677

Unavailable

67

FASCIA UP B-160 - Call your local BRP dealership

705003629

$20.99

70

Support Plate

705003841

$0.99

71

Support Skid Plate

705007916

$14.74

72

Center Upper Facia Protector

705004336

$4.09

73

CAMO CVT INLET COVER - Call your local BRP dealership | Camo Models

705004382

Unavailable

73

COVER_AIR INLET FL B-341 - Call your local BRP dealership | White

705006054

Unavailable

73

Yellow CVT Inlet Cover | Model-XT/DPS Yellow

705008190

$15.49

73

VIPER RED CVT INLET COVER - Call your local BRP dealership | Model-Red

705008191

Unavailable

73

Quarry Gray CVT Inlet Cover | Model-Quarry Gray

705008234

$16.49

74

LH Upper Facia Protector

705004350

$4.09

75

RH Upper Facia Protector

705004351

$4.09

77

Lower Front Facia Protector

705004755

$18.49

78

LH Lower Rear Facia Protector

705004819

$18.49

79

RH Lower Rear Facia Protector

705004820

$18.49

83

Oval Washer

705005156

$4.97

87

Middle Protector Plate

705007055

$80.49

88

LH Lateral Middle Panel | STD

705006991

$73.99

88

LH Middle Side Pannel | XT

705006993

$73.99

89

RH Lateral Middle Panel | STD

705006992

$73.99

89

RH Middle Side Pannel | XT

705006994

$73.99

94

Cup | Package Hunter

705007171

$7.89

95

Rear Protector Plate

705007227

$31.99

96

Rear Protector Plate

705007056

$121.49

96a

RH Lateral Skid Plate

705007038

$64.49

98

Hardened Washer

706200281

$2.85

99

Rubber Stopper

708000759

$4.19

105

PANEL_BODY REAR R B-005 - Call your local BRP dealership | Camo Models

705006123

Unavailable

105

PAINTED HYBRIB WHITE RH REAR PANEL - Call your local BRP dealership | White

705011694

$489.99

105

Yellow RH Rear Lateral Panel | Yellow Models

705007865

$104.99

105

VIPER RED RH REAR LATERAL PANEL - Call your local BRP dealership | STD

705007875

Unavailable

105

Quarry Gray RH Rear Lateral Panel | Model-Quarry Gray

705008370

$104.99

106

Seal Kit

705008208

Unavailable
