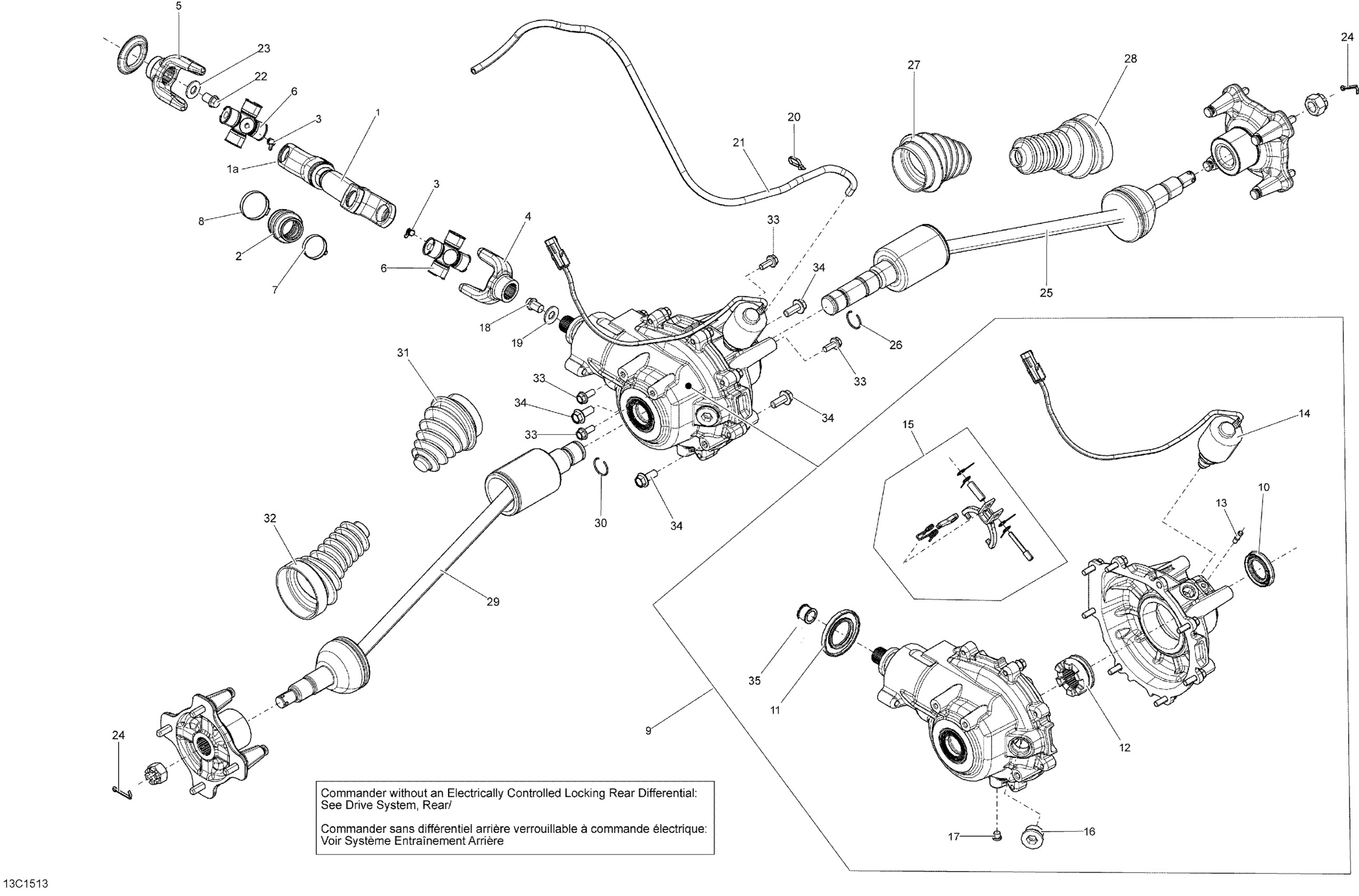

Can-Am Commander 800_STD_DPS_XT, 2015 08- Drive System, Rear - With Locking Rear Differential_13C1513a Diagram

#

Description
Price

1

DRIVE AXLE ASS'Y - Call your local BRP dealership | Includes 9a to 9h

705502149

Unavailable

1a

Spline Yoke

715900106

$41.49

2

Rubber Boot

715900118

$14.30

3

Grease Fitting | T3

715900295

$5.24

4

Fixe Yoke

715900296

$24.99

5

Joint

715900272

$24.99

6

Universal Joint Ass'y | T3

703500846

$59.49

7

Oetiker Gear Clamp 36.1MM

509000045

$8.29

8

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

9

Rear Differential Ass'y | Includes 30 to 30j

705501942

$2,149.99

10

SEAL - Call your local BRP dealership | 4X4

705501824

Unavailable

11

SEAL - Call your local BRP dealership

705501975

Unavailable

12

GEAR - Call your local BRP dealership

705501825

Unavailable

13

VENT VALVE - Call your local BRP dealership

705501826

$8.20

14

SOLENOID - Call your local BRP dealership

710003430

Unavailable

15

SHIFT YOKE KIT - Call your local BRP dealership

705501829

Unavailable

16

FILL PLUG - Call your local BRP dealership

705501828

Unavailable

17

Drain Plug

705501827

$14.49

18

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

19

Flat Washer M12

250200102

$2.11

20

Tie Wrap 142 mm

293750002

$1.25

21

Polyurethane Hose 10000Mm Long

219704410

$56.99

22

Hex Flange Screw M12 X 16

250001039

$2.11

23

Flat Washer M12

250200102

$2.11

24

Cotter Pin

250400036

$2.11

25

RH HALF SHAFT - Call your local BRP dealership | Includes 25 to 28

705501967

Unavailable

26

CIRCLIP - Call your local BRP dealership | 4X4

705501832

Unavailable

27

BOOT_CV JOINT KIT - Call your local BRP dealership

705501830

Unavailable

28

BOOT_CV JOINT KIT - Call your local BRP dealership | 4X4

705501831

Unavailable

29

LH HALF SHAFT - Call your local BRP dealership | Includes 240 to 240c

705501968

Unavailable

30

CIRCLIP - Call your local BRP dealership | 4X4

705501832

Unavailable

31

BOOT_CV JOINT KIT - Call your local BRP dealership

705501830

Unavailable

32

BOOT_CV JOINT KIT - Call your local BRP dealership | 4X4

705501831

Unavailable

33

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

34

Hex. Flange Screw M10 X 25

207502546

$2.11

35

SLEEVE - Call your local BRP dealership

705502247

Unavailable
