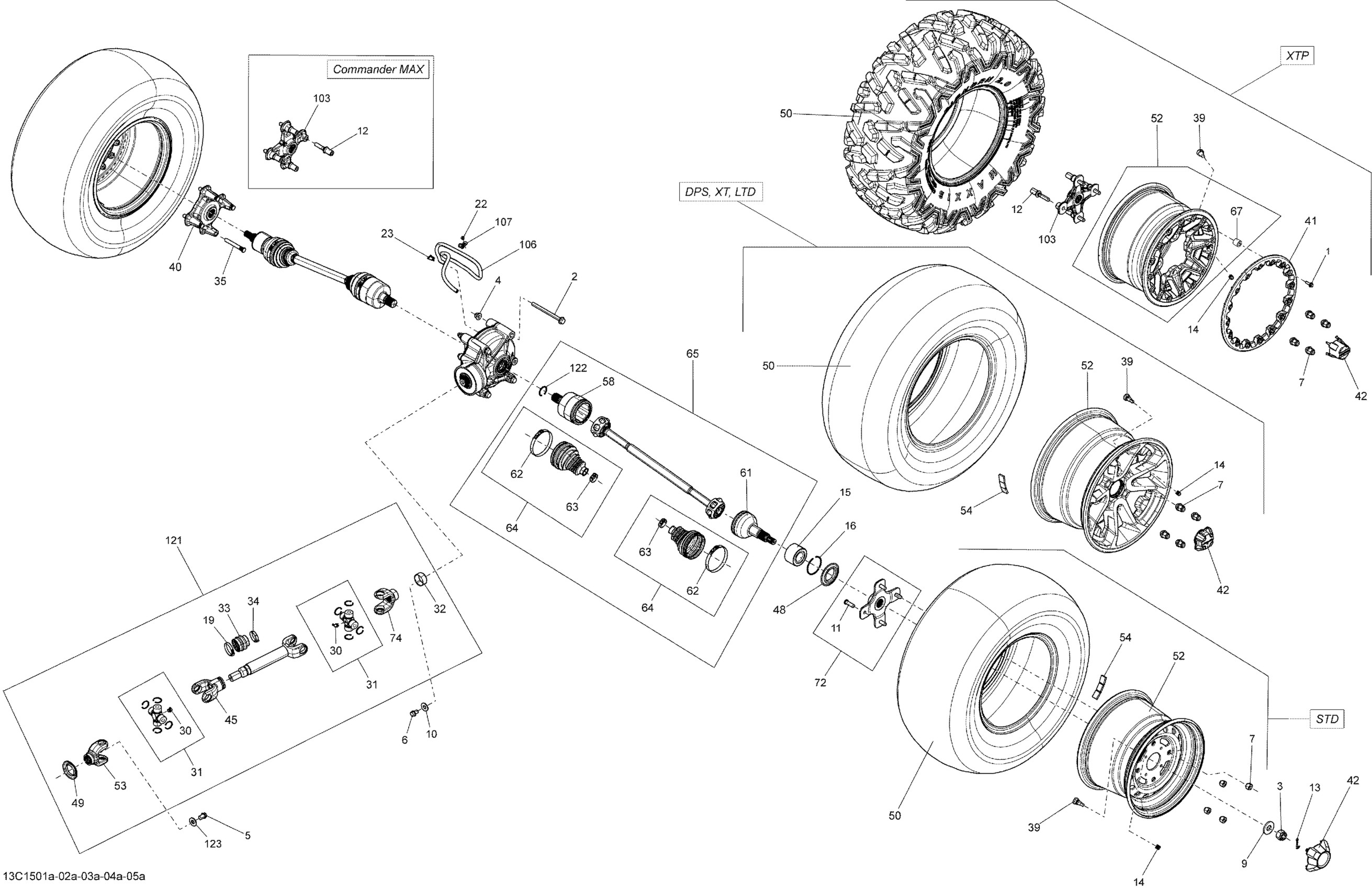

Can-Am Commander 1000_STD_DPS_XT_XTP, 2015 08- Drive System, Rear _13C1502a Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 25

250000787

$2.22

2

Hex. Flange Screw M10 X 125

230602546

$7.41

3

Hex. Flange Castellated Nut M18

232291413

$7.98

4

Hex. Flange Elastic Nut M10

233201436

$2.11

5

Hex Flange Screw M12 X 16

250001039

$2.11

6

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

7

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$8.79

7

Black, Wheel Nut M10 X 1.25

250100184

$4.51

9

Conical Spring Washer M18

250200171

$7.65

10

Flat Washer M10 | 4X4

250200014

$1.49

11

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

12

Wheel Stud

250300060

$11.49

13

Cotter Pin

250400036

$2.11

14

Valve Cap

293000110

$1.59

15

Ball Bearing

293350150

$52.99

16

Circlip

293370019

$4.68

19

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

22

Pop Rivet 3/16"

390402200

$0.35

23

Clip

414227300

$1.67

30

Grease Fitting | T3

715900295

$5.24

31

Universal Joint Ass'y | T3

703500846

$59.49

32

Wear Ring | 4X4

705400036

$26.49

33

Rubber Boot

715900118

$14.30

34

Oetiker Gear Clamp 36.1MM

509000045

$8.29

35

Wheel Stud

705401964

$11.06

39

Rim Valve With Cap

705400193

$8.69

40

Wheel Hub

705401314

$132.49

41

BEAD LOCK B-337 - Call your local BRP dealership | Package-XTP

705401543

Unavailable

42

Wheel Cap | Package XMR 850, XMR 1000

705401541

$11.49

42

Wheel Cap

705400928

$10.49

45

Spline Yoke

715900106

$41.49

48

Wear Sleeve | 4X4

705501121

$7.90

49

Protector

705501123

$7.55

50

27X11R14 Rear Tire

705502665

$259.49

50

Rear Tire | XT Europe

705501295

$259.49

50

Rear Tire 27X11X12 | X

705502938

$254.49

50

Rear Tire | X Model Europe

705501818

$254.49

52

Rear Rim | Package-XT Int.Brush Aluminum

705502637

$206.49

52

Rim_14 Inch B-331 X 8 | Package-DPS

705502634

$206.49

52

Black, Rim | XXC

705502244

$265.99

53

Joint

715900272

$24.99

54

1/2 Oz Weight

219704465

$3.89

58

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

61

CV Joint

705501776

$259.49

62

Oetiker Clamp, 82.1 mm

715900241

$10.33

63

Oetiker Clamp, 27.3 mm

715900242

$10.33

64

Boot Kit

705501864

$42.49

65

Joint Assemble *Half Shaft | Includes 63 to 68

705502359

$243.99

67

Insert | XXC

293450317

$7.29

72

LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66

705501713

$137.47

74

Joint

715900271

$24.99

103

Wheel Hub

705501900

$132.49

106

Polyurethane Hose 10000Mm Long

219704410

$56.99

107

Clamp

293650256

$5.49

121

Shaft Ass'y Kit

703500985

$116.49

122

Circlip

705501781

$6.50

123

Flat Washer M12

250200102

$2.11
