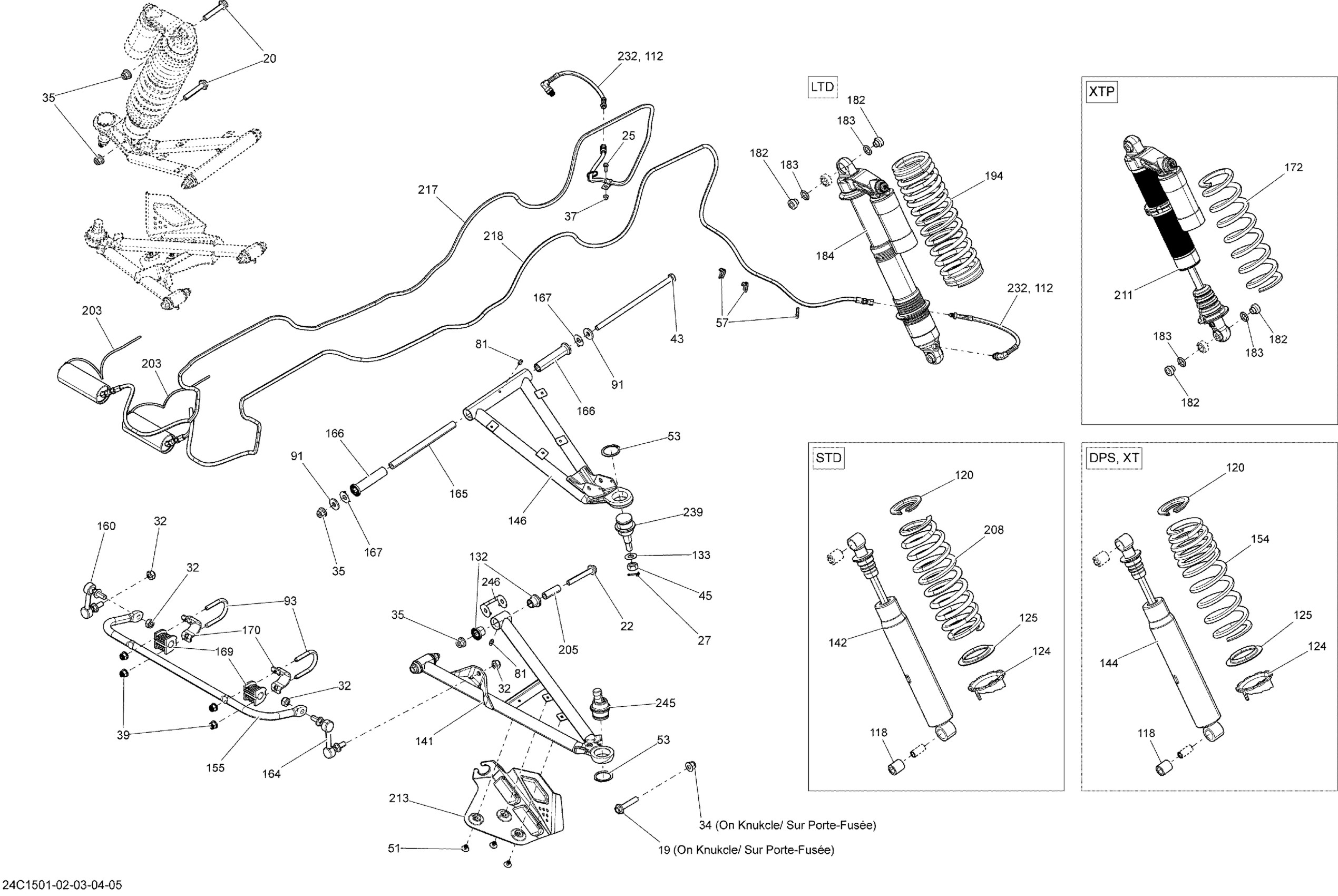

Can-Am Commander 1000_STD_DPS_XT_XTP, 2015 07- Front Suspension _24C1502 Diagram

#

Description
Price

19

Hex. Flange Screw M10 X 50

207605044

$5.29

22

Hex. Flange Screw M10 X 70

207607046

$2.96

25

Not Available As Spare Parts

XXX

Unavailable

27

Cotter Pin

211400017

$0.33

32

Elastic Flange Nut M10

232501416

$1.48

34

Hex. Flange Elastic Nut M10

233201414

$1.58

35

Hex. Flange Elastic Nut M10

233201436

$2.11

37

Not Available As Spare Parts

XXX

Unavailable

39

Hex. Flange Elastic Nut M8

233281414

$1.47

43

Hex. Cap Screw M10 X 225

250001032

$12.64

45

Nut M12

250100099

$2.09

51

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

53

Circlip

293370035

$2.64

57

Not Available As Spare Parts

XXX

Unavailable

81

Grease Fitting

408200700

$3.49

91

Washer

503190439

$5.93

93

U-clamp | X

506060600

$17.80

112

Not Available As Spare Parts

XXX

Unavailable

118

Bushing

715900122

$11.06

120

Spring Stopper

706000567

$15.99

124

Adjustment Ring

706000910

$16.49

125

Protector Ring | STD, XT

706000911

$13.99

132

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

133

Hardened Washer

706200281

$2.85

141

LH Lower Suspension Arm

706200742

$190.99

141

RH Lower Suspension Arm

706200744

$190.99

142

Not Available As Spare Parts

XXX

Unavailable

144

Front Shock | XT Yellow Model

706200782

$195.99

146

Suspension Upper Arm

706200796

$190.99

154

YELLOW FRONT SPRING - Call your local BRP dealership | XT Yellow Model

706200860

Unavailable

154

RED FRONT SPRING - Call your local BRP dealership | XT Red Model

706201367

Unavailable

154

BLACK FRONT SPRING - Call your local BRP dealership | XT Camo Model

706201369

Unavailable

155

Sway Bar Ass'y | X

706202560

$99.49

160

LH Sway Bar Link | X

706202536

$67.99

164

RH Sway Bar Link | X

706202537

$67.99

165

Bushing

706202445

$14.30

166

Cushion

706201062

$2.30

167

Wear Plate

706201063

$0.95

169

Stabilizer Bushing | X

706201086

$8.08

170

Clamp | X

706201087

$12.16

172

ORANGE FRONT SPRING - Call your local BRP dealership | Package-XTP

706202037

Unavailable

182

Interior Bushing | XTP

715900210

$15.82

183

O-Ring Bushing

715900209

$14.75

184

Not Available As Spare Parts

XXX

Unavailable

194

Not Available As Spare Parts

XXX

Unavailable

203

Not Available As Spare Parts

XXX

Unavailable

205

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

208

Not Available As Spare Parts

XXX

Unavailable

211

FRONT SHOCK ASS'Y - Call your local BRP dealership | Includes 130a to 130c

706201658

Unavailable

213

LH Protector

706201669

$17.54

213

RH Protector

706201670

$17.54

217

Not Available As Spare Parts

XXX

Unavailable

218

Not Available As Spare Parts

XXX

Unavailable

232

Not Available As Spare Parts

XXX

Unavailable

239

Ball Joint

706202044

$35.99

245

Ball Joint

706202045

$35.99

246

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33
