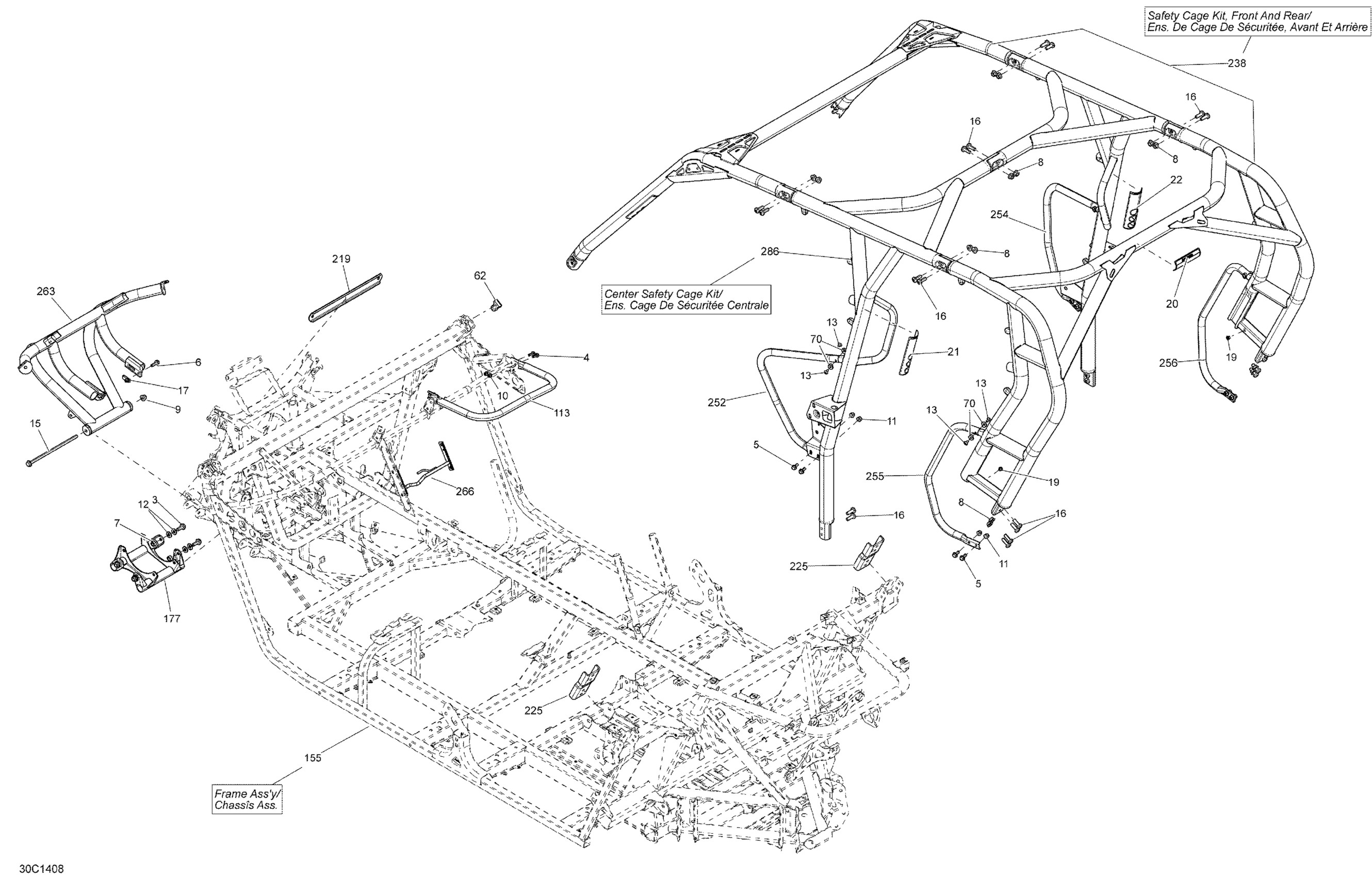

Can-Am Maverick MAX 1000, STD, XRS, XRS-DPS, 2014 09- Frame Diagram

Hex. Flange Screw M10 X 25

207602546

$2.11

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Screw M8 X 20

207682044

$1.15

SCREW-HEX.CAP DIN.933 S.GRIP - Call your local BRP dealership

207382544

Unavailable

Elastic Stop Nut M10

232500416

$1.90

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$2.11

Hex. Flange Elastic Nut M10

233201436

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Elastic Nut M8

233281414

$1.47

Conical Spring Washer 10 mm

234201474

$1.69

Torx Truss M6X14

250000789

$5.39

Hex. Flange Screw

250000597

$12.70

Screw Pan M10 X 30

250000848

$1.90

Panel Nut M8 X 1.25

250100118

$2.09

Conical Spring Washer 10 mm

234201474

$1.69

Threaded Insert M6 X 1.0

250100242

Unavailable

Warning Label

704903492

Unavailable

Warning Label

704903679

Unavailable

Warning Label

704903680

Unavailable

Binding Block

705203415

$18.49

Offset Washer

705202223

$4.14

Black Handle

705203332

$132.49

Frame Ass'y, Black

705203153

Unavailable

DIFFERENTIAL SUPPORT - Call your local BRP dealership

705203296

Unavailable

FRONT SUSPENSION LINK - Call your local BRP dealership

705203454

$22.49

Rear Hand Mounting

705203514

$20.49

Deep Black, Cage Ass'y | Includes 2 to 8

715004812

$1,039.99

Black LH Front Side Protector Tube

705203643

$46.49

Black RH Front Side Protector Tube

705203642

$46.49

Black LH Rear Side Protector Tube

705203649

$46.49

Black RH Rear Side Protector Tube

705203652

$46.49

FRONT BUMPER BLACK - Call your local BRP dealership

715001645

Unavailable

Reinforcement Panel

705203717

$154.99

REINFORCEMENT - Call your local BRP dealership

705203695

Unavailable

Black Central Cage Kit

715003902

$779.99
