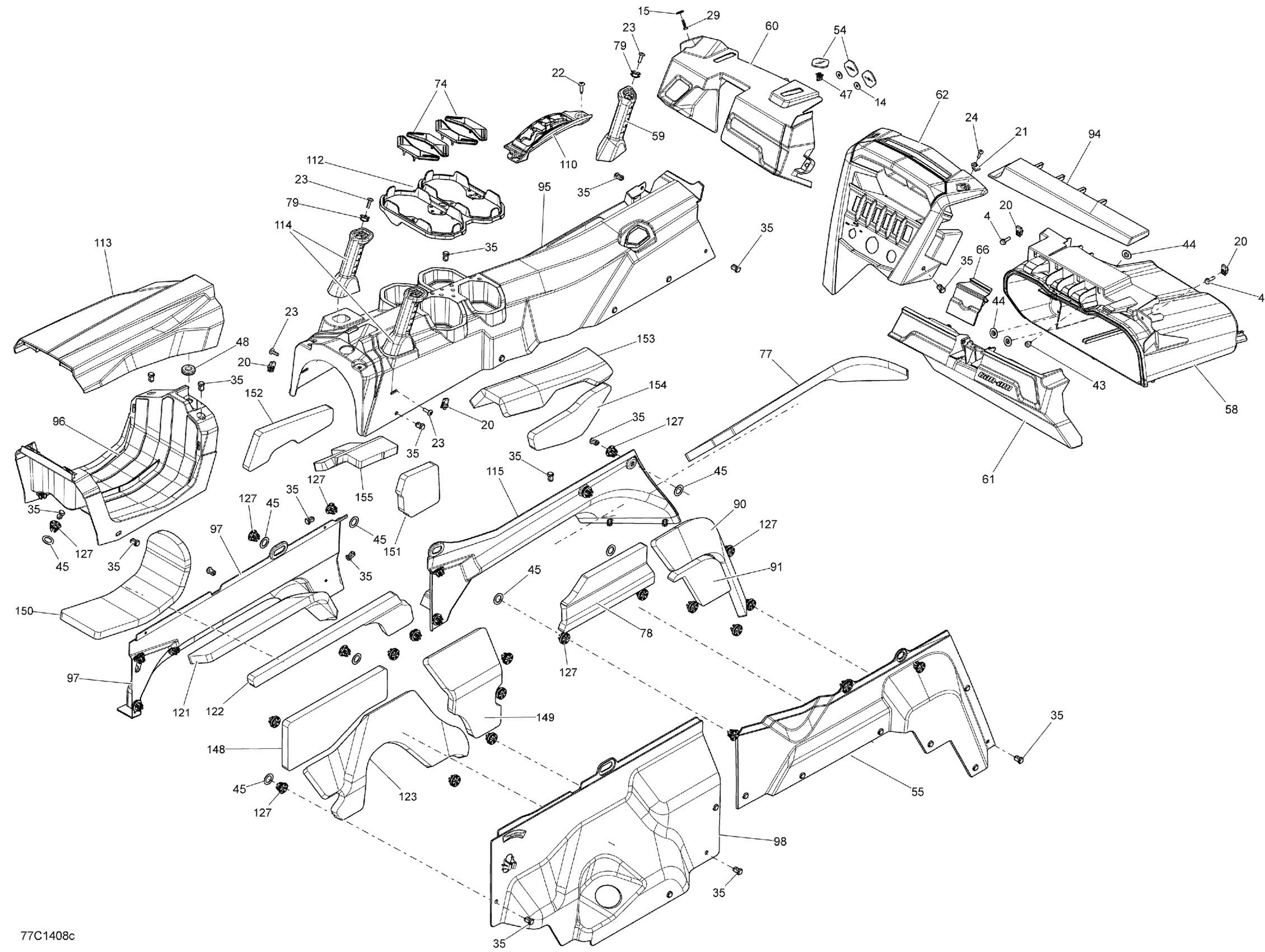

Can-Am Maverick MAX 1000, STD, XRS, XRS-DPS, 2014 09- Cab Interior Dash And Console Diagram

#

Description
Price

4

Hex. Flange Screw M6 X 20

207662034

$2.11

14

Flat Washer 6 mm

234062410

$0.77

15

Stainless Steel Flat Washer

234062670

$2.11

20

Panel Nut M6 X 1.0

250100198

$2.11

21

Panel Nut M5 X 0.8

250000958

$4.23

22

Torx Screw M6 X 25 | XT Models

250000728

$4.44

23

Torx Screw M6 X 20

250000722

$1.68

24

Torx Screw M5 X 20

250000724

$1.69

29

Truss Head Torx Screw K50 X 20

250000297

$2.11

35

Tuflok Plastic Rivet

293150230

$1.47

43

Rubber Bumper

293830005

$8.09

44

CAP - Call your local BRP dealership

414859400

Unavailable

45

Washer

503189273

$3.28

47

Edge Clip

517302785

$0.88

48

Grommet

517303756

$4.09

54

Support Plate

705003841

$0.99

55

RH Side Console

707900002

$36.99

58

Storage Bin

707900009

$114.99

59

Passenger Handle

707900011

$13.75

60

Dashboard Ass'y

715001250

$79.99

61

LUGGAGE COVER KIT - Call your local BRP dealership

707900221

$49.99

62

Central Dashboard Ass'y

715001265

$60.99

62

Lower Central Dashboard Ass'y | Europe

707900019

$40.99

66

Latch

707900031

$8.49

74

Cup Retainer

707900036

$6.89

77

LH Lower Lateral Console Foam

707900621

$23.99

78

RH Lateral Console Foam

707900622

$16.49

79

Connector Tube

707900048

$6.19

90

RH Lateral Console Foam

707900623

$16.49

91

RH Lateral Console Foam

707900624

$16.49

94

Trim Glove Box

707900062

$18.49

95

Front Control Console

707900072

Unavailable

96

Rear Central Console

707900075

$46.99

97

LH REAR CONSOLE PANEL - Call your local BRP dealership

707900298

$62.99

98

RH Rear Console Panel

707900080

$68.99

110

Shift Lever Indicator

707900088

$15.49

112

Cup Holder

707900100

$18.49

113

Rear Console Cover Kit

707900229

$44.99

113

REAR CENTRAL CONSOLE COVER - Call your local BRP dealership | White Model

707900195

Unavailable

113

REAR CENTRAL CONSOLE COVER - Call your local BRP dealership | Black Model

707900197

Unavailable

114

Handle

707900103

$15.36

115

LH Side Console

707900001

$44.99

121

INSULATION_ACOUSTIC - Call your local BRP dealership

707900119

Unavailable

122

LH Rear Lateral Foam

707900626

$16.49

123

INSULATION_ACOUSTIC - Call your local BRP dealership

707900121

Unavailable

127

Insert

707900133

$2.89

148

INSULATION_ACOUSTIC - Call your local BRP dealership

707900205

Unavailable

149

RH Rear Lateral Foam

707900627

$16.49

150

INSULATION_ACOUSTIC - Call your local BRP dealership

707900307

Unavailable

151

INSULATION_ACOUSTIC - Call your local BRP dealership

707900209

Unavailable

152

Front Central Foam

707900628

$11.49

153

Front Central Foam

707900629

$17.49

154

Front Central Foam

707900630

$11.49

155

INSULATION_ACOUSTIC - Call your local BRP dealership

707900213

Unavailable
