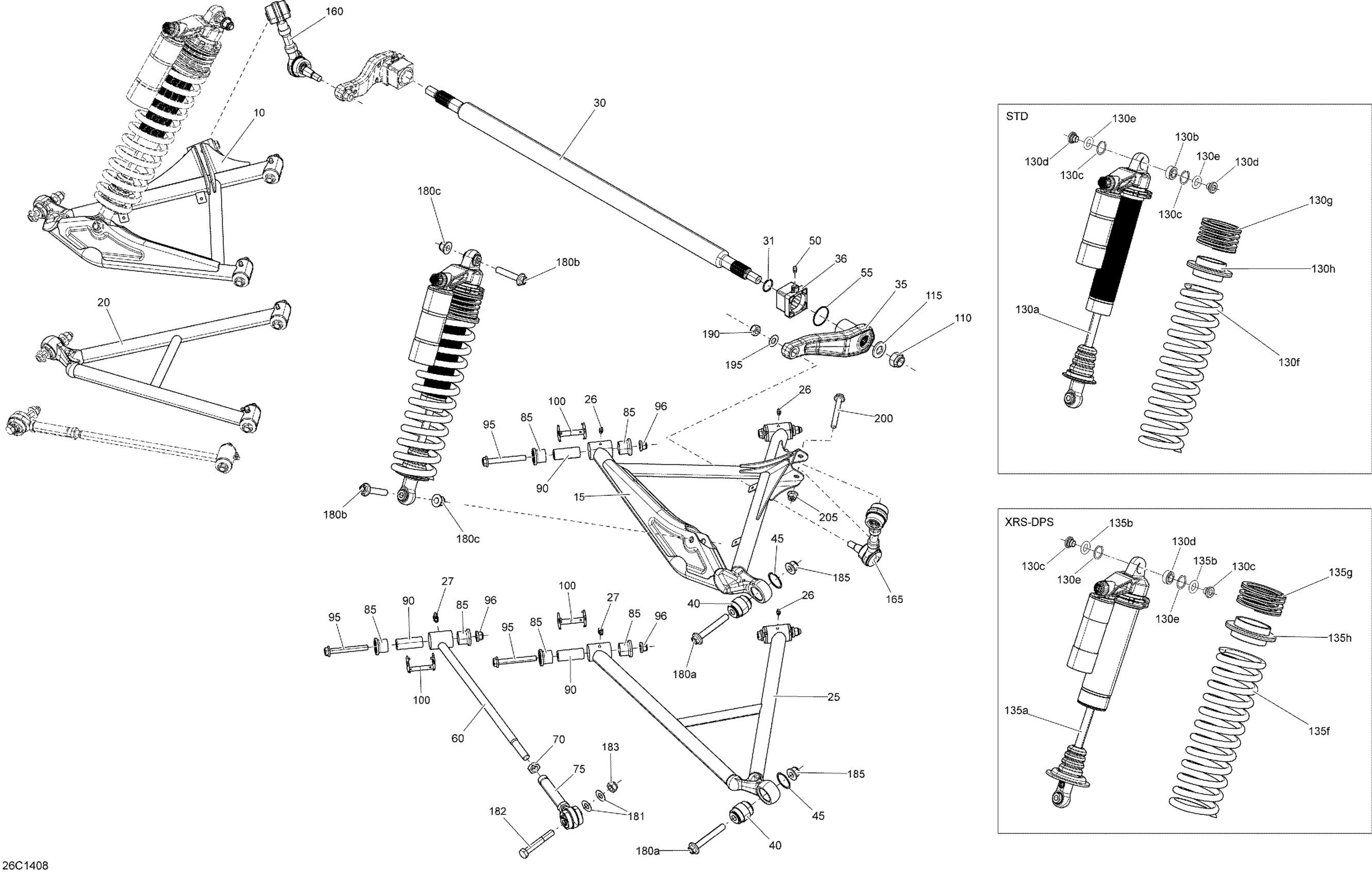

Can-Am Maverick MAX 1000, STD, XRS, XRS-DPS, 2014 08- Rear Suspension Diagram

#

Description
Price

10

Black LH Rear Upper Arm | Model-STD

706002091

$201.49

10

YELLOW LH REAR UPPER ARM - Call your local BRP dealership | Model-XRS Black

706002093

Unavailable

10

RED LH REAR UPPER ARM - Call your local BRP dealership | Model-XRS White

706002095

Unavailable

15

Black RH Rear Upper Arm | Model-STD

706002092

$201.49

15

YELLOW RH REAR UPPER ARM - Call your local BRP dealership | Model-XRS Black

706002094

Unavailable

15

Red RH Rear Upper Arm | Model-XRS White

706002096

$201.49

20

Black LH Rear Lower Arm

706001354

$201.49

25

Black RH Rear Lower Arm

706001355

$201.49

26

Grease Fitting

408200700

$3.49

27

Grease Fitting 90°

293550056

$1.15

30

SWAY BAR - Call your local BRP dealership

706001625

Unavailable

31

Retaining Ring

706000251

$6.35

35

Sway Bar Lever

706001371

$169.99

36

Sway Bar Housing

706001402

$15.49

40

Radial Joint

706001373

$52.99

45

Retaining Ring

293370093

$7.59

50

Grease Fitting

408200700

$3.49

55

O-Ring

293300100

$5.72

60

Rear Coupling Bar

706001357

$48.99

70

LH Hex. Lock Nut M14

232175411

$6.67

75

LH Ball Joint

706001438

$54.99

85

Suspension Arm Bushing

706204409

$9.10

90

Sleeve

706201590

$11.99

95

Hex Flange Screw M10 X 80

207608046

$6.69

96

Hex. Flange Elastic Nut M10

233201436

$2.11

100

Wear Plate

706201660

$0.95

110

Elastic Stop Nut M18

232591414

$4.39

115

Washer

250200045

$7.73

130a

Rear Shock | Model-STD , Includes 130a to 130e

706001453

Unavailable

130b

Spherical Bearing

715900266

$82.99

130c

Retaining Ring

715900252

$12.49

130d

Internal Bushing

715900267

$26.49

130e

O-Ring Bushing

715900268

$14.75

130f

YELLOW SPRING - Call your local BRP dealership | Model-STD

706001454

Unavailable

130g

YELLOW SPRING - Call your local BRP dealership | Model-STD

706001712

Unavailable

130h

Spring Spacer | Model-STD

706001711

$17.49

135a

REAR SHOCK - Call your local BRP dealership | Model-XRS-DPS , Includes 135a to 135e

706001457

$889.99

135b

O-Ring Bushing

715900268

$14.75

135c

Internal Bushing

715900267

$26.49

135d

Spherical Bearing

715900266

$82.99

135e

Retaining Ring

715900252

$12.49

135f

YELLOW SPRING - Call your local BRP dealership | Model-XRS-DPS-Black

706001458

Unavailable

135f

RED SPRING - Call your local BRP dealership | Model-XRS-DPS-White

706001594

Unavailable

135g

YELLOW SPRING - Call your local BRP dealership | Model-XRS-DPS-Black

706001713

Unavailable

135g

Red Spring | Model-XRS-DPS-White

706001714

$73.99

135h

Spring Spacer | Model-XRS-DPS

706001710

$15.99

160

LH Double Ball Joint

706001741

$102.99

165

RH Double Ball Joint

706001742

$102.99

180a

Hex. Flange Screw M12 X 85

207628546

$6.77

180b

Hex. Flange Screw M12 X 60

207626046

$7.41

180c

Elastic Flange Nut M12

233221416

$2.85

181

Hardened Washer

706200281

$2.85

182

Hex. Screw M12 X 80

207028046

$3.91

183

Elastic Stop Nut M12

232521416

$1.69

185

Elastic Flange Nut M12

233221416

$2.85

190

Hex. Flange Elastic Nut M12

250000047

$1.90

195

Hardened Washer

706200281

$2.85

200

Hex. Flange Screw M10 X 70

207607046

$2.96

205

Hex. Flange Elastic Nut M10

233201436

$2.11
