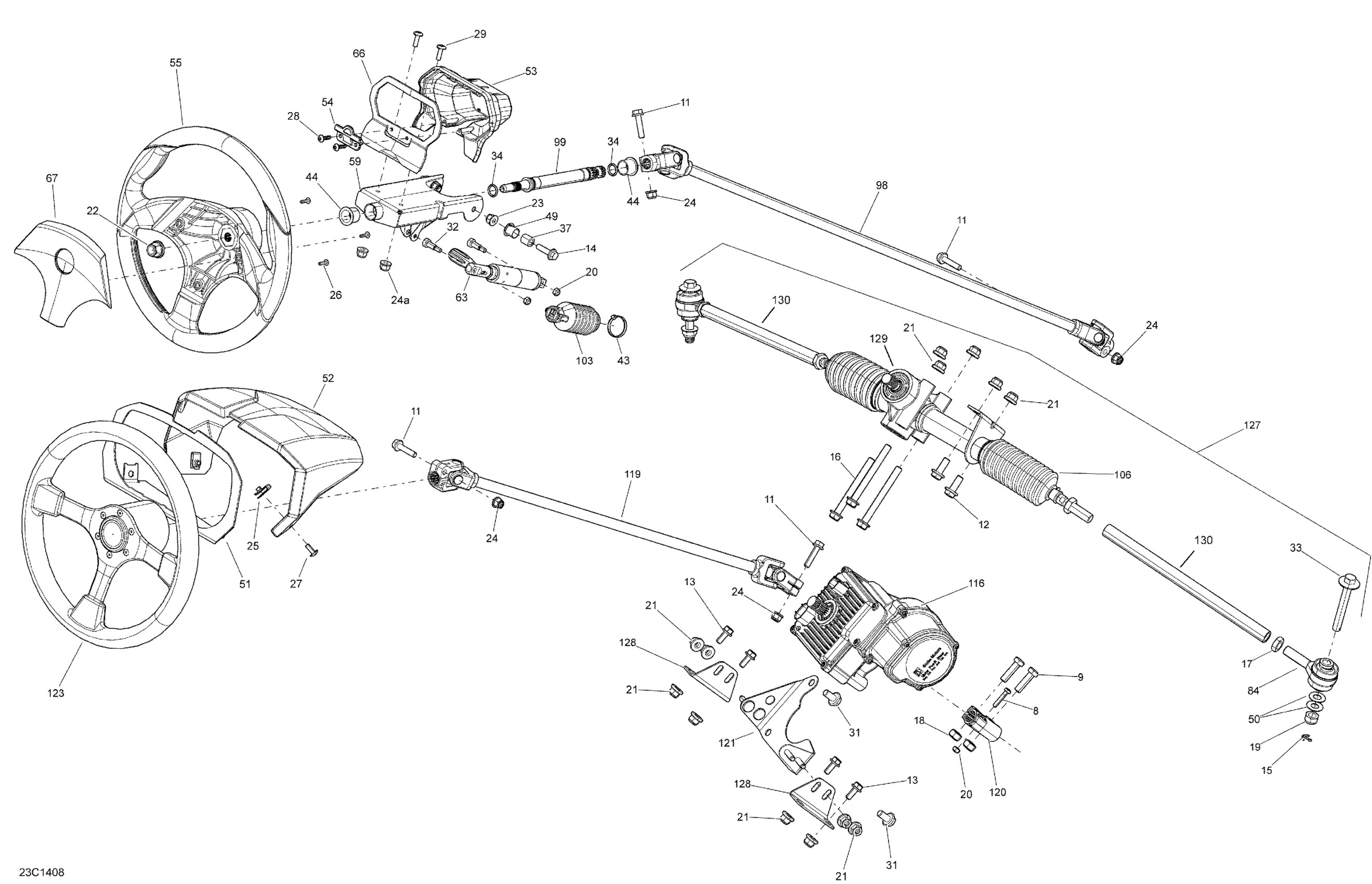

Can-Am Maverick MAX 1000, STD, XRS, XRS-DPS, 2014 07- Steering Diagram

#

Description
Price

8

Hex. Screw M6 X 30

207063044

$1.26

9

Hex. Screw M10 X 35

207103586

$1.15

11

Hex. Flange Screw M8 X 35, Scotch Grip | Sub 250000986

207583586

Unavailable

12

Hex. Flange Screw M10 X 25

207602546

$2.11

13

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

14

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

15

Cotter Pin

211400017

$0.33

16

Hex. Screw M10 X 100, Scotch Grip

230500046

$7.41

17

Steering Rod Nut

715900238

$2.30

18

Elastic Stop Nut M10

232500416

$1.90

19

Elastic Stop Nut M12

232521416

$1.69

20

Elastic Stop Nut M6

232561414

$0.55

21

Hex. Flange Elastic Nut M10

233201436

$2.11

22

Hex. Flange Elastic Nut M12

233221414

$7.69

23

Hex. Flange Elastic Nut M8

233281414

$1.47

24

Hex. Elastic Flange Nut M8

233281416

$1.48

25

Panel Nut M6 X 1.0

250100198

$2.11

26

Phillips Screw K40 X 16

250000723

$0.98

27

Torx Truss Screw M6 X 16

250000721

$1.69

28

Truss Head Torx Screw K50 X 20

250000297

$2.11

29

Torx Truss Screw M6 X 20

250000350

$5.29

31

Hex. Flange Screw M10 X 20, Scotch Grip

250000601

$3.91

32

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000649

Unavailable

33

Hexagonal Screw M12 X 88

250000657

$6.77

34

O-Ring

293300144

$3.82

37

Bushing

293900106

$4.55

43

Tie-Rap 180 mm

414115200

$0.11

44

Steering Bushing

709402725

$3.28

49

Bushing

705600799

$3.72

50

Hardened Washer

706200281

$2.85

51

Cluster Support | X, XT

707900013

$16.49

52

Upper Cluster Cover | X, XT

707900124

$16.49

53

Speedometer Cover

709400514

$16.99

54

Latch Indicator Cover

709400573

$11.99

55

Steering Wheel | STD

709400650

$137.49

59

Painted Steering Wheel Support

709401391

$85.99

63

Adjustment Cylinder

709402506

$72.99

66

Cluster Support | STD

709400760

$21.99

67

Steering Center | STD

709400780

$13.49

84

Ball Joint

709401125

$52.99

98

Steering Shaft Ass'y

709401388

$199.99

99

Steering Shaft

709401167

$48.99

103

Boot Tube Side

709401232

$18.99

106

Boot Kit, Pinion Side

715900235

$54.99

106

Boot Kit, Tube Side

715900236

$54.99

116

Power Steering

709401406

$2,009.99

119

STEERING SHAFT ASS'Y - Call your local BRP dealership | XRS-DPS

709401293

Unavailable

120

COUPLING - Call your local BRP dealership

709401294

Unavailable

121

SUPPORT - Call your local BRP dealership

709401296

Unavailable

123

STEERING WHEEL KIT - Call your local BRP dealership | X, XT Includes 3 to 5

715001134

$194.99

128

SUPPORT - Call your local BRP dealership

709401339

Unavailable

24a

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

129

Rack And Pinion Steering | XRS-DPS

709401236

$381.49

129

Rack And Pinion Steering | STD, XRS

709401325

$381.49

130

Tie Rod

709401427

$32.99
