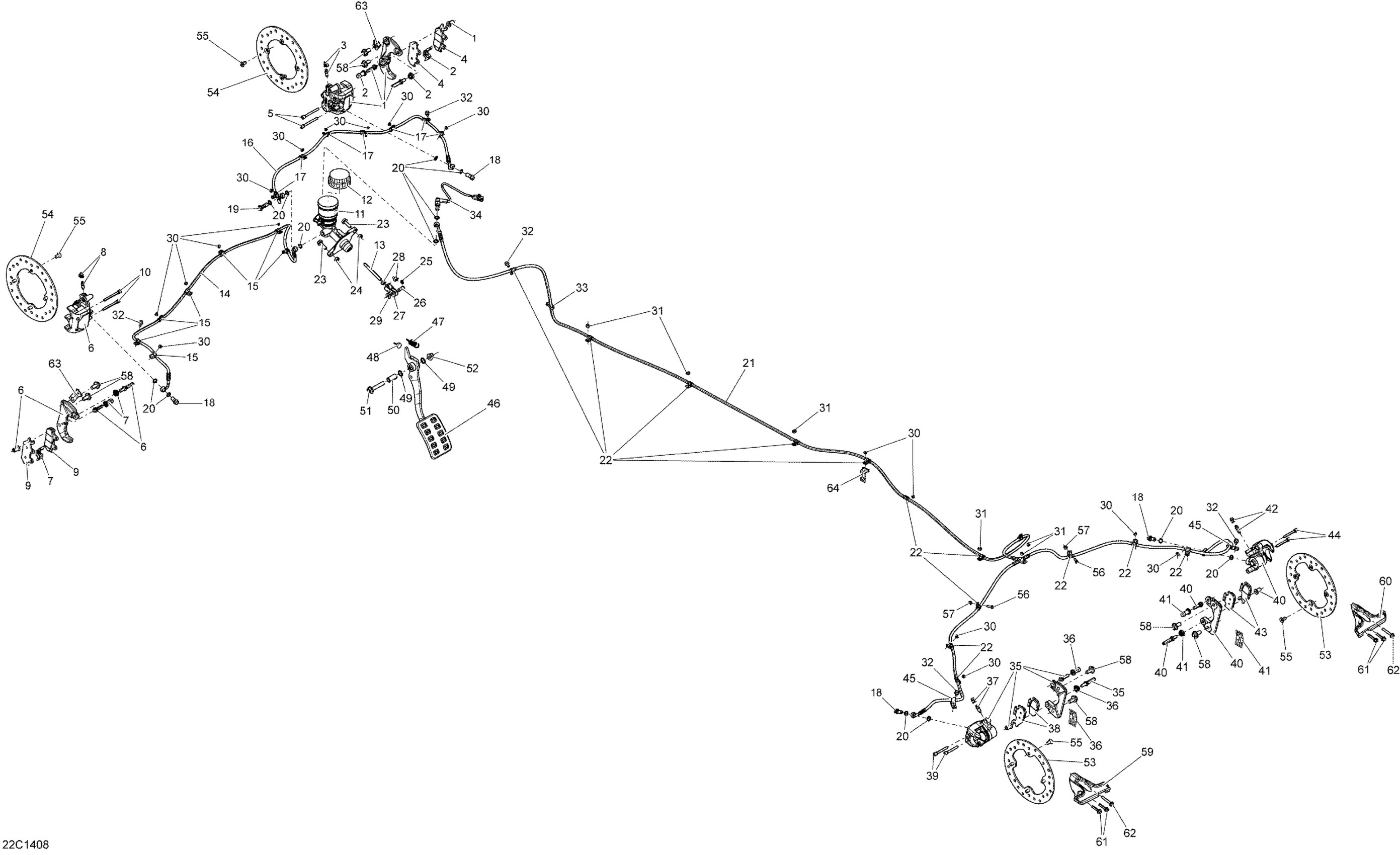

Can-Am Maverick MAX 1000, STD, XRS, XRS-DPS, 2014 06- Brakes Diagram

#

Description
Price

1

RH Caliper Ass'y | Includes 71 to 71d

705601129

$338.99

2

Spring And Bolt Kit

715500385

$21.99

3

Bleeding Screw

705600080

$16.87

4

RH Brake Pad Kit

705601150

$51.99

5

Hanger Pin Kit

705601151

$17.99

6

LH Caliper Ass'y | Includes 57 to 57d

705601128

$328.49

7

Spring And Bolt Kit

715500385

$21.99

8

Bleeding Screw

705600080

$16.87

9

LH Brake Pad Kit

705601149

$51.99

10

Hanger Pin Kit

705601151

$17.99

11

Master Cylinder Ass'y | Includes 11 to 13

705601505

$244.99

12

Diaphragm Cap Kit

715500332

$29.49

13

Master Cylinder Rod

705600833

$20.49

14

LH Front Flexible Hose Ass'y

705601192

$86.99

15

Clamp

293650256

$5.49

16

RH Front Flexible Hose Ass'y

705601193

$86.99

17

Clamp

293650256

$5.49

18

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

19

Banjo Bolt

705600958

$6.35

20

Copper Washer

705601628

$4.44

21

Rear Flexible Hose Ass'y | Includes 21 to 22

705601119

$163.99

22

Clamp

293650256

$5.49

23

Hex. Flange Screw M8 X 25

207682544

$1.35

24

Hex. Elastic Stop Nut M8

232581414

$0.56

25

Cotter Pin

371800700

$1.01

26

Pin | Not Shown

250400058

$8.29

27

Yoke | Not Shown

705601142

$15.36

28

Hex. Nut M8

232081414

$0.72

29

Flat Washer M8

234081430

$2.11

30

Pop Rivet 3/16"

390402200

$0.35

31

Elastic Stop Nut M6

232561414

$0.55

32

Hex. Flange Screw M6 X 10

210261040

$1.48

33

Tie-Rap 180 mm

414115200

$0.11

34

Brake Switch

705601250

$59.49

35

LH Caliper Ass'y | Includes 70 to 70d

705601089

$328.49

36

Spring, Protector And Bolt Kit

715500384

$24.99

37

Bleeding Screw

705600080

$16.87

38

LH Brake Pad Kit

705600398

$51.99

39

Pin Set (2)

705600081

$20.49

40

RH Caliper Ass'y | Includes 80 to 80d

705601090

$328.49

41

Spring, Protector And Bolt Kit

715500384

$24.99

42

Bleeding Screw

705600080

$16.87

43

RH Brake Pad Kit

705601147

$51.99

44

Pin Set (2)

705600081

$20.49

45

Open Clamp

518321570

$7.69

46

Brake Pedal

705600724

$57.99

47

Brake Pedal Spring

705600792

$9.10

48

Rubber Stopper

708000759

$4.19

49

O-Ring

293300144

$3.82

50

Inner Spacer

705600815

$11.60

51

Hex. Flange Screw M10 X 55

207605544

$3.38

52

Hex. Flange Elastic Nut M10

233201414

$1.58

53

Disc Brake

705600999

$67.99

54

Disc Brake

705601178

$51.99

55

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

56

Hex. Forming Screw M5 X 16

210251650

$1.15

57

Hex. Flange Elastic Nut M5

233251414

$1.04

58

Hex. Flange Screw M10 X 20, Scotch Grip

250000601

$3.91

59

LH DEFLECTTOR - Call your local BRP dealership

705601197

Unavailable

60

RH DEFLECTOR - Call your local BRP dealership

705601404

Unavailable

61

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

62

Hex. Flange Screw M6 X 40, Scotch Grip

207564044

$4.44

63

Bracket

705601337

$2.69

64

Bracket

705601337

$2.69
