Description

Price

6

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

7

Hex. Flange Screw M6 X 20

207662044

$2.00

8

Hex. Flange Nut M6

233061414

$1.68

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

12

Norma Clamp

293650079

$11.60

15

Norma Clamp

293650091

$11.12

16

Norma Spring Clamp

293650213

$3.17

17

Tie Wrap 368 mm

293750008

$1.04

19

Flat Washer

250200082

$0.42

21

Drain Tube

707800080

$8.29

22

Cover Bracket

707800249

$9.39

23

Retainer Clip

707800278

$13.99

24

Air Intake Silencer Cover

707800326

$33.99

25

Air Filter

707800327

$52.99

26

Intake Adaptor

707800329

$48.99

28

Intake Adaptor

707800515

$67.99

30

Air Intake Silencer Base

707800517

$54.99

31

Intake Adaptor

707800532

$61.99

32

Intake Adaptor Tank

707800533

$5.59

33

Intake Adaptor

707800541

$61.99

34

Was 707800411 Hose 15.88 mm

219704438

$12.99

35

Rear Support

707800560

$18.55

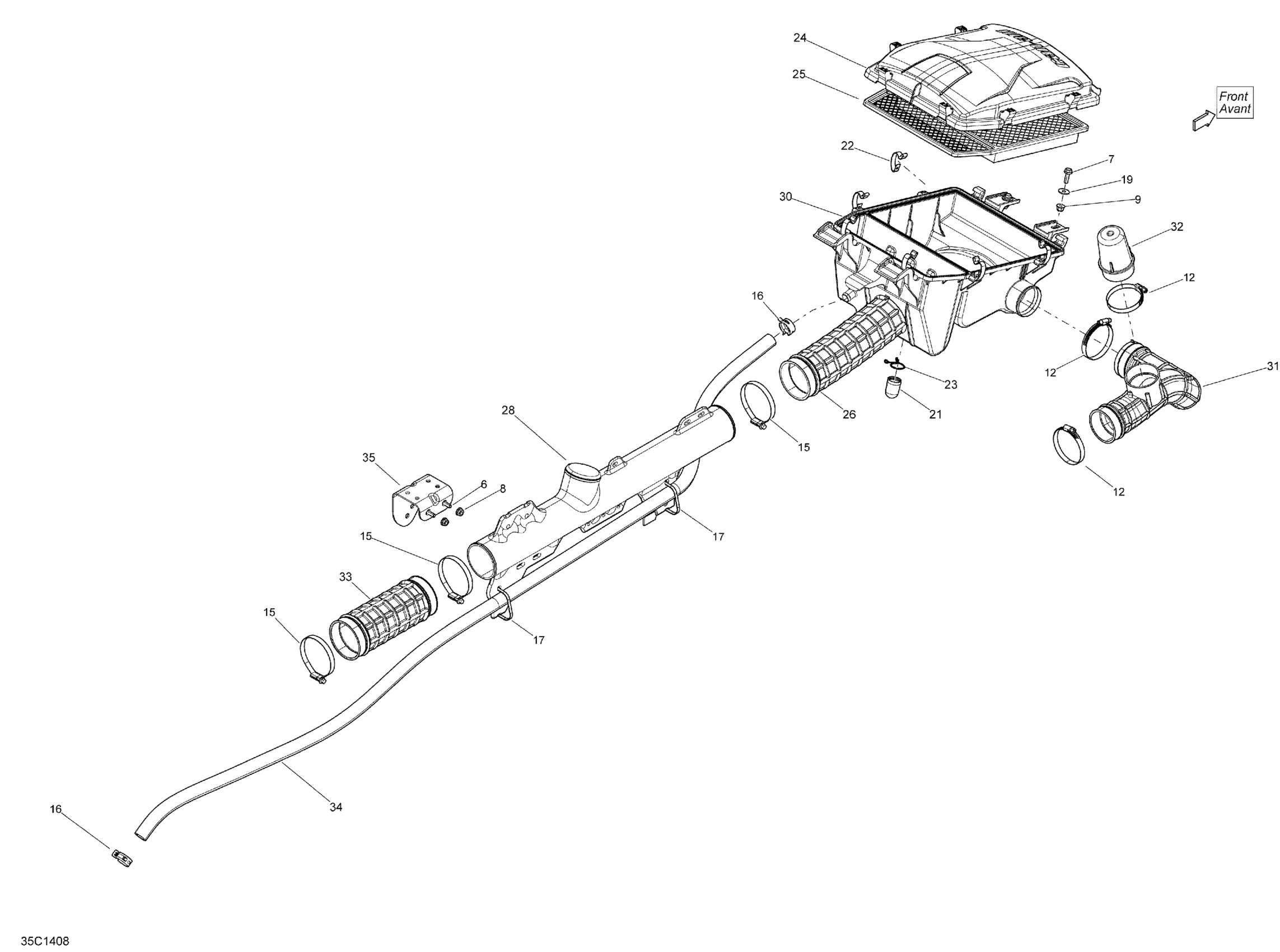

Can-Am Maverick MAX 1000, STD, XRS, XRS-DPS, 2014 02- Air Intake Diagram

Hex. Flange Screw M6 X 16, Scotch Grip

Hex. Flange Screw M6 X 20

Hex. Flange Nut M6

Hex. Flange Elastic Nut M6 x 1.0

Norma Clamp

Norma Clamp

Norma Spring Clamp

Tie Wrap 368 mm

Flat Washer

Drain Tube

Cover Bracket

Retainer Clip

Air Intake Silencer Cover

Air Filter

Intake Adaptor

Intake Adaptor

Air Intake Silencer Base

Intake Adaptor

Intake Adaptor Tank

Intake Adaptor

Was 707800411 Hose 15.88 mm

Rear Support
