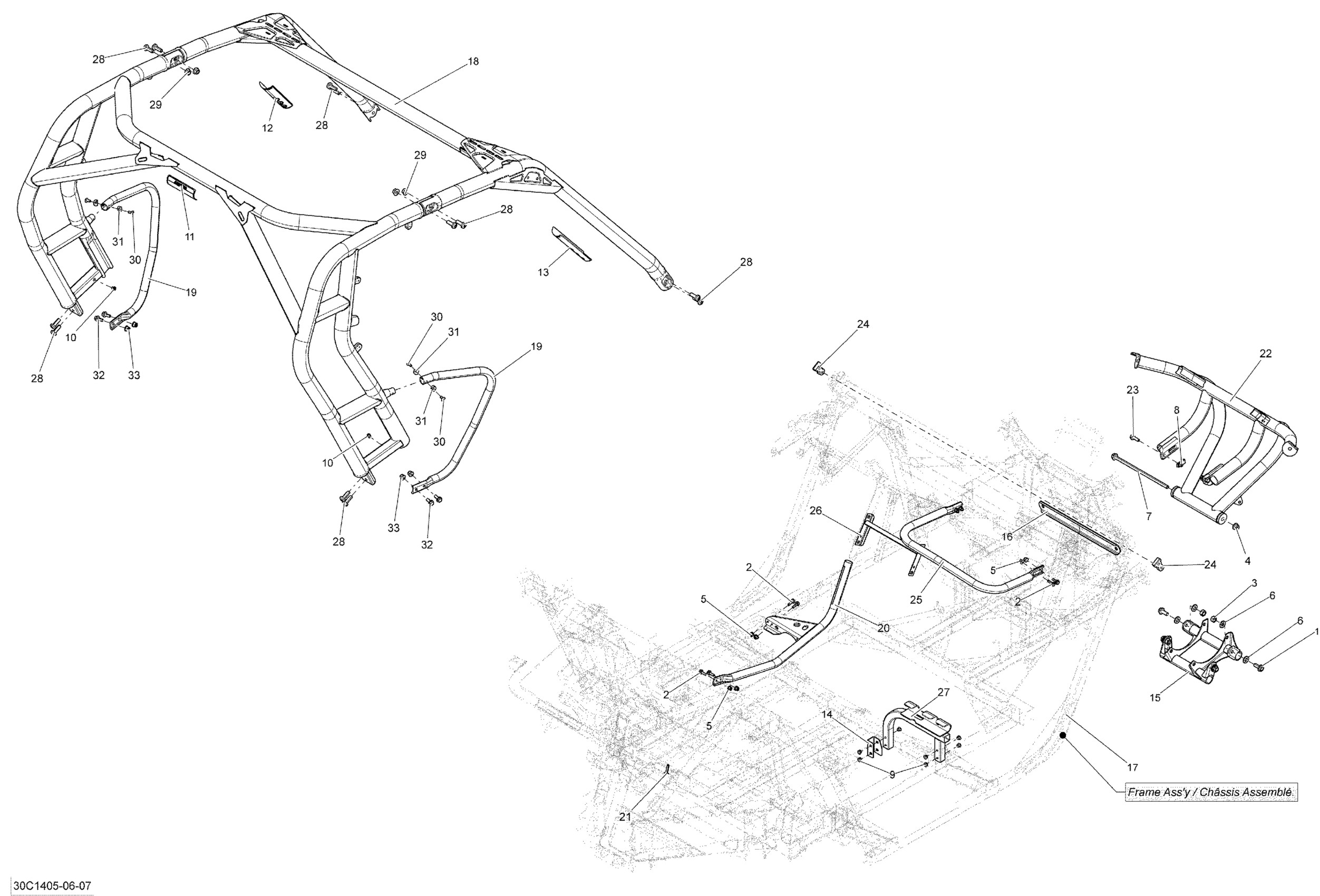

Can-Am Maverick 1000, XXC, 2014 09- Frame Diagram

Hex. Flange Screw M10 X 25

207602546

$2.11

Hex. Flange Screw M6 X 20

207662044

$2.00

Elastic Stop Nut M10

232500416

$1.90

Hex. Flange Elastic Nut M10

233201436

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Conical Spring Washer 10 mm

234201474

$1.69

Hex. Flange Screw

250000597

$12.70

Panel Nut M8 X 1.25

250100118

$2.09

Hemlock Rivet, 6.5 mm

293150096

$3.27

Threaded Insert M6 X 1.0

250100242

Unavailable

Warning Label

704903492

Unavailable

Warning Label

704903679

Unavailable

Warning Label

704903680

Unavailable

Seat Support

705202602

$3.89

DIFFERENTIAL SUPPORT - Call your local BRP dealership

705203296

Unavailable

FRONT SUSPENSION LINK - Call your local BRP dealership

705203454

$22.49

Black Frame Ass'y

715002073

Unavailable

Deep Black, Cage Ass'y | Includes 2 to 8

715004812

$1,039.99

TUBE RH B-160 PAINTED - Call your local BRP dealership | Right

705203640

$43.99

TUBE LH B-160 PAINTED - Call your local BRP dealership | Left

705203637

Unavailable

HANDLE - Call your local BRP dealership

705203828

Unavailable

WELD SCREW - Call your local BRP dealership

732605024

Unavailable

FRONT BUMPER BLACK - Call your local BRP dealership

715001645

Unavailable

SCREW-HEX.CAP DIN.933 S.GRIP - Call your local BRP dealership

207382544

Unavailable

Binding Block

705203415

$18.49

Black Handle

705203332

$132.49

Reinforcement Panel

705203330

$154.99

Black Frame Ass'y

715002073

Unavailable

Screw Pan M10 X 30

250000848

$1.90

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$2.11

Torx Truss M6X14

250000789

$5.39

Offset Washer

705202223

$4.14

Hex. Flange Screw M8 X 20

207682044

$1.15

Hex. Flange Elastic Nut M8

233281414

$1.47
