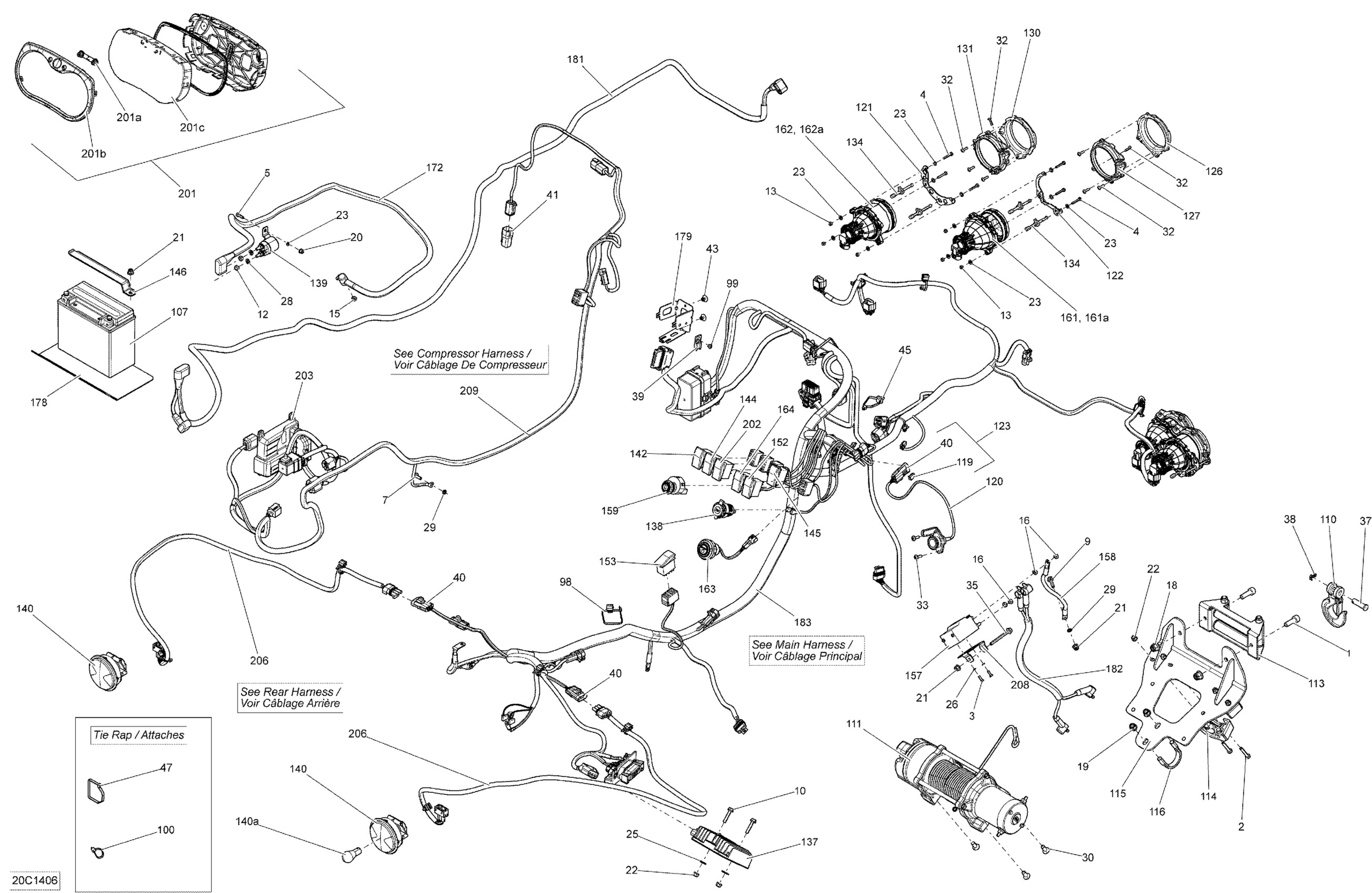

Can-Am Maverick 1000_XMR, 2014 10- Electrical System _20C1406 Diagram

Socket Screw M10 x 30 | XT

205003044

$3.17

Hex. Screw M6 X 40

207064044

$1.48

HEX. SCREW M4 X 10 - Call your local BRP dealership | XT

207141044

Unavailable

Hex. Screw M4 X 25

207142544

$2.00

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

Hex. Nut M6

232061600

$1.15

Elastic Stop Nut M4

232541414

$0.58

Elastic Stop Nut M6

232561414

$0.55

Elastic Stop Nut M6

232561434

$1.99

Hex. Flange Elastic Nut M10

233201414

$1.58

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

Hex. Flange Elastic Nut M5

233251414

$1.04

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Elastic Nut M6

233261494

$1.58

Flat Washer M5

234051410

$0.53

Stainless Steel Flat Washer

234062670

$2.11

Lock Washer 4 mm

234141601

$1.15

Lock Washer Helical M6

234161601

$1.15

External Serrated Lock Washer 6 mm

234461608

$1.15

TORX SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership

235382046

$1.69

Phillips Screw K40 X 16

250000723

$0.98

Torx Screw K50 X 16

250000720

$1.69

Hex. Flange Screw M6 X 60

250000778

$4.44

Clevis Pin

250400021

$13.18

Cotter Pin

250400022

$9.69

Clip

270000141

$11.49

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

Diagnostic Connector

278002704

$19.49

Pop Rivet 3/16"

293150103

$0.55

Mount Dart

293730040

$1.04

Tie Wrap 368 mm

293750008

$1.04

Clip Tie-Rap

293750063

$8.75

Pop Rivet 3/16"

390402400

$0.35

Tie-Rap 180 mm

414115200

$0.11

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

Winch Hook Kit

705014949

$24.99

WINCH - Call your local BRP dealership | XT

705003944

Unavailable

WINCH CABLE GUIDE - Call your local BRP dealership | XT

715001119

Unavailable

CLAMP - Call your local BRP dealership

705006999

Unavailable

Winch Support

715001699

$143.49

U-Bolt M10

705203504

$13.24

Clip

710000992

$4.29

Winch Connector

710001023

$51.99

RH High Light Support

710001115

$5.29

LH High Light Support

710001036

$5.29

RH Low Light Support

710001094

$9.09

LH Low Light Support

710001037

$9.09

Connector Ass'y | XT, Includes 55 to 57

710001059

$9.10

RH Low Front Housing

710001081

$19.99

LH Low Front Housing

710001083

$19.99

RH Low Rear Housing

710001082

$12.99

LH Low Rear Housing

710001084

$12.99

RH High Front Housing

710001085

$19.99

LH High Front Housing

710001087

$19.99

RH High Rear Housing

710001086

$12.99

LH High Rear Housing

710001088

$12.99

Setting Screw

710001147

$12.71

Voltage Regulator | XT, XTP, LTD

710001191

$185.49

DC Outlet

710001248

$37.99

Starter Relay

710007777

$48.49

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

Bulb

520000758

$9.10

Hi/Low Switch | Except Europe

710001725

$21.49

4X4 Switch

710001737

$31.99

Switch DPS

710001781

$22.99

Battery Holder

710001916

$21.99

Switch Winch

710002052

$28.49

Switch, Over ride

710002053

$19.49

Solenoid Kit | XT

715007084

$202.49

NEGATIVE CABLE - Call your local BRP dealership | XT

710004386

Unavailable

Ignition Switch

710008400

$78.49

Low Beam Ass'y | Includes 1 to 2

710002524

$104.99

Halogen Bulb

415129249

$41.49

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

Halogen Bulb

415129249

$41.49

Engine Start Button

710002594

$60.49

SWITCHED ACCESSORY - Call your local BRP dealership

710002684

Unavailable

Cable Positif *Cable-Positive

710004389

$36.99

Heat Deflector

710003265

$16.49

Fuse Holder

710003335

$10.11

WINCH CABLE - Call your local BRP dealership

710004391

Unavailable

WINCH CABLE - Call your local BRP dealership

710004392

Unavailable

WIRING HARNESS ASSY - Call your local BRP dealership | Main Harness

710004342

Unavailable

Multifunction Speedometer | XRS, XRS DPS

710004547

$439.99

Speedometer Button | XTP

415129355

$15.80

Gauge Ring

415129348

$13.99

Lens | XTP

415129349

$24.49

Switch PPS Sport

710003541

$19.49

MODULE - Call your local BRP dealership

710003571

Unavailable

Rear Harness

710003680

$28.99

Support

710003827

Unavailable

WIRING HARNESS_COMPRESSOR - Call your local BRP dealership | XMR

710003839

Unavailable
