Description

Price

1

WIRING HARNESS ASSY - Call your local BRP dealership | Main Harness

710004342

Unavailable

1352

Dart Tie Rap 200MM

710003168

$7.09

1365

Tie-Rap Clip

710002896

$4.39

1398

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

1472

Tie Rap Clip

293750062

$7.62

BAT2

Terminal 90°

710003266

$9.10

BD

Housing Connector

710002001

$13.71

BD

Terminal

710003047

$3.49

BN1

Terminal

710000913

$5.61

BN2

Open Barrel Terminal

278001392

$4.79

BN3

Open Barrel | STD Models

710000518

$11.12

BP1

Terminal

710003311

Unavailable

CC

Male Housing, 6 Circuits

710000849

$9.69

CC

Lock

710000848

$3.19

CC

Terminal | Canada/Usa

710001635

$3.19

CI

Female Housing, 24 Circuits

515175801

$9.59

CI

Retainer Block

515175802

$11.49

CI

Plug

515175812

$2.19

CI

Female Housing

710000399

$16.49

CI

Wire Seal

515175803

$2.99

CI

Female Terminal

710001131

$8.89

D2

Diode

409012700

$11.12

D4

Diode

409012700

$11.12

D5

Diode

409012700

$11.12

DB

Male Wedge, 6 Circuits

515175678

$5.39

DB

Female Terminal

278001665

$4.55

DB2

Female Terminal

278001665

$4.55

DC1

Female Terminal

409010800

$0.99

DC2

Female Terminal

409010800

$0.99

DC3

Female Housing, 2 Circuits

515175658

$16.18

DC3

Male Housing, 2 Circuits

710000667

$8.32

DC3

Female Terminal

515175231

$4.39

DC4

Female Housing, 2 Circuits

515175658

$16.18

DC4

Male Housing, 2 Circuits

710000667

$8.32

DC4

Female Terminal

515175231

$4.39

DC6

Clip

710000992

$4.29

DC6

Female Housing, 2 Circuits

278000217

$9.59

DC6

Male Connector, 2 Circuits

278000220

$15.49

DC6

Wire Seal

278000216

$3.19

DC6

Wire Seal

278000218

$4.39

DC6

Female Terminal

409007300

$0.45

DC7

Insulated Sheath

278001007

$3.58

DC7

Female Terminal | DS 650 X

278001009

$3.19

DPS1

HOUSING CONNECTOR - Call your local BRP dealership

710003472

Unavailable

DPS1

PLUG - Call your local BRP dealership

710003470

Unavailable

DPS1

TERMINAL - Call your local BRP dealership

710003471

Unavailable

DPS2

HOUSING CONNECTOR - Call your local BRP dealership

710003467

Unavailable

DPS2

LOCK - Call your local BRP dealership

710003469

Unavailable

DPS2

Wire Seal

710001159

$6.35

DPS2

TERMINAL - Call your local BRP dealership

710003468

Unavailable

DPSSW

Housing

710002000

$7.90

DPSSW

Terminal

710003047

$3.49

ECM

Cover, 48 positions

710001591

$12.18

ECM

Female Terminal Housing, 48 Circuits

710001588

$48.49

ECM

Plug

710001592

$2.21

ECM

Plug

710001593

$2.21

ECM

Female Terminal

710001589

$2.21

ECM

Female Terminal

710001727

$3.19

FP

Female Housing, 4 Circuits

409209700

$16.18

FP

Wire Seal

278001013

$3.28

FP

Wire Seal

515176621

$7.49

FP

Female Terminal

278001014

$3.28

FP

Female Terminal

710001340

$5.89

FRA

Female Housing, 2 Circuits

515175658

$16.18

FRA

Female Terminal

515175231

$4.39

FT

Female Housing, 2 Circuits

278000217

$9.59

FT

Wire Seal

278000218

$4.39

FT

Male Terminal

409004300

$5.61

HIBM

Housing

710002000

$7.90

HIBM

Terminal

710003048

$4.39

HIBM

Terminal

710003047

$3.49

HIC

Housing

710001928

$16.86

HIC

LOCK - Call your local BRP dealership

710001221

$9.39

HIC

Cap

710001225

$9.19

HIC

Seal

710001230

$2.24

HIC

Seal

710001233

$3.19

HIC

Terminal

710001229

$3.19

HIC

Terminal

710001228

$3.28

HIC5L

Clip

710001038

$5.39

HIC5L

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

HIC5L

Wire Seal

278001065

$7.69

HIC5L

Male Terminal | XT Models

278000222

$3.19

HIC5R

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

HIC5R

Wire Seal

278001065

$7.69

HIC5R

Male Terminal | XT Models

278000222

$3.19

HIC7

Clip

710001038

$5.39

HIC7

Female Housing, 2 Circuits

278000217

$9.59

HIC7

Wire Seal

278000218

$4.39

HIC7

Male Terminal

409004300

$5.61

HIC8

Housing

710003175

$4.95

HIC8

Housing

710003177

$3.59

HO2S1

Housing

710002466

$3.19

HO2S1

Lock

710002469

$2.09

HO2S1

Seal

278001482

$3.19

HO2S1

Gold Terminal

710002597

$3.19

HO2S2

Housing

710002466

$3.19

HO2S2

Lock

710002469

$2.09

HO2S2

Seal

278001482

$3.19

HO2S2

Gold Terminal

710002597

$3.19

OVR

Housing

710002000

$7.90

OVR

Terminal

710003047

$3.49

PDH

Housing

710002278

$7.39

PDH

Lock

710002279

$4.39

PDH

Wire Seal

710001427

$2.09

PDH

Female Terminal

710000918

$7.69

PDL

Housing

710002278

$7.39

PDL

Lock

710002279

$4.39

PDL

Wire Seal

710001427

$2.09

PDL

Female Terminal

710000918

$7.69

PF1

Fuse Puller

710000781

$8.09

PF1

Fuse Cover

710001026

$21.99

PF1

Logo Fuse Relay

710002715

$10.99

PF1

Foam

278002172

$5.89

PF1

Fuse Box Base Ass´y

415129856

$50.99

PF1

Little Fuse, 5 Amperes

710000742

$8.79

PF1

Little Fuse, 7.5 Amperes

710000743

$8.49

PF1

Little Fuse, 10 Amperes

710000744

$8.79

PF1

Little Fuse, 15 Ampere

710000745

$8.49

PF1

Little Fuse, 30 Amperes

710000747

$8.49

PF1

Fuse, 25 Amps

710002590

$19.49

PF1

Cap

710000840

$5.89

PF1

Relay, 30 AMP

515176774

$21.99

PF1

Relay

715900824

$21.99

PF1

Wire Seal

278000999

$3.19

PF1

Seal

415128501

$1.89

PF1

Female Terminal

710000836

$5.61

PF1

Female Terminal

710000837

$5.39

PF2

Fuse, 50 AMP

710001048

$5.08

PF2

Fuse, 40 AMP

710001047

$11.80

PF2

Housing

710001996

$47.49

PF2

LOCK - Call your local BRP dealership

710001633

Unavailable

PF2

Hex. Flange Elastic Nut M6

233261494

$1.58

PF2

Cap

710001631

$1.09

PF2

Seal Joint

710003134

$1.39

PF2

Terminal Joint

710001905

$2.09

PF2

Terminal

710001636

$3.19

PF21

Protector Cap

710000526

$10.99

PF21

Open Barrel Terminal

278001392

$4.79

PGH

Housing

710002278

$7.39

PGH

Lock

710002279

$4.39

PGH

Wire Seal

710001427

$2.09

PGH

Female Terminal

710000918

$7.69

PGL

Housing

710002278

$7.39

PGL

Lock

710002279

$4.39

PGL

Wire Seal

710001427

$2.09

PGL

Female Terminal

710000918

$7.69

PPS

Female Terminal Housing 6 Circuits

278002299

$9.10

PPS

Female Terminal

710001119

$5.39

RD1

Female Housing, 3 Circuits

710000879

$25.99

RD1

Cap

710000882

$11.49

RD1

Seal

710001932

$3.27

RD1

Terminal

710001934

$5.50

SB

Housing

710002177

$3.19

SB

Lock

710002043

$0.90

SB

Seal

278001482

$3.19

SB

Female Terminal

710001134

$7.69

SPSW

Housing

710002000

$7.90

SPSW

Terminal

710003047

$3.49

SS1

Female Terminal

409010300

$4.39

SS2

Female Terminal

409010300

$4.39

STSW

Seal

409012300

$4.54

STSW

Female Terminal

409012100

$4.55

SW1

Female Terminal

409010300

$4.39

SW2

Female Terminal

409010300

$4.39

SW3

Female Terminal

710000038

$4.55

SW4

Open Barrel

278000992

$2.21

SWW

Housing Connector

710002003

$13.71

SWW

Terminal

710003047

$3.49

SWWRC

Male Housing, 3 Circuits

278000273

$9.59

SWWRC

Wire Seal

278001065

$7.69

SWWRC

Female Terminal

278000223

$3.19

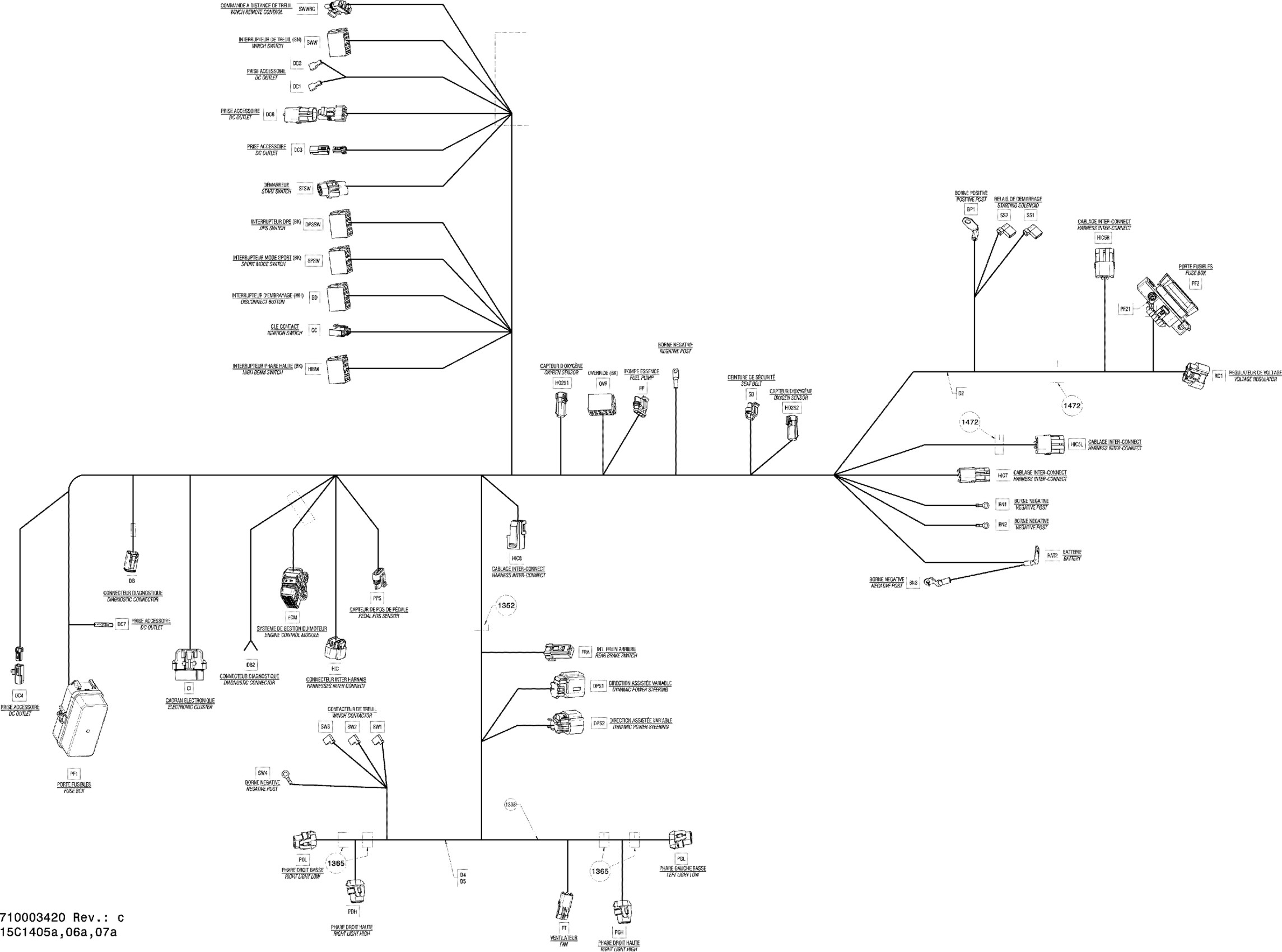

Can-Am Maverick 1000_XMR, 2014 10- Electrical Harness Main_15C1406a Diagram

WIRING HARNESS ASSY - Call your local BRP dealership | Main Harness

Dart Tie Rap 200MM

Tie-Rap Clip

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

Tie Rap Clip

Terminal 90°

Housing Connector

Terminal

Terminal

Open Barrel Terminal

Open Barrel | STD Models

Terminal

Male Housing, 6 Circuits

Lock

Terminal | Canada/Usa

Female Housing, 24 Circuits

Retainer Block

Plug

Female Housing

Wire Seal

Female Terminal

Diode

Diode

Diode

Male Wedge, 6 Circuits

Female Terminal

Female Terminal

Female Terminal

Female Terminal

Female Housing, 2 Circuits

Male Housing, 2 Circuits

Female Terminal

Female Housing, 2 Circuits

Male Housing, 2 Circuits

Female Terminal

Clip

Female Housing, 2 Circuits

Male Connector, 2 Circuits

Wire Seal

Wire Seal

Female Terminal

Insulated Sheath

Female Terminal | DS 650 X

HOUSING CONNECTOR - Call your local BRP dealership

PLUG - Call your local BRP dealership

TERMINAL - Call your local BRP dealership

HOUSING CONNECTOR - Call your local BRP dealership

LOCK - Call your local BRP dealership

Wire Seal

TERMINAL - Call your local BRP dealership

Housing

Terminal

Cover, 48 positions

Female Terminal Housing, 48 Circuits

Plug

Plug

Female Terminal

Female Terminal

Female Housing, 4 Circuits

Wire Seal

Wire Seal

Female Terminal

Female Terminal

Female Housing, 2 Circuits

Female Terminal

Female Housing, 2 Circuits

Wire Seal

Male Terminal

Housing

Terminal

Terminal

Housing

LOCK - Call your local BRP dealership

Cap

Seal

Seal

Terminal

Terminal

Clip
