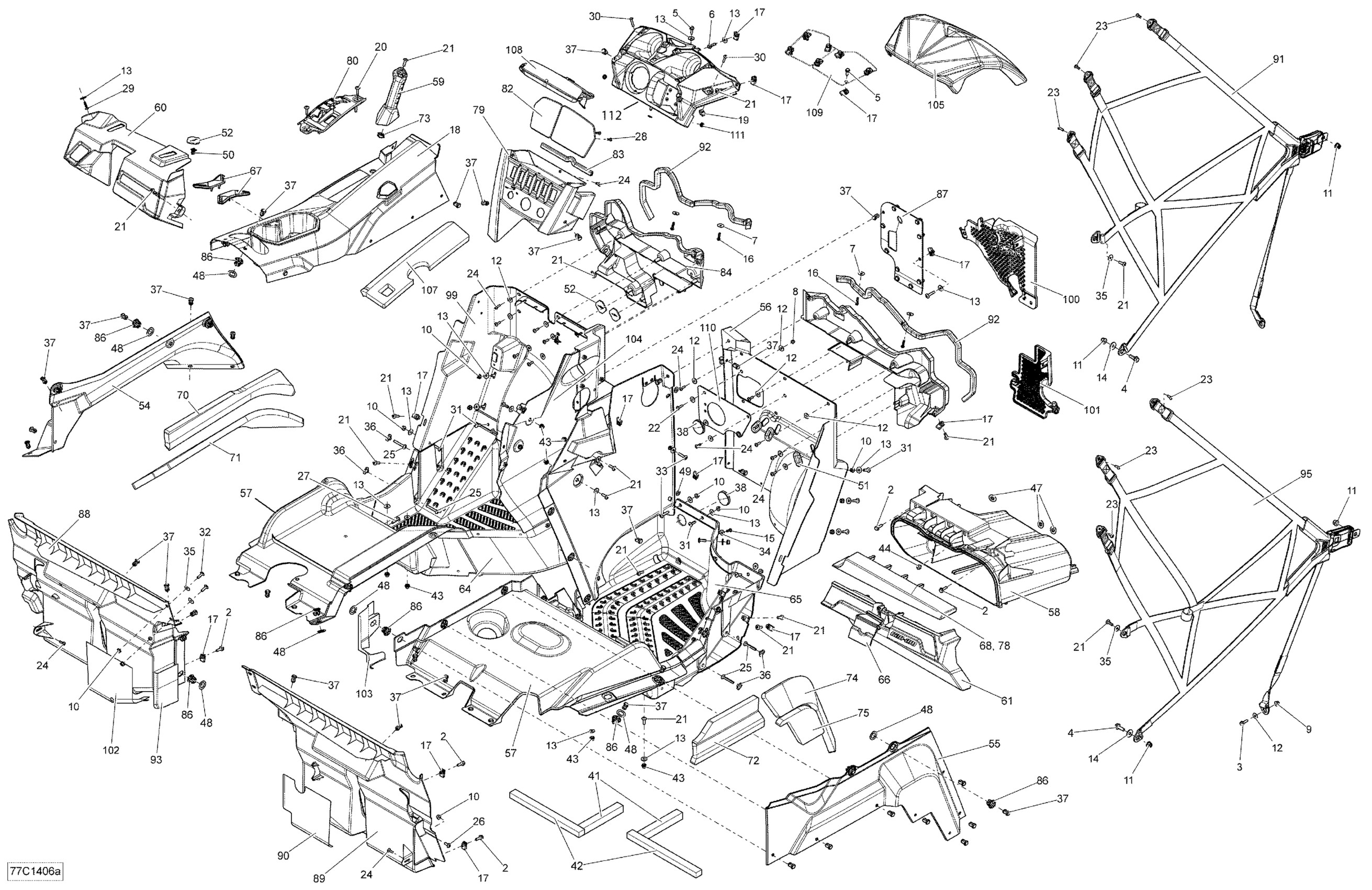

Can-Am Maverick 1000_XMR, 2014 09- Cab Interior _77C1406a Diagram

#

Description
Price

2

Hex. Flange Screw M6 X 20

207662034

$2.11

3

Hex. Flange Screw M6 X 20

207662044

$2.00

4

Hex. Flange Screw M8 X 25

207682544

$1.35

5

Hexagonal Head Screw

210262050

$2.11

6

Hex. Flange Forming Screw M6 X 25

210262580

$1.90

7

Flat Washer

224060201

$1.26

8

Elastic Flange Nut M5

233251494

$2.11

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

10

Hex. Flange Elastic Nut M6

233261494

$1.58

11

Hex. Flange Elastic Nut M8

233281414

$1.47

12

Flat Washer 6 mm

234062410

$0.77

13

Stainless Steel Flat Washer

234062670

$2.11

14

Flat Washer 8 mm

234082410

$1.47

15

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

16

Hex. Flange Screw K50 X 20

241152060

$1.99

17

Panel Nut M6 X 1.0

250100198

$2.11

18

CENTRAL CONSOLE KIT - Call your local BRP dealership | Except Europe

715002912

Unavailable

19

Panel Nut M5 X 0.8

250000958

$4.23

20

Torx Screw M6 X 25 | XT Models

250000728

$4.44

21

Torx Screw M6 X 20

250000722

$1.68

22

Torx Screw M5 X 20

250000724

$1.69

23

Torx Screw M5 X 14

250000742

$1.47

24

Torx Screw K50 X 16

250000720

$1.69

25

Torx Screw M6 X 45

250000215

$1.90

26

Torx Screw M6 X 16

250000755

$0.87

27

Torx Screw M6 x 25

250000284

$2.11

28

Torx-Truss Pt K40 X 16

250000759

$2.11

29

Truss Head Torx Screw K50 X 20

250000297

$2.11

30

Torx Screw M5 X 25

250000762

$2.11

31

Hex. Socket Screw M6 X 20

250000770

$2.09

32

Torx Truss Screw M6 X 20

250000350

$5.29

33

Torx Truss Screw M6 X 30

250000843

$2.11

34

Washer M5

250200025

$0.74

35

Flat Washer

250200040

$1.90

36

Nut Welded, M6

293100003

$9.12

37

Tuflok Plastic Rivet

293150230

$1.47

38

Rubber Cover

293250242

$6.99

41

SEAL TRAY - Call your local BRP dealership

293250318

Unavailable

42

SEAL TRAY - Call your local BRP dealership

293250319

Unavailable

43

Threaded Insert M6 X 1.0

250100242

Unavailable

44

Rubber Bumper

293830005

$8.09

47

CAP - Call your local BRP dealership

414859400

Unavailable

48

Washer

503189273

$3.28

49

Washer

506151252

$3.17

50

Edge Clip

517302785

$0.88

51

Oblong Grommet

705003668

$5.79

52

Support Plate

705003841

$0.99

54

LH Side Console

707900001

$44.99

55

RH Side Console

707900002

$36.99

56

RH Front Floor

707900004

$83.99

57

LH Under Seat Plate

707900218

$81.99

57

RH Under Seat Plate

707900006

$114.99

58

Storage Bin | XT

707900046

$104.99

59

Passenger Handle

707900011

$13.75

60

Dashboard Ass'y

715001250

$79.99

61

LUGGAGE COVER KIT - Call your local BRP dealership

707900221

$49.99

64

LH Lower Floor

707900022

$269.99

65

RH Lower Floor

707900023

$194.99

66

Latch

707900031

$8.49

67

Cup Retainer

707900036

$6.89

68

Trim Glove Box

707900062

$18.49

70

Left Upper Lateral Console Foam

707900620

$16.49

71

LH Lower Lateral Console Foam

707900621

$23.99

72

RH Lateral Console Foam

707900622

$16.49

73

Connector Tube

707900048

$6.19

74

RH Lateral Console Foam

707900623

$16.49

75

RH Lateral Console Foam

707900624

$16.49

78

Trim Glove Box

707900062

$18.49

79

Central Dashboard Ass'y

715002187

$38.99

80

Lever Indicator

707900070

$15.49

82

GPS Cover And Radio Control

707900104

$13.22

83

Was 271000110 Protection Trim

219704353

$15.99

84

Floor Support LH

707900561

$21.99

86

Insert

707900133

$2.89

87

Deflector | XRS-DPS

707900204

$17.49

88

DEFLECTOR_BODY PANEL REAR L - Call your local BRP dealership | LTD Model

707900165

Unavailable

89

DEFLECTOR_BODY PANEL REAR R - Call your local BRP dealership

707900166

Unavailable

90

Heat Shield

707900167

$9.39

91

Front LH Safety Net

707900237

$119.99

92

Was 293200017 Neoprene Seal

219704365

$149.99

93

Heat Shield

707900183

$5.29

95

Front RH Safety Net

707900238

$119.99

99

LH Front Upper Floor

707900175

$83.99

100

Grille

707900178

$10.99

101

Grille

707900180

$10.99

102

Heat Shield

707900182

$8.89

103

Heat Shield

707900184

$5.29

104

Front Side Dash Panel

707900193

$69.99

105

DASHBOARD CAP - Call your local BRP dealership

707900200

Unavailable

107

Front Central Console Foam

707900619

$18.99

108

CENTRAL FILTER - Call your local BRP dealership

707900215

Unavailable

109

DASHBOARD COVER - Call your local BRP dealership

707900216

Unavailable

110

Hose Support

707900217

$18.49

111

Push Nut

732610072

$2.19

112

Upper Central Console Ass'y

707900199

$40.99
