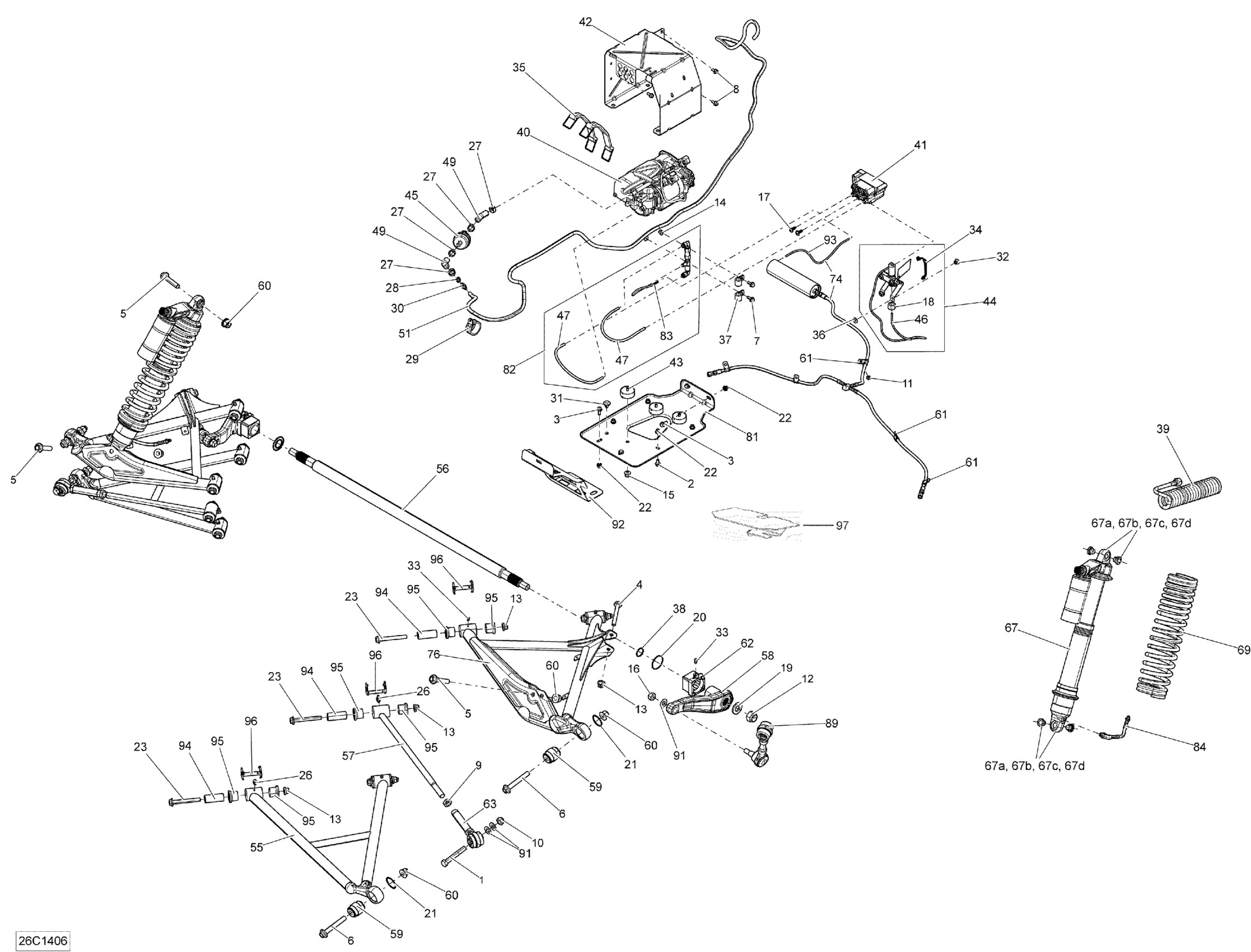

Can-Am Maverick 1000_XMR, 2014 08- Rear Suspension _26C1406 Diagram

Hex. Screw M12 X 80

207028046

$3.91

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Hex. Flange Screw M10 X 70

207607046

$2.96

Hex. Flange Screw M12 X 60

207626046

$7.41

Hex. Flange Screw M12 X 85

207628546

$6.77

Hex. Flange Screw M6 X 16

207661644

$0.74

Hex. Flange Screw M6 X 12

210261250

$1.90

LH Hex. Lock Nut M14

232175411

$6.67

Elastic Stop Nut M12

232521416

$1.69

Elastic Stop Nut M6

232561414

$0.55

Elastic Stop Nut M18

232591414

$4.39

Hex. Flange Elastic Nut M10

233201436

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Flange Elastic Nut M12

250000047

$1.90

Oval Head Torx Screw K60 X 16

250000546

$2.11

Hex. Nut With Nylon 1/2" X 20

250100124

$7.51

Washer

250200045

$7.73

O-Ring

293300100

$5.72

Retaining Ring

293370093

$7.59

Threaded Insert M6 X 1.0

250100242

Unavailable

Hex Flange Screw M10 X 80

207608046

$6.69

Grease Fitting 90°

293550056

$1.15

Crimp Clamp

293650053

$3.09

Clamp, Oetiker

293650195

$1.09

Hose Retainer

293650218

$9.39

Straight Fitting

293710035

$8.89

Mount Dart

293730040

$1.04

Pop Rivet 3/16"

390406500

$0.88

Grease Fitting

408200700

$3.49

O-Ring

414811400

$7.06

Battery Strap

515176044

$18.49

Washer

517124300

$0.19

Open Clamp

705600040

$13.24

Retaining Ring

706000251

$6.35

Auxiliary Hose

706000808

$104.99

COMPRESSOR - Call your local BRP dealership

706001100

Unavailable

Solenoid Valve

706001104

$963.99

Pressure Connector 4mm

715900198

$11.00

PRESSURE CONNECTOR 6MM - Call your local BRP dealership

715900199

Unavailable

Solenoid Valve

706001104

$963.99

UPPER SUPPORT - Call your local BRP dealership

706001120

Unavailable

RUBBER MOUNT - Call your local BRP dealership

706001127

Unavailable

BRACKET ASS'Y - Call your local BRP dealership

706001873

Unavailable

Air Filter

706001141

$33.99

HOSE 4.0MM - Call your local BRP dealership

706001874

$11.49

HOSE, POLYURETHANE 6 MM - Call your local BRP dealership

706001145

$11.49

FUEL LINE 10000MM LONG - Call your local BRP dealership

219704411

Unavailable

Polyurethane Hose 10000Mm Long

219704410

$56.99

Black LH Rear Lower Arm

706001354

$201.49

Black RH Rear Lower Arm

706001355

$201.49

Sway Bar

706001356

$185.49

Rear Coupling Bar

706001357

$48.99

Sway Bar Lever

706001371

$169.99

Radial Joint

706001373

$52.99

Elastic Flange Nut M12

233221416

$2.85

Bracket

705601337

$2.69

Sway Bar Housing

706001402

$15.49

LH Ball Joint

706001438

$54.99

REAR SHOCKS - Call your local BRP dealership

706001465

Unavailable

Spherical Bearing

715900251

$82.99

Retaining Ring

715900252

$12.49

Interior Bushing | XTP

715900210

$15.82

O-Ring Bushing

715900209

$14.75

YELLOW SPRING - Call your local BRP dealership

706001466

Unavailable

REAR SHOCKS DISTRIBUTOR - Call your local BRP dealership

706001565

Unavailable

YELLOW LH REAR UPPER ARM - Call your local BRP dealership | Model-XRS Black

706002093

Unavailable

YELLOW RH REAR UPPER ARM - Call your local BRP dealership | Model-XRS Black

706002094

Unavailable

LOWER SUPPORT - Call your local BRP dealership

706001121

Unavailable

PRESSURE DISTRIBUTOR - Call your local BRP dealership

706001716

Unavailable

HOSE 4.0MM - Call your local BRP dealership

706001874

$11.49

HOSE - Call your local BRP dealership

706001937

Unavailable

LH Double Ball Joint

706001741

$102.99

RH Double Ball Joint

706001742

$102.99

Hardened Washer

706200281

$2.85

TANK BRACKET - Call your local BRP dealership

706201524

Unavailable

HOSE 4.0MM - Call your local BRP dealership

706001874

$11.49

Sleeve

706201590

$11.99

Suspension Arm Bushing

706204409

$9.10

Wear Plate

706201660

$0.95

Heat Deflector

706001768

Unavailable
