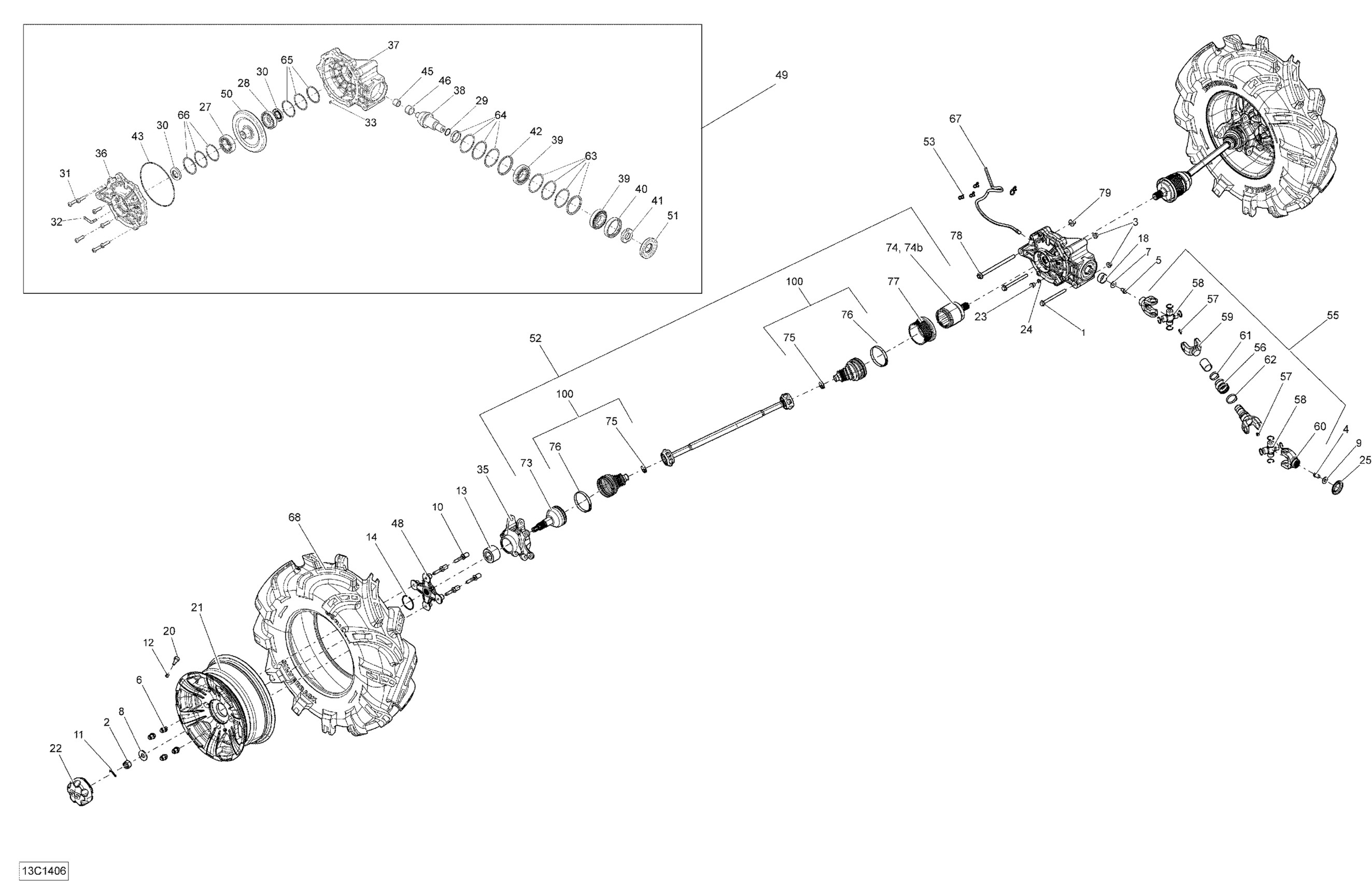

Can-Am Maverick 1000_XMR, 2014 08- Drive System, Rear _13C1406 Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 125

230602546

$7.41

2

Hex. Flange Castellated Nut M18

232291413

$7.98

3

Hex. Flange Elastic Nut M10

233201436

$2.11

4

Hex Flange Screw M12 X 16

250001039

$2.11

5

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

6

Black, Wheel Nut M10 X 1.25

250100184

$4.51

7

Flat Washer M10 | 4X4

250200014

$1.49

8

Conical Spring Washer M18

250200171

$7.65

9

Flat Washer M12

250200102

$2.11

10

Wheel Stud

250300060

$11.49

11

Cotter Pin

250400036

$2.11

12

Valve Cap

293000110

$1.59

13

Ball Bearing

293350150

$52.99

14

Circlip

293370019

$4.68

18

Wear Ring | 4X4

705400036

$26.49

20

Rim Valve With Cap

705400193

$8.69

21

Matte Black Rim

705401552

$148.99

22

Wheel Cap

705401318

$22.49

23

Fill Level Plug | 4X4

705500504

$10.01

24

Copper Washer | 4X4

705500506

$0.45

25

Protector

705501123

$7.55

27

Final Drive Unit

705502546

$1,144.99

28

Final Drive Unit

705502546

$1,144.99

29

O-Ring

705501554

$5.03

30

Oil Seal

705501556

$17.99

31

Bolt

705501562

$5.00

32

Breather Tube

705501584

$14.99

33

Plug Drain

705501724

$5.95

35

LH Rear Knuckle

705501730

$185.49

35

RH Rear Knuckle

705501731

$195.99

36

Final Drive Unit | Includes 30 to 30m

705502275

$1,268.49

37

Final Drive Unit | Includes 30 to 30m

705502275

$1,268.49

38

Final Drive Unit | Includes 30 to 30m

705502275

$1,268.49

39

Final Drive Unit | Includes 30 to 30m

705502275

$1,268.49

40

Final Drive Unit | Includes 30 to 30m

705502275

$1,268.49

41

Final Drive Unit | Includes 30 to 30m

705502275

$1,268.49

42

Final Drive Unit | Includes 30 to 30m

705502275

$1,268.49

43

Oil Seal

705501749

$9.27

45

Final Drive Unit | Includes 30 to 30m

705502275

$1,268.49

46

Final Drive Unit | Includes 30 to 30m

705502275

$1,268.49

48

Wheel Hub

705501900

$132.49

49

Final Drive Unit | Includes 30 to 30m

705502275

$1,268.49

50

Final Drive Unit | Includes 30 to 30m

705502275

$1,268.49

51

Oil Seal

705502276

$15.34

52

Half Shaft | Includes 230 to 230e

705502356

$243.99

53

Dart Tie Rap 200MM

710003168

$7.09

55

Shaft Ass'y Kit | Includes 10 to 10g

703500994

$307.49

56

Rubber Boot

715900118

$14.30

57

Grease Fitting

715900184

$5.24

58

Universal Joint Ass'y | T3

703500846

$59.49

59

Joint

715900271

$24.99

60

Joint

715900272

$24.99

61

Oetiker Gear Clamp 36.1MM

509000045

$8.29

62

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

63

Final Drive Unit | Includes 30 to 30m

705502275

$1,268.49

64

Final Drive Unit | Includes 30 to 30m

705502275

$1,268.49

65

Final Drive Unit | Includes 30 to 30m

705502275

$1,268.49

66

Final Drive Unit | Includes 30 to 30m

705502275

$1,268.49

67

Polyurethane Hose 10000Mm Long

219704410

$56.99

68

TIRE_30X9R14 - Call your local BRP dealership | XMR

705401501

Unavailable

73

CV_JOINT EXT - Call your local BRP dealership

705501863

Unavailable

74

Plunging Joint

705501865

$259.49

74b

Circlip

705501781

$6.50

75

Oetiker Clamp, 82.1 mm

715900241

$10.33

76

Oetiker Clamp, 27.3 mm

715900242

$10.33

77

HEAT DISSIPATOR - Call your local BRP dealership

705501841

Unavailable

78

Hex. Flange Screw M12 X 190

230629087

$19.99

79

Elastic Flange Nut M12

233221416

$2.85

100

Boot Kit

705501864

$42.49
