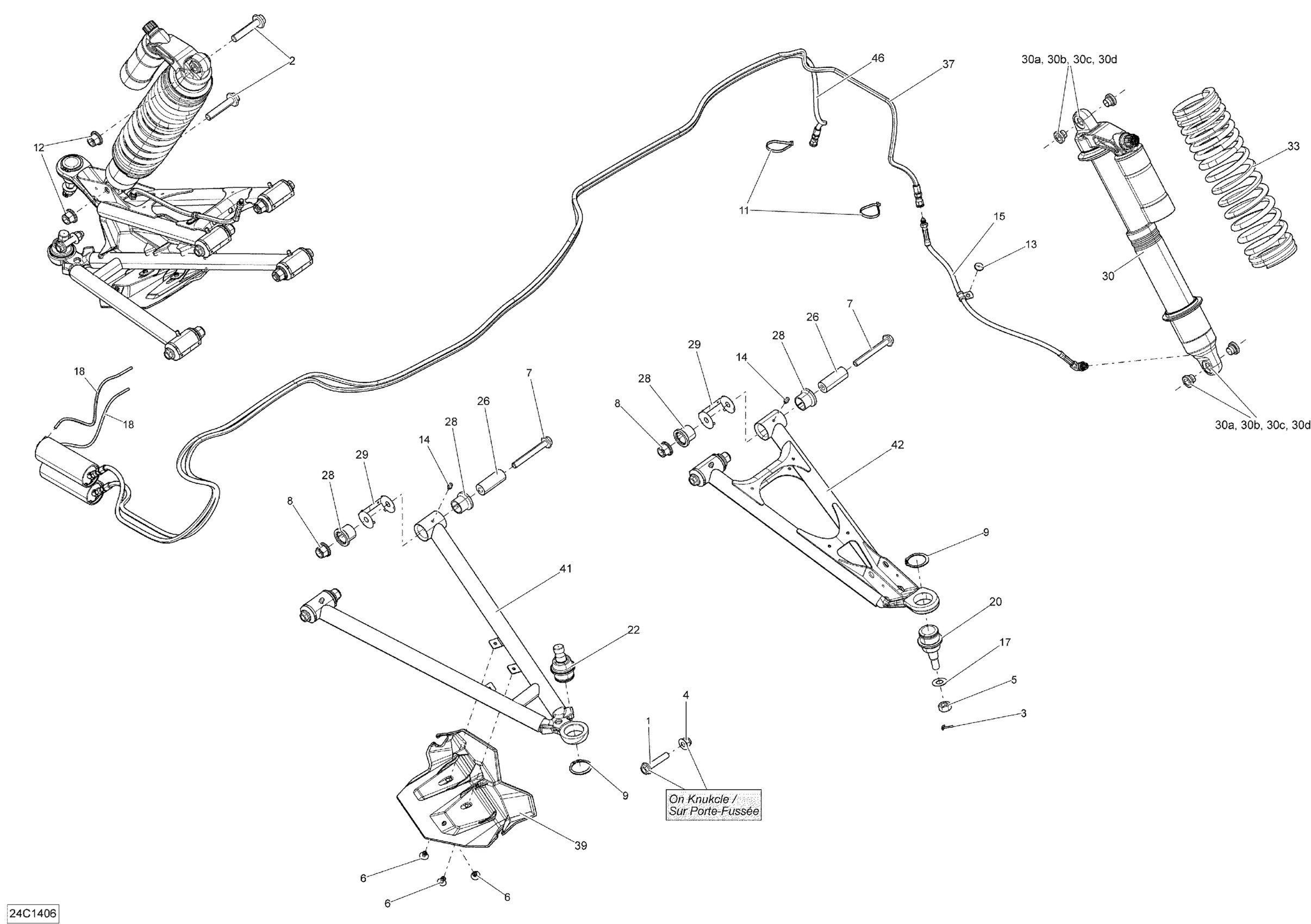

Can-Am Maverick 1000_XMR, 2014 07- Front Suspension _24C1406 Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 50

207605044

$5.29

2

Hex. Flange Screw M12 X 60

207626046

$7.41

3

Cotter Pin

211400017

$0.33

4

Hex. Flange Elastic Nut M10

233201414

$1.58

5

Nut M12

250100099

$2.09

6

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

7

Hex Flange Screw M10 X 80

207608046

$6.69

8

Hex. Flange Elastic Nut M10

233201436

$2.11

9

Circlip

293370035

$2.64

11

Tie Wrap 142 mm

293750002

$1.25

12

Elastic Flange Nut M12

233221416

$2.85

13

Pop Rivet 3/16"

390406500

$0.88

14

Grease Fitting

408200700

$3.49

15

Rear Hose Ass'y

706002299

$83.99

17

Hardened Washer

706200281

$2.85

18

HOSE 4.0MM - Call your local BRP dealership

706001874

$11.49

20

Ball Joint

706202044

$35.99

22

Ball Joint

706202045

$35.99

26

Sleeve

706201590

$11.99

28

Suspension Arm Bushing

706204409

$9.10

29

Wear Plate

706201660

$0.95

30

Front Shock | Includes 30a To 30d

706201717

$869.99

30a

Spherical Bearing

715900251

$82.99

30b

Retaining Ring

715900252

$12.49

30c

Interior Bushing | XTP

715900210

$15.82

30d

O-Ring Bushing

715900209

$14.75

33

YELLOW FRONT SPRING - Call your local BRP dealership

706201718

Unavailable

37

RH Hose Ass'y

706201999

$174.99

39

LH Joint Protector

706202808

$9.90

39

RH Joint Protector

706202809

$9.90

41

LH Front Lower Arm

706201861

$201.49

41

RH Front Lower Arm

706201862

$201.49

42

YELLOW FRONT UPPER ARM - Call your local BRP dealership | Model-XRS Black, XRP-DPS Black

706202090

Unavailable

46

LH FRONT HOSE ASS'Y - Call your local BRP dealership

706201965

Unavailable
