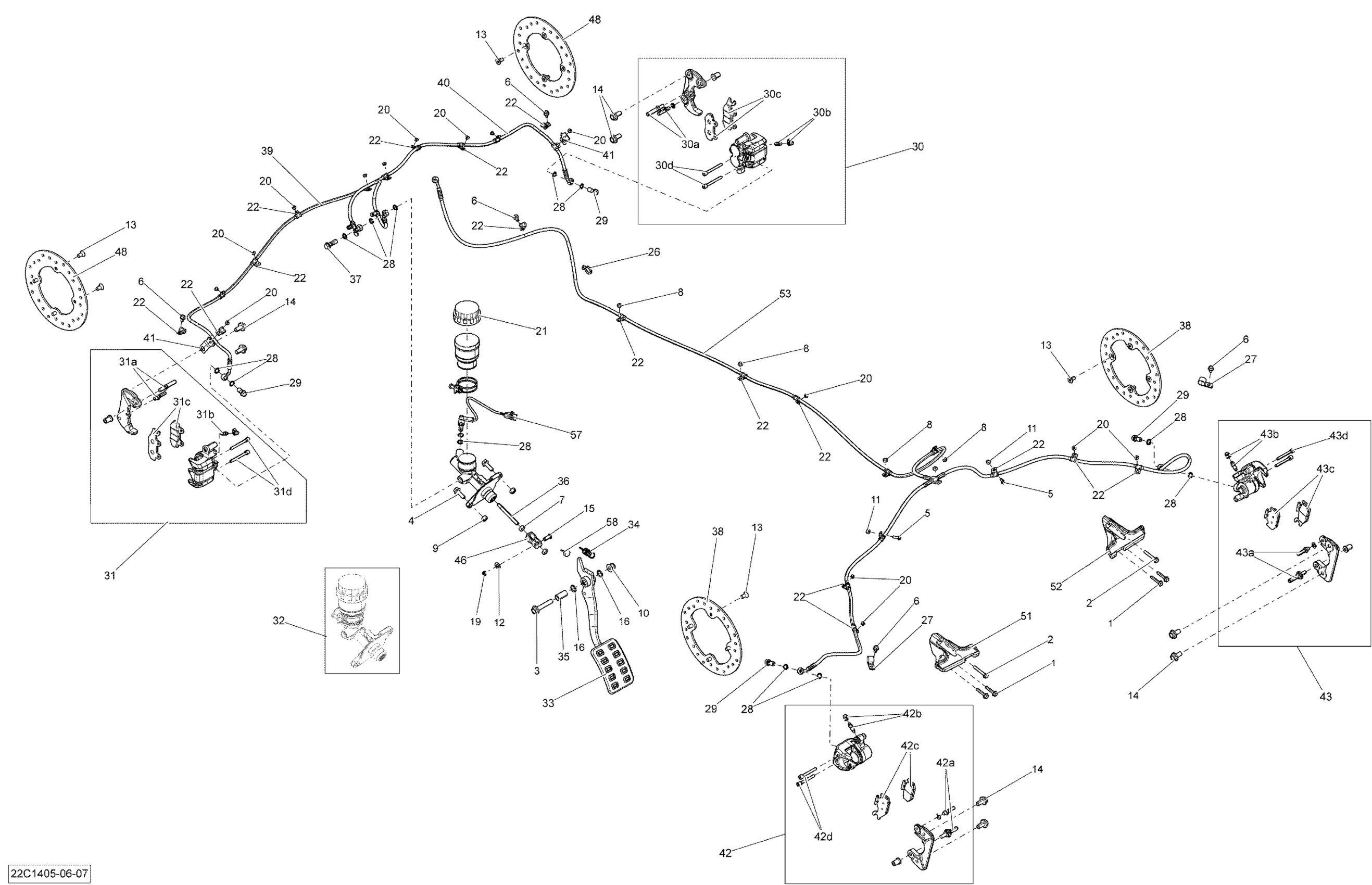

Can-Am Maverick 1000_XMR, 2014 06- Brakes _22C1406 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

2

Hex. Flange Screw M6 X 40, Scotch Grip

207564044

$4.44

3

Hex. Flange Screw M10 X 55

207605544

$3.38

4

Hex. Flange Screw M8 X 25

207682544

$1.35

5

Hex. Forming Screw M5 X 16

210251650

$1.15

6

Hex. Flange Screw M6 X 10

210261040

$1.48

7

Hex. Nut M8

232081414

$0.72

8

Elastic Stop Nut M6

232561414

$0.55

9

Hex. Elastic Stop Nut M8

232581414

$0.56

10

Hex. Flange Elastic Nut M10

233201414

$1.58

11

Hex. Flange Elastic Nut M5

233251414

$1.04

12

Flat Washer M8

234081430

$2.11

13

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

14

Hex. Flange Screw M10 X 20, Scotch Grip

250000601

$3.91

15

Pin | Not Shown

250400058

$8.29

16

O-Ring

293300144

$3.82

19

Cotter Pin

371800700

$1.01

20

Pop Rivet 3/16"

390402200

$0.35

21

Diaphragm Cap Kit

715500332

$29.49

22

Clamp

293650256

$5.49

26

Tie-Rap 180 mm

414115200

$0.11

27

Open Clamp

518321570

$7.69

28

Copper Washer

705601628

$4.44

29

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

30

RH Caliper Ass'y | Includes 71 to 71d

705601129

$338.99

30a

Spring And Bolt Kit

715500385

$21.99

30b

Bleeding Screw

705600080

$16.87

30c

RH Brake Pad Kit

705601150

$51.99

30d

Hanger Pin Kit

705601151

$17.99

31

LH Caliper Ass'y | Includes 57 to 57d

705601128

$328.49

31a

Spring And Bolt Kit

715500385

$21.99

31b

Bleeding Screw

705600080

$16.87

31c

LH Brake Pad Kit

705601149

$51.99

31d

Hanger Pin Kit

705601151

$17.99

32

Master Cylinder Ass'y | Includes 11 to 13

705601505

$244.99

33

Brake Pedal

705600724

$57.99

34

Brake Pedal Spring

705600792

$9.10

35

Inner Spacer

705600815

$11.60

36

Master Cylinder Rod

705600833

$20.49

37

Banjo Bolt

705600958

$6.35

38

Disc Brake

705600999

$67.99

39

LH Front Flexible Hose Ass'y

705601192

$86.99

40

RH Front Flexible Hose Ass'y

705601193

$86.99

41

Bracket

705601337

$2.69

42

LH Caliper Ass'y | Includes 70 to 70d

705601089

$328.49

42a

Spring, Protector And Bolt Kit

715500384

$24.99

42b

Bleeding Screw

705600080

$16.87

42c

LH Brake Pad Kit

705600398

$51.99

42d

Pin Set (2)

705600081

$20.49

43

RH Caliper Ass'y | Includes 80 to 80d

705601090

$328.49

43a

Spring, Protector And Bolt Kit

715500384

$24.99

43b

Bleeding Screw

705600080

$16.87

43c

RH Brake Pad Kit

705601147

$51.99

43d

Pin Set (2)

705600081

$20.49

46

Yoke | Not Shown

705601142

$15.36

48

Disc Brake

705601178

$51.99

51

LH DEFLECTTOR - Call your local BRP dealership

705601197

Unavailable

52

RH DEFLECTOR - Call your local BRP dealership

705601404

Unavailable

53

Rear Flexible Hose

705601218

$163.99

57

Brake Switch

705601250

$59.49

58

Rubber Stopper

708000759

$4.19
