Description

Price

1

Electric starter Ass'y

420684566

$265.99

2

O-Ring

420250140

$8.57

3

Torx Flange Screw M8 X 25

420440372

$4.12

4

Starter Double Gear 11/49 T

420634741

$199.99

5

Starter Intermediate Gear, 30 Teeth

420634605

$81.49

6

Location Pin 10 M6x50

420229302

$3.17

7

Free Wheel Gear, 64 Teeth | Includes 5a to 6

420434235

$194.99

8

Sprag Clutch

420659111

$259.99

9

Sparg Clutch Housing

420659263

$154.99

10

Flywheel | With DPS, European Community, T3

420685649

$582.99

11

Torx Flange Screw M8 X 16

420440852

$4.12

12

Shim

420627270

$4.12

13

Socket Head Screw M16 X 35

420241549

$8.57

14

Stator Plate, 650W | XT, XTP

420685632

$319.49

15

Torx Flange Screw M6 X 35

420440274

$1.01

16

Interior Cable Support Ass'y

420251889

$14.30

17

Phillips Screw M4 X 8

420240196

$2.32

18

Gasket

420651203

$35.99

19

Ignition Cover

420212225

$190.49

20

Torx Flange Screw M6 X 35

420440274

$1.01

21

O-Ring

420430782

$5.39

22

Plug Screw M24X 1.5

420241633

$7.41

23

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

24

O-Ring

420431580

$14.83

25

Torx Flange Screw M6 X 16

420641048

$2.96

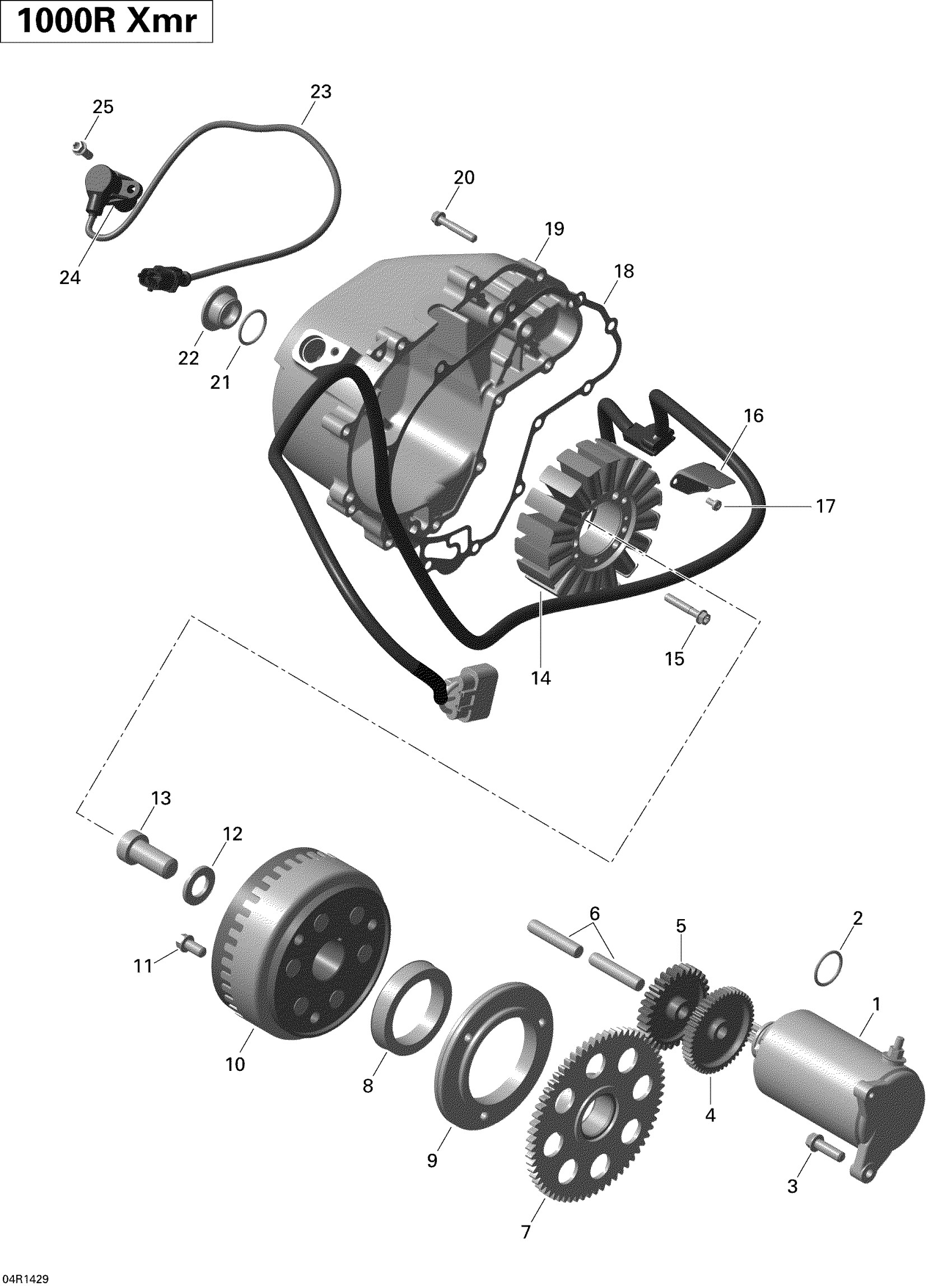

Can-Am Maverick 1000_XMR, 2014 03- Magneto And Electric Starter _04R1429 Diagram

Electric starter Ass'y

O-Ring

Torx Flange Screw M8 X 25

Starter Double Gear 11/49 T

Starter Intermediate Gear, 30 Teeth

Location Pin 10 M6x50

Free Wheel Gear, 64 Teeth | Includes 5a to 6

Sprag Clutch

Sparg Clutch Housing

Flywheel | With DPS, European Community, T3

Torx Flange Screw M8 X 16

Shim

Socket Head Screw M16 X 35

Stator Plate, 650W | XT, XTP

Torx Flange Screw M6 X 35

Interior Cable Support Ass'y

Phillips Screw M4 X 8

Gasket

Ignition Cover

Torx Flange Screw M6 X 35

O-Ring

Plug Screw M24X 1.5

Crankshaft Position Sensor Ass'y | Includes 10 to 11

O-Ring

Torx Flange Screw M6 X 16
