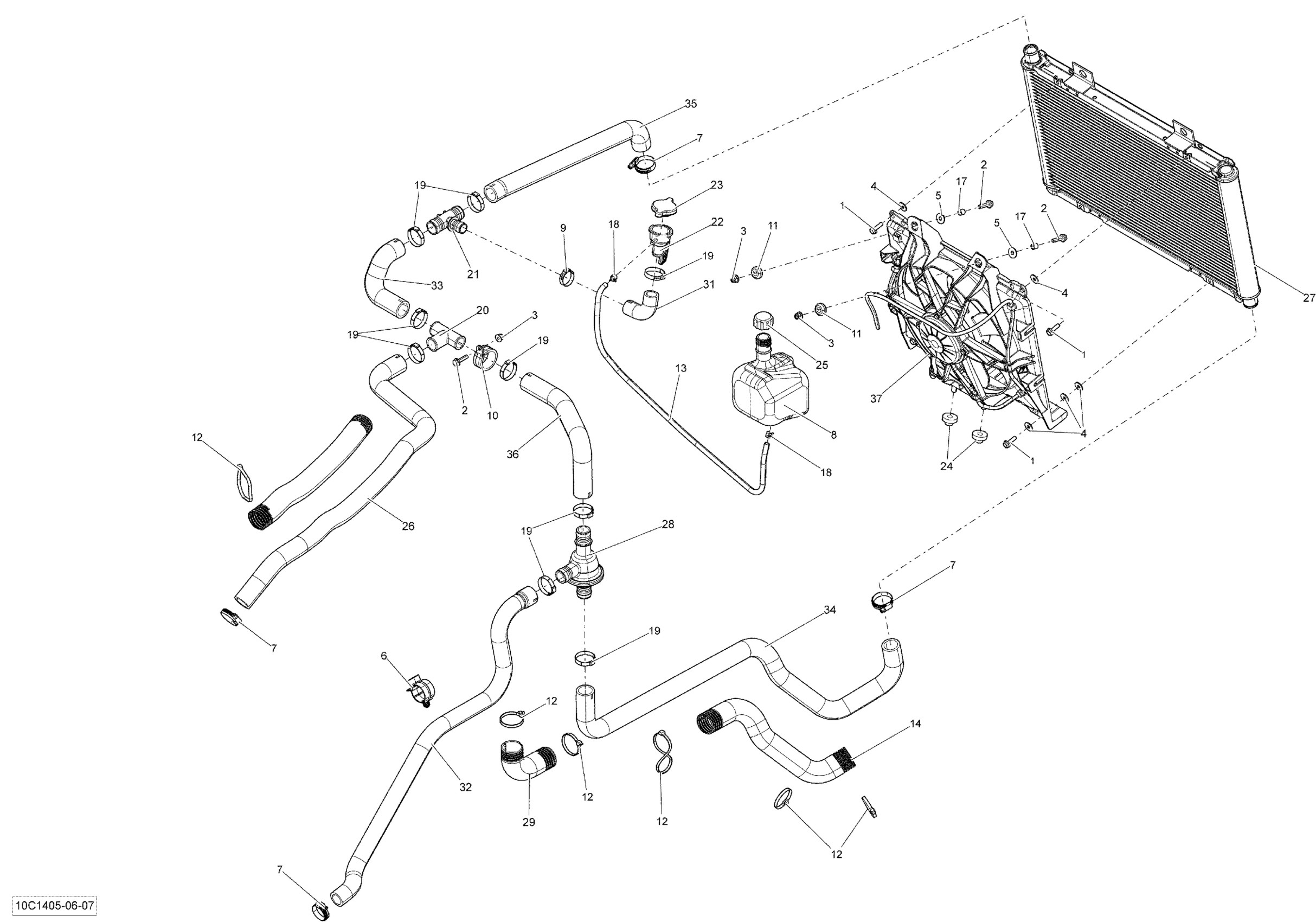

Can-Am Maverick 1000_XMR, 2014 01- Cooling System _10C1406 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 20

207662044

$2.00

2

Hex. Flange Screw M6 X 25

207662534

$2.11

3

Flange Elastic Nut M6

233261434

$4.44

4

Flat Washer 6 mm

234062410

$0.77

5

Flat Washer

250200082

$0.42

6

Retainer

275500590

$9.69

7

Norma Gear Clamp

293650098

$4.44

8

Coolant Tank Ass'y

709200624

$27.99

9

Crimp Clamp

293650099

$4.29

10

Hose Retainer

293650218

$9.39

11

Grommet

709000582

$4.69

12

Tie Wrap 368 mm

293750008

$1.04

13

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

14

Tubing 35 MM 1000MM Long

219704428

$10.99

17

Bushing

293900105

$7.65

18

Spring Clamp

414554800

$0.88

19

Gear Clamp

509000162

$7.29

20

T-Fitting

509000219

$15.89

21

T-Fitting

509000372

$10.33

22

Filler Neck

709200179

$18.49

23

Radiator Pressure Cap

709200207

$25.49

24

Grommet

709200285

$9.69

25

Tank Cap

709200587

$5.40

26

Intermediate Hose

709200382

$28.49

27

Radiator

709200395

$370.99

28

Thermostat

709200406

$98.99

29

Tubing 35 MM 1000MM Long

219704428

$10.99

31

Filler Neck Hose

709200439

$10.99

32

Pump Hose

709200441

$39.99

33

Hose

709200443

$14.99

34

Radiator Inlet Hose

709200444

$65.49

35

Outlet Hose

709200445

$24.99

36

Hose

709200447

$22.49

37

Fan Ass'y

709200564

$244.99
