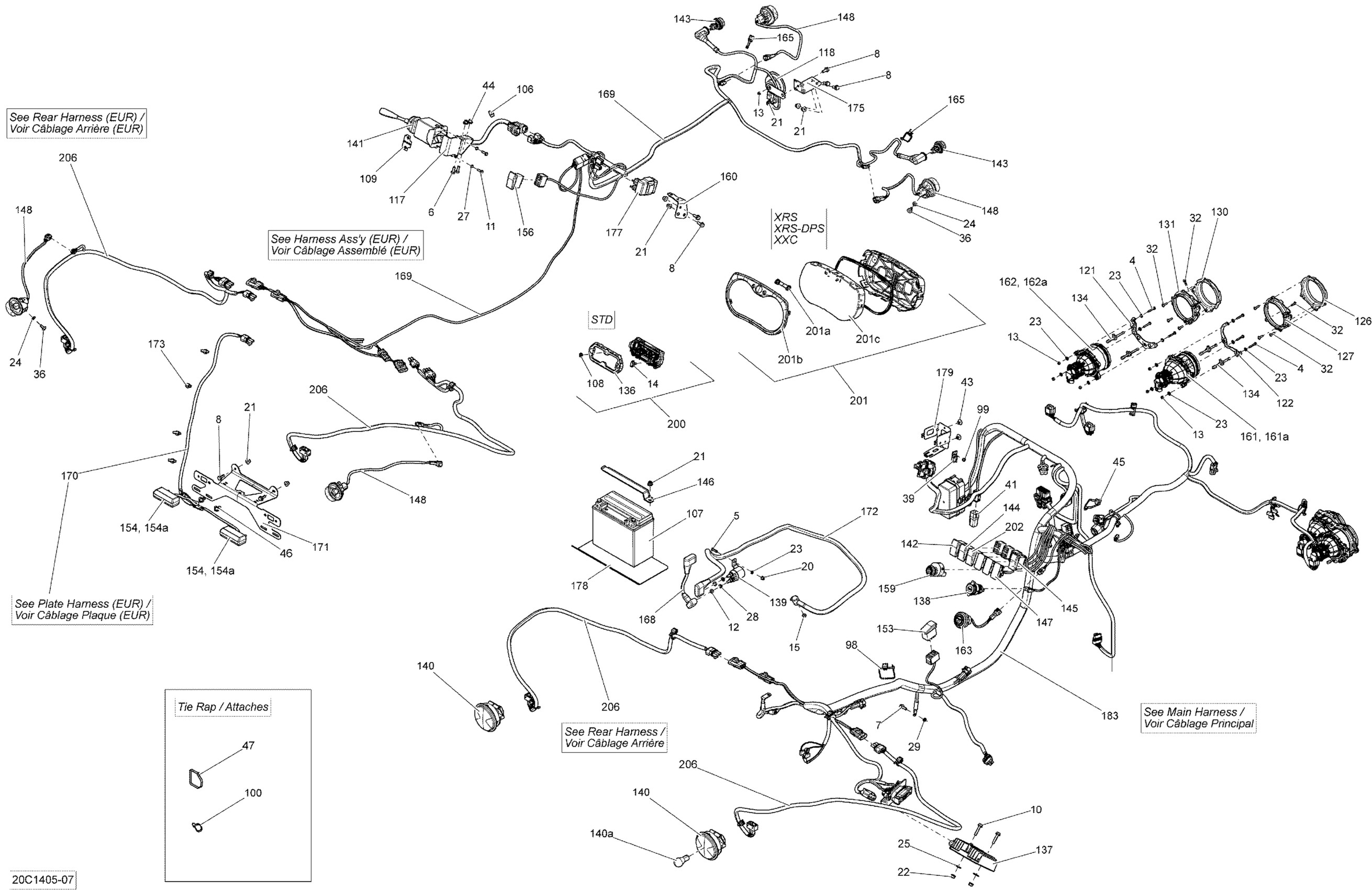

Can-Am Maverick 1000, STD, XRS, XRS-DPS, 2014 10- Electrical System Diagram

#

Description
Price

4

Hex. Screw M4 X 25

207142544

$2.00

5

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

6

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.87

7

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

8

Hex. Flange Screw M6 X 16

207661644

$0.74

10

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

11

Hex. Forming Screw M5 X 16

210251650

$1.15

12

Hex. Nut M6

232061600

$1.15

13

Elastic Stop Nut M4

232541414

$0.58

14

Button

715900265

$13.71

15

Elastic Stop Nut M6

232561414

$0.55

20

Hex. Flange Elastic Nut M5

233251414

$1.04

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

22

Hex. Flange Elastic Nut M6

233261494

$1.58

23

Flat Washer M5

234051410

$0.53

24

Flat Washer 6 mm

234061410

$1.36

25

Stainless Steel Flat Washer

234062670

$2.11

27

Lock Washer 5 mm | Europe

234151401

$0.55

28

Lock Washer Helical M6

234161601

$1.15

29

External Serrated Lock Washer 6 mm

234461608

$1.15

32

Phillips Screw K40 X 16

250000723

$0.98

36

Torx Truss M6X14

250000789

$5.39

39

Clip

270000141

$11.49

41

Diagnostic Connector

278002704

$19.49

43

Pop Rivet 3/16"

293150103

$0.55

44

Threaded Insert M6 X 1.0

250100242

Unavailable

45

Mount Dart

293730040

$1.04

46

Tie Wrap 142 mm

293750002

$1.25

47

Tie Wrap 368 mm

293750008

$1.04

98

Clip Tie-Rap

293750063

$8.75

99

Pop Rivet 3/16"

390402400

$0.35

100

Tie-Rap 180 mm

414115200

$0.11

106

Clip

414227300

$1.67

107

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

108

BRP Logo13 mm

704904615

$13.49

109

Flasher Decal | Europe

704902614

$19.99

117

Flasher Arm Support | Europe

709400810

$29.49

118

Horn

710004791

$38.99

121

RH High Light Support

710001115

$5.29

121

LH High Light Support

710001036

$5.29

122

RH Low Light Support

710001094

$9.09

122

LH Low Light Support

710001037

$9.09

126

RH Low Front Housing

710001081

$19.99

126

LH Low Front Housing

710001083

$19.99

127

RH Low Rear Housing

710001082

$12.99

127

LH Low Rear Housing

710001084

$12.99

130

RH High Front Housing

710001085

$19.99

130

LH High Front Housing

710001087

$19.99

131

RH High Rear Housing

710001086

$12.99

131

LH High Rear Housing

710001088

$12.99

134

Setting Screw

710001147

$12.71

136

Trim Ring Ass'y

710001183

$19.99

137

Voltage Regulator | XT, XTP, LTD

710001191

$185.49

138

DC Outlet

710001248

$37.99

139

Starter Relay

710007777

$48.49

140

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

140a

Bulb

520000758

$9.10

141

Turn Signal | Europe

710001721

$209.99

142

Hi/Low Switch | Except Europe

710001725

$21.49

143

Day Light | Europe

710001726

$35.99

144

4X4 Switch

710001737

$31.99

145

Switch DPS

710001781

$22.99

146

Battery Holder

710001916

$21.99

147

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

148

Flasher | Europe

710002047

$32.99

153

Switch, Over ride

710002053

$19.49

154

License Light

710002055

$58.49

154a

Bulb

219800128

$2.46

156

Switch Hazard | Europe

710002076

$19.49

159

Ignition Switch

710008400

$78.49

160

SUPPORT - Call your local BRP dealership | Europe

710002408

Unavailable

161

Low Beam Ass'y | Includes 1 to 2

710002524

$104.99

161a

Halogen Bulb

415129249

$41.49

162

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

162a

Halogen Bulb

415129249

$41.49

163

Engine Start Button

710002594

$60.49

165

Tie-Rap Clip

710002896

$4.39

168

CABLE-POSITIVE - Call your local BRP dealership

710004388

Unavailable

169

Harness Ass'y | Europe

710004346

$429.99

170

WIRING HARNESS ASSY - Call your local BRP dealership | Europe

710004687

Unavailable

171

LIGHT SUPPORT - Call your local BRP dealership | Europe

710003150

Unavailable

172

Cable Positif *Cable-Positive

710004389

$36.99

173

Dart Tie Rap 200MM

710003168

$7.09

175

SUPPORT - Call your local BRP dealership | Europe

710003170

Unavailable

177

Flasher Unit

710003239

$78.49

178

Heat Deflector

710003265

$16.49

179

Fuse Holder

710003335

$10.11

183

WIRING HARNESS ASSY - Call your local BRP dealership | Main Harness

710004342

Unavailable

200

Speedometer

710005087

$399.99

201

Multifunction Speedometer | XRS, XRS DPS

710004547

$439.99

201a

Speedometer Button | XTP

415129355

$15.80

201b

Gauge Ring

415129348

$13.99

201c

Lens | XTP

415129349

$24.49

202

Switch PPS Sport

710003541

$19.49

206

Rear Harness

710003680

$28.99

206

WIRING HARNESS REAR - Call your local BRP dealership | Europe

710003681

Unavailable
