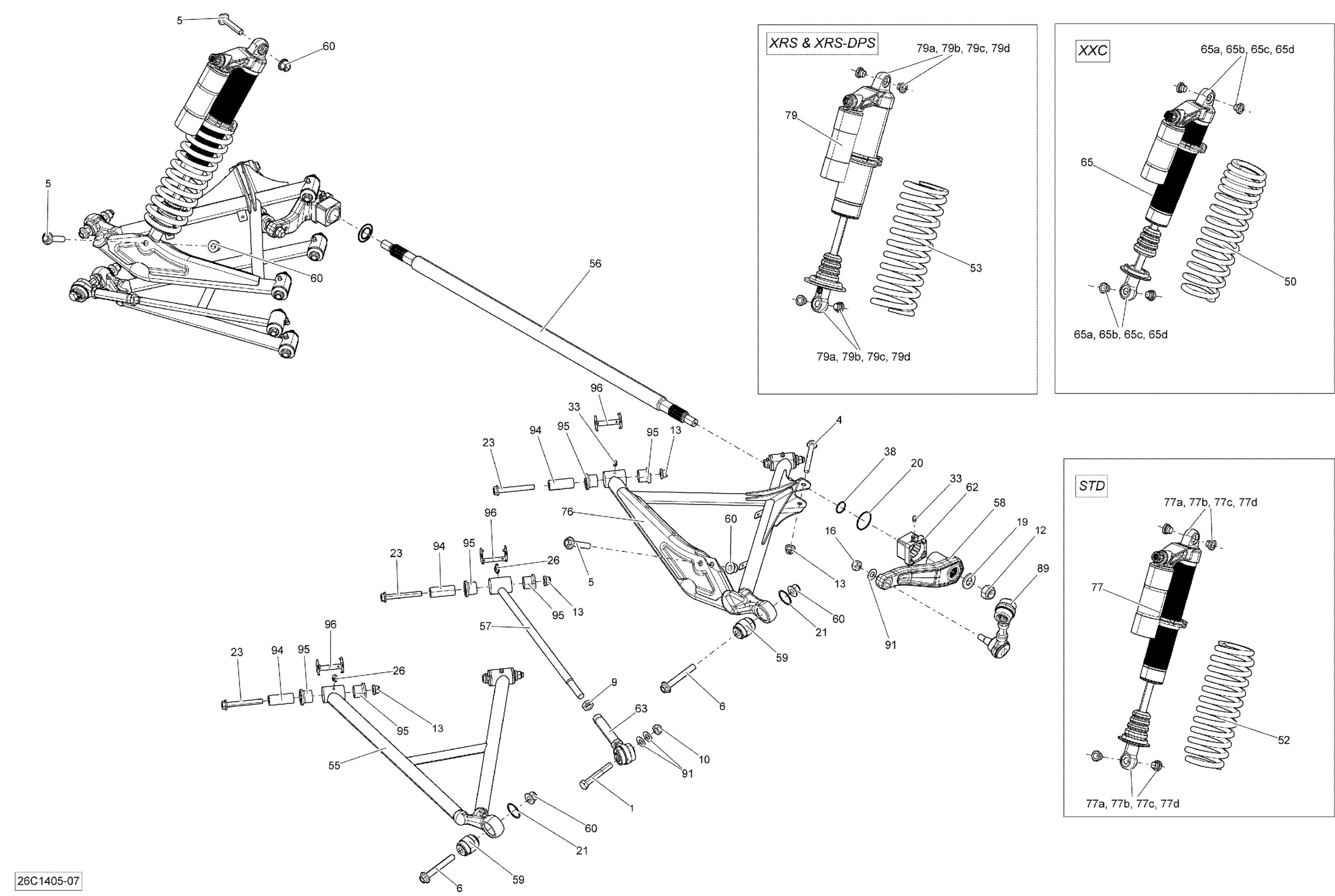

Can-Am Maverick 1000, STD, XRS, XRS-DPS, 2014 08- Rear Suspension Diagram

#

Description
Price

1

Hex. Screw M12 X 80

207028046

$3.91

4

Hex. Flange Screw M10 X 70

207607046

$2.96

5

Hex. Flange Screw M12 X 60

207626046

$7.41

6

Hex. Flange Screw M12 X 85

207628546

$6.77

9

LH Hex. Lock Nut M14

232175411

$6.67

10

Elastic Stop Nut M12

232521416

$1.69

12

Elastic Stop Nut M18

232591414

$4.39

13

Hex. Flange Elastic Nut M10

233201436

$2.11

16

Hex. Flange Elastic Nut M12

250000047

$1.90

19

Washer

250200045

$7.73

20

O-Ring

293300100

$5.72

21

Retaining Ring

293370093

$7.59

23

Hex Flange Screw M10 X 80

207608046

$6.69

26

Grease Fitting 90°

293550056

$1.15

33

Grease Fitting

408200700

$3.49

38

Retaining Ring

706000251

$6.35

50

Not Available As Spare Parts

XXX

Unavailable

52

WHITE REAR SPRING - Call your local BRP dealership | Model-STD White

706001588

Unavailable

52

YELLOW REAR SPRING - Call your local BRP dealership | STD

706001241

Unavailable

53

YELLOW REAR SPRING - Call your local BRP dealership | X

706001313

Unavailable

53

RED REAR SPRING - Call your local BRP dealership | Model-XRS White

706001585

Unavailable

55

Black LH Rear Lower Arm

706001354

$201.49

55

Black RH Rear Lower Arm

706001355

$201.49

56

Sway Bar

706001356

$185.49

57

Rear Coupling Bar

706001357

$48.99

58

Sway Bar Lever

706001371

$169.99

59

Radial Joint

706001373

$52.99

60

Elastic Flange Nut M12

233221416

$2.85

62

Sway Bar Housing

706001402

$15.49

63

LH Ball Joint

706001438

$54.99

65

Not Available As Spare Parts

XXX

Unavailable

76

Black LH Rear Upper Arm | Model-STD

706002091

$201.49

76

Black RH Rear Upper Arm | Model-STD

706002092

$201.49

76

YELLOW LH REAR UPPER ARM - Call your local BRP dealership | Model-XRS Black

706002093

Unavailable

76

YELLOW RH REAR UPPER ARM - Call your local BRP dealership | Model-XRS Black

706002094

Unavailable

76

RED LH REAR UPPER ARM - Call your local BRP dealership | Model-XRS White

706002095

Unavailable

76

Red RH Rear Upper Arm | Model-XRS White

706002096

$201.49

77

Rear Shocks | Model-STD, Includes 77a To 77d

706001642

Unavailable

79

REAR SHOCKS - Call your local BRP dealership | Model-XRS, XRS-DPS, Includes 79a To 79d

706001645

Unavailable

89

LH Double Ball Joint

706001741

$102.99

89

RH Double Ball Joint

706001742

$102.99

91

Hardened Washer

706200281

$2.85

94

Sleeve

706201590

$11.99

95

Suspension Arm Bushing

706204409

$9.10

96

Wear Plate

706201660

$0.95

65a

Not Available As Spare Parts

XXX

Unavailable

65b

Not Available As Spare Parts

XXX

Unavailable

65c

Not Available As Spare Parts

XXX

Unavailable

65d

Not Available As Spare Parts

XXX

Unavailable

77a

Internal Bushing

715900267

$26.49

77b

Spherical Bearing

715900266

$82.99

77c

O-Ring Bushing

715900268

$14.75

77d

Retaining Ring

715900252

$12.49

79a

Internal Bushing

715900267

$26.49

79b

Spherical Bearing

715900266

$82.99

79c

O-Ring Bushing

715900268

$14.75

79d

Retaining Ring

715900252

$12.49
