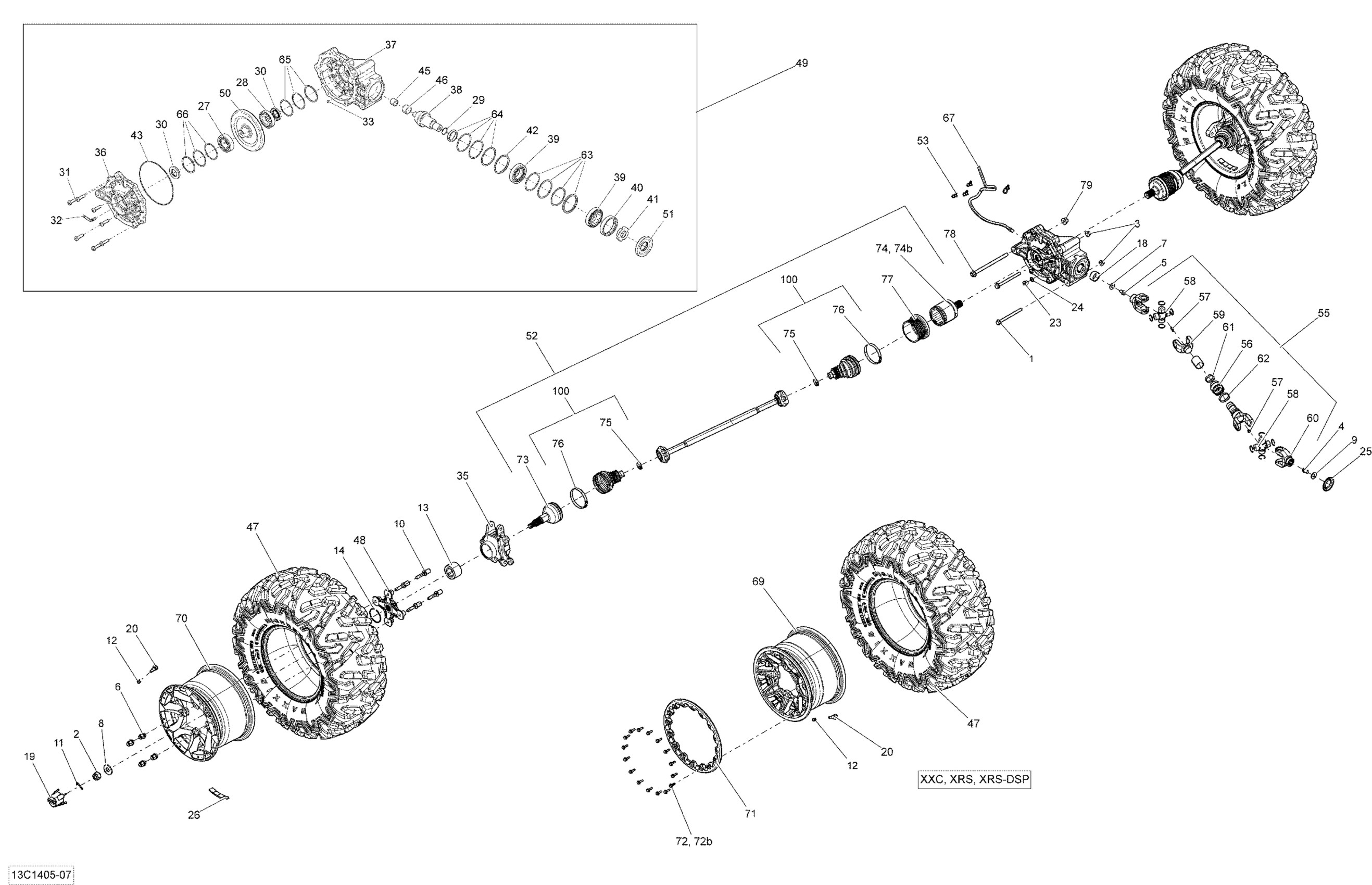

Can-Am Maverick 1000, STD, XRS, XRS-DPS, 2014 08- Drive System, Rear Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 125

230602546

$7.41

2

Hex. Flange Castellated Nut M18

232291413

$7.98

3

Hex. Flange Elastic Nut M10

233201436

$2.11

4

Hex Flange Screw M12 X 16

250001039

$2.11

5

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

6

Black, Wheel Nut M10 X 1.25

250100184

$4.51

7

Flat Washer M10 | 4X4

250200014

$1.49

8

Conical Spring Washer M18

250200171

$7.65

9

Flat Washer M12

250200102

$2.11

10

Wheel Stud

250300060

$11.49

11

Cotter Pin

250400036

$2.11

12

Valve Cap

293000110

$1.59

13

Ball Bearing

293350150

$52.99

14

Circlip

293370019

$4.68

18

Wear Ring | 4X4

705400036

$26.49

19

Wheel Cap

705400928

$10.49

20

Rim Valve With Cap

705400193

$8.69

23

Fill Level Plug | 4X4

705500504

$10.01

24

Copper Washer | 4X4

705500506

$0.45

25

Protector

705501123

$7.55

26

1/2 Oz Weight

219704465

$3.89

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

O-Ring

705501554

$5.03

30

Oil Seal

705501556

$17.99

31

Bolt

705501562

$5.00

32

Breather Tube

705501584

$14.99

33

Plug Drain

705501724

$5.95

35

LH Rear Knuckle

705501730

$185.49

35

RH Rear Knuckle

705501731

$195.99

36

REAR COVER - Call your local BRP dealership

705501735

Unavailable

37

PINION COVER - Call your local BRP dealership

705501736

Unavailable

38

Pinion Kit

703500867

$429.99

39

Not Available As Spare Part - Friction Washer

Unavailable

40

NUT - Call your local BRP dealership

705501740

Unavailable

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Not Available As Spare Part - Friction Washer

Unavailable

43

Oil Seal

705501749

$9.27

45

Not Available As Spare Part - Friction Washer

Unavailable

46

Needle Bearing

703500840

$62.49

47

Rear Tire 27X11X12 | X

705502938

$254.49

47

Rear Tire | X Model Europe

705501818

$254.49

48

Wheel Hub

705501900

$132.49

49

Final Drive Unit | Includes 30 to 30m

705502275

$1,268.49

50

GEAR 36 TEETH KIT - Call your local BRP dealership

703500837

Unavailable

51

Oil Seal

705502276

$15.34

52

Half Shaft | Includes 230 to 230e

705502356

$243.99

52

Not Available As Spare Parts

XXX

Unavailable

53

Dart Tie Rap 200MM

710003168

$7.09

55

Shaft Ass'y Kit | Includes 10 to 10g

703500994

$307.49

56

Rubber Boot

715900118

$14.30

57

Grease Fitting

715900184

$5.24

58

Universal Joint Ass'y | T3

703500846

$59.49

59

Joint

715900271

$24.99

60

Joint

715900272

$24.99

61

Oetiker Gear Clamp 36.1MM

509000045

$8.29

62

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

63

Differential Shim Kit

703500839

$51.99

64

Differential Shim Kit

703500839

$51.99

65

Differential Shim Kit

703500839

$51.99

66

Differential Shim Kit

703500839

$51.99

67

Polyurethane Hose 10000Mm Long

219704410

$56.99

69

Black, Rim | XXC

705502244

$265.99

70

Deep Black, 12 Inch Rim X 7,5 | STD

705501853

$206.49

71

Yellow Reinforcement Disc

705401329

$85.99

71

Red Reinforcement Disc | XRS-DPS White, Except EUR

705401445

$85.99

72

Hex. Flange Screw M6 X 25

250000787

$2.22

72b

Insert | XXC

293450317

$7.29

73

CV JOINT - Call your local BRP dealership

715900393

Unavailable

74

Plunging Joint

705501865

$259.49

74b

Circlip

705501781

$6.50

75

Oetiker Clamp, 27.3 mm

715900242

$10.33

76

Oetiker Clamp, 82.1 mm

715900241

$10.33

77

HEAT DISSIPATOR - Call your local BRP dealership

705501841

Unavailable

78

Hex. Flange Screw M12 X 190

230629087

$19.99

79

Elastic Flange Nut M12

233221416

$2.85

100

Boot Kit

705501864

$42.49
