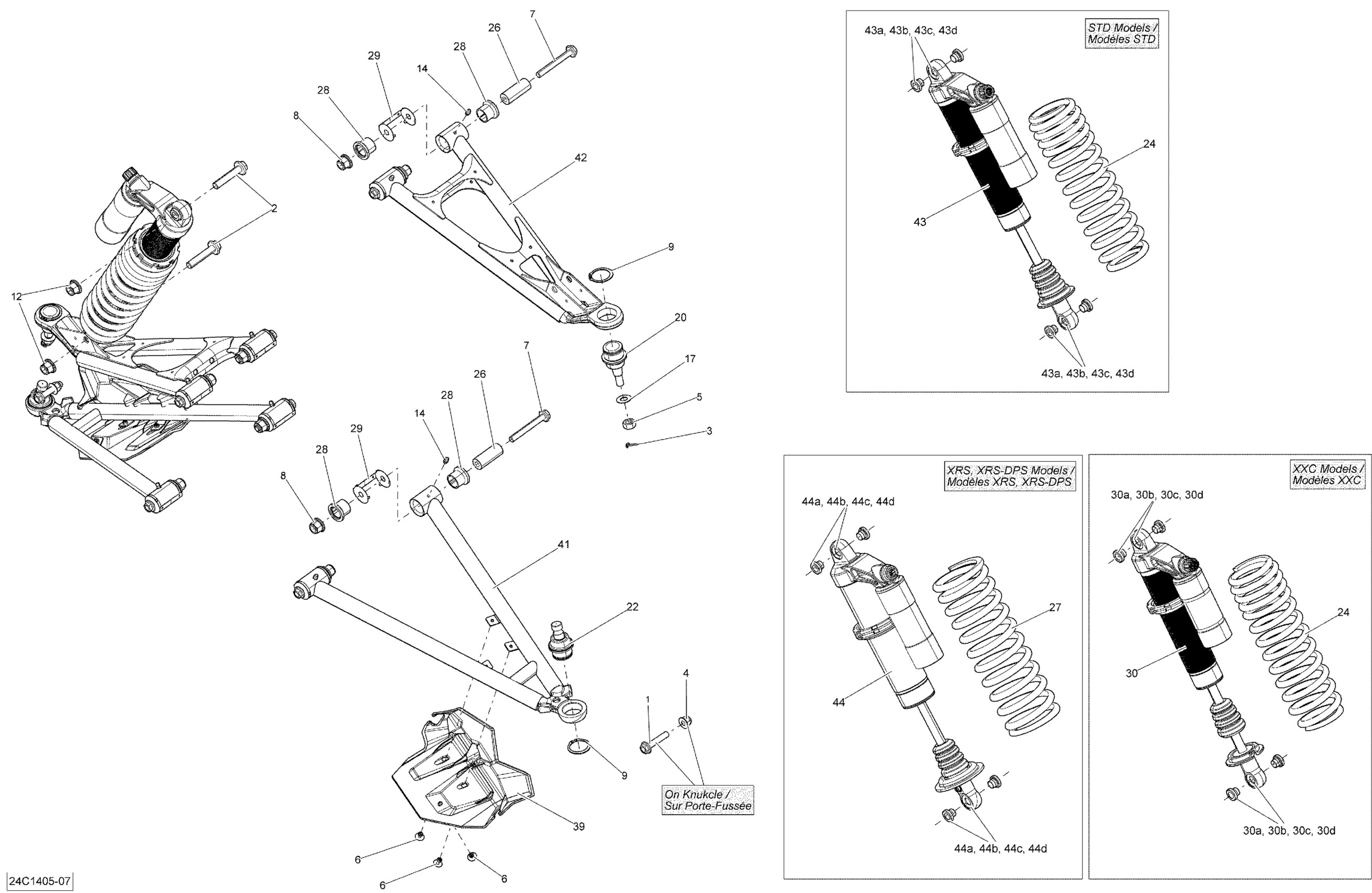

Can-Am Maverick 1000, STD, XRS, XRS-DPS, 2014 07- Front Suspension Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 50

207605044

$5.29

2

Hex. Flange Screw M12 X 60

207626046

$7.41

3

Cotter Pin

211400017

$0.33

4

Hex. Flange Elastic Nut M10

233201414

$1.58

5

Nut M12

250100099

$2.09

6

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

7

Hex Flange Screw M10 X 80

207608046

$6.69

8

Hex. Flange Elastic Nut M10

233201436

$2.11

9

Circlip

293370035

$2.64

12

Elastic Flange Nut M12

233221416

$2.85

14

Grease Fitting

408200700

$3.49

17

Hardened Washer

706200281

$2.85

20

Ball Joint

706202044

$35.99

22

Ball Joint

706202045

$35.99

24

WHITE FRONT SPRING - Call your local BRP dealership | Model-STD White

706201820

Unavailable

24

YELLOW FRONT SPRING - Call your local BRP dealership | STD

706201580

Unavailable

26

Sleeve

706201590

$11.99

27

RED FRONT SPRING - Call your local BRP dealership | Model-XRS White, XRS-DPS White

706201822

Unavailable

27

YELLOW FRONT SPRING - Call your local BRP dealership | X

706201600

Unavailable

28

Suspension Arm Bushing

706204409

$9.10

29

Wear Plate

706201660

$0.95

30

Not Available As Spare Parts

XXX

Unavailable

30a

Not Available As Spare Parts

XXX

Unavailable

30b

Not Available As Spare Parts

XXX

Unavailable

30c

Not Available As Spare Parts

XXX

Unavailable

30d

Not Available As Spare Parts

XXX

Unavailable

39

LH Joint Protector

706202808

$9.90

39

RH Joint Protector

706202809

$9.90

41

LH Front Lower Arm

706201861

$201.49

41

RH Front Lower Arm

706201862

$201.49

42

Black Front Upper Arm | Model-STD

706202086

$201.49

42

YELLOW FRONT UPPER ARM - Call your local BRP dealership | Model-XRS Black, XRP-DPS Black

706202090

Unavailable

42

RED FRONT UPPER ARM - Call your local BRP dealership | Model-XRS White, XRS-DPS White

706202091

Unavailable

43

FRONT SHOCK - Call your local BRP dealership | Includes 43a To 43d

706201897

Unavailable

43a

Internal Bushing

715900267

$26.49

43b

Spherical Bearing

715900266

$82.99

43c

O-Ring Bushing

715900268

$14.75

43d

Retaining Ring

715900252

$12.49

44

Front Shock | Includes 44a To 44d

706201900

$919.99

44a

Internal Bushing

715900267

$26.49

44b

Spherical Bearing

715900266

$82.99

44c

O-Ring Bushing

715900268

$14.75

44d

Retaining Ring

715900252

$12.49
